FREQX22/20/10/-10+60/SR/120R datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FREQX22/20/10/-10+60/SR/120R

FREQX22/20/10/-10+60/SR/120R: DescriptionSeries - Fundamental Quartz Crystal, 16MHz Min, 21MHz Max, ROHS COMPLIANT, ULTRA-MINIATURE, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size109KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

FREQX22/20/10/-10+60/SR/120R Overview

Series - Fundamental Quartz Crystal, 16MHz Min, 21MHz Max, ROHS COMPLIANT, ULTRA-MINIATURE, SMD, 4 PIN

FREQX22/20/10/-10+60/SR/120R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, ULTRA-MINIATURE, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	2 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.001%
frequency tolerance	20 ppm
Installation features	SURFACE MOUNT
Maximum operating frequency	21 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L2.0XB2.5XH0.6 (mm)/L0.079XB0.098XH0.024 (inch)
Series resistance	120 Ω
surface mount	YES
Base Number Matches	1

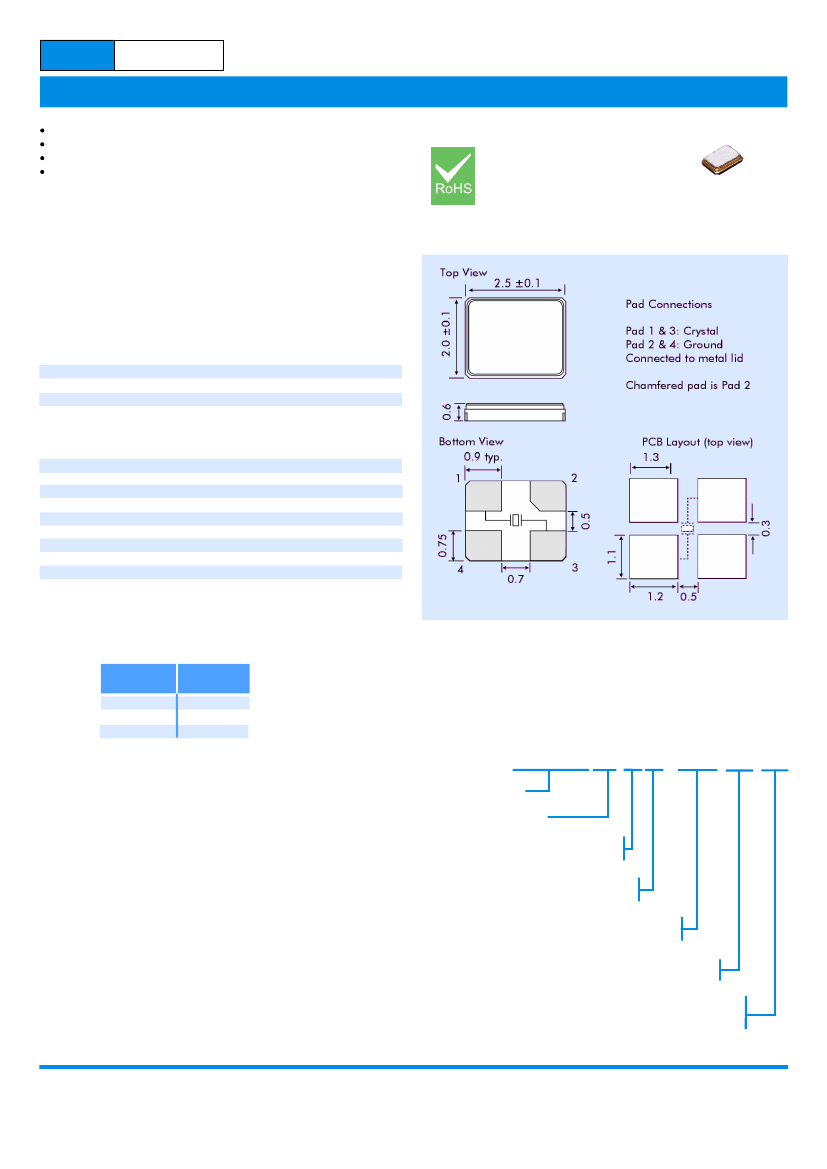

Preview

Download Datasheet

View All

EURO

QUARTZ

2.5 x 2.0 x 0.6mm SMD

Frequency range 16MHz to 60MHz, fundamental mode

Ultra-miniature package 2.5 x 2.0 x 0.6mm

Packaged in standard EIA tape and reel

Ideal for PDAs, hand-held GPS, PCMCIA etc.

DESCRIPTION

X22 crystals are ultra-miniature AT-cut crystals covering the frequency

range 16MHz to 54MHz in fundamental mode. Their small size and low

mass makes these crystals ideal for miniaturized hand-held equipment

and similar high-density applications.

OUTLINE & DIMENSIONS

X22 CRYSTALS

16.0MHz to 60MHz

SPECIFICATION

Frequency Range

AT-Cut Fundamental:

Calibration Tolerance at 25ºC:

Frequency stability

-10° to +60°C

-20° to +70°C

-40° to +85°C

Storage Temperature:

Equivalent Series Resistance:

Shunt Capacitance (C0):

Load Capacitance (CL):

Ageing:

Drive level:

Reflow Soldering:

Packaging:

16.0MHz to 60.0MHz

±10ppm, ±20ppm, ±30ppm

from ±10ppm (±5ppm available)

from ±10ppm

from ±15ppm

-50°~+105°C

See table

2pF to 4pF typical, 5pF maximum

Series or from 9pF to 32pF

<±2ppm per year at +25°C

50 microWatt, 100 microW max.

10s maximum at 260°C twice

or 180s at 230°C, once.

EIA tape and reel

EQUIVALENT SERIES RESISTANCE

Frequency

Range MHz

16.0~21.0

21.0~26.0

26.1~60.0

ESR

Ω Max.

120

PART NUMBER GENERATION

Part numbers for X22 crystals are generated as follows:

Example:

20.000MHz X22/10/30/-10+60/12pF/80R

Nominal Frequency

Package

Calibration tolerance

at 25°C (±ppm)

Temperature Stability

over temp. range (±ppm)

Operating Temp. Range (°C)

(Lower and upper limits)

Load Capacitance

(Either SR for series or CL in pF)

Equivalent Series Resistance

(Optional - use when special

value is required)

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
