MAAM-007866-0P1R00
Broadband Driver Amplifier
50 to 3300 MHz
Features
•
High Gain: 27 dB (TYP.)
•
Flat Broadband Gain Response: +/- 1.2 dB (TYP)
•
P1dB: +23.0 dBm (TYP.)
•
Flexibility for Multi-Band Systems
•
On-Chip Active Bias Network
•
Lead Free 3 mm PQFN Surface Mount Package
•
260
o
C Reflow Capability
Rev. V1

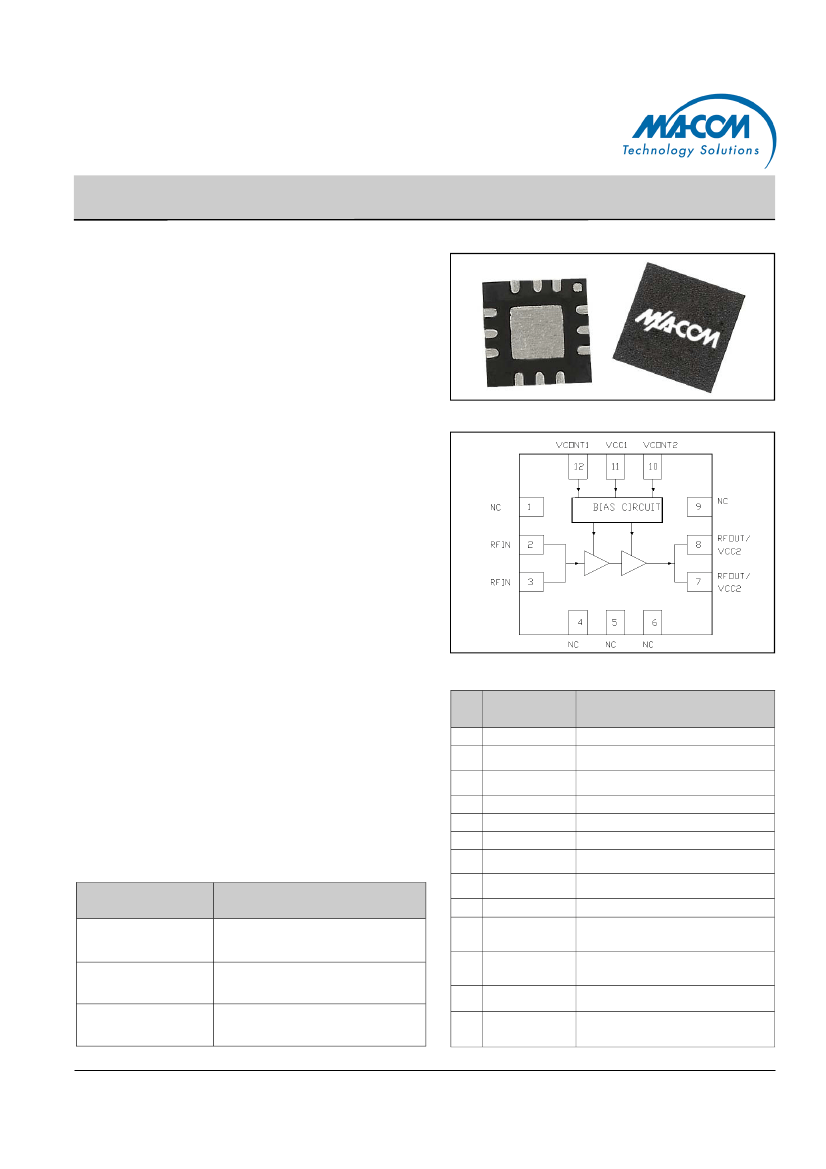

Product Image
Functional Block Diagram
Applications
•
LO Buffer Amplifier
•
Driver Stage for Power Amplifiers
•
Basestation / Repeater Applications
•
Broadband RF Gain Block
Description
M/A-COM’s MAAM-007866-0P1R00 amplifier utilizes GaAs HBT
technology with an +18 Volt BVceo process for improved linearity
performance, power efficiency, and high reliability, in a low cost
3 mm PQFN surface mount plastic package.
The MAAM-007866-0P1R00 incorporates an on-chip active bias
network for ease of implementation, and maintains high linearity
over temperature. This 2 stage high gain design operates from a
single +5 volt supply and has a +5 volt reference pin for power
down control capability
The MAAM-007866-0P1R00 requires a minimal number of external
components to achieve a flat gain response across the entire 50 to
3300 MHz frequency band.
Pin Configuration
Pin
No.
1
2
3
4
5
6
Function
No Connection
RF Input
RF Input
No connection
Description
RF Input Signal. External circuit required for
optimum performance
RF Input Signal. External circuit required for
optimum performance
No Connection or GND No Connection. GND preferred
No Connection or GND No Connection. GND preferred
No Connection or GND No Connection. GND preferred
RF Output / VCC2
RF Output / VCC2
No Connection
VCONT2
VCC1
VCONT1
GND
RF Output & 2nd Stage VCC Supply Input
External circuit required for optimum performance
RF Output & 2nd Stage VCC Supply Input
External circuit required for optimum performance
No Connection
DC Control Input to 2nd Stage Bias circuit.
External resistor required for normal operation @ 5V.
Can be combined with VCONT1.
VCC Supply to 1st Stage. Bypass Capacitor value &
location is critical.
Must be as close to the pin as
possible. See Eval Board Layout.
DC Control Input to 1st Stage Bias circuit.
See application circuit.
RF/DC GND and thermal Path to PCB Vias.
Sufficient Vias must be provided for thermal
considerations. See PCB Layout
Ordering Information
1
Part Number
MAAM-007866-0P1R00
7
8
Package
3 mm 12 lead PQFN
9
10
11
MAAM-007866-0P1RA1
Sample Application Kit
12
MAAM-007866-0P1RTR
1000 Piece Tape & Reel
Pkg
Base
1
1. Reference Application Note M513 for reel size information.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-007866-0P1R00
Broadband Driver Amplifier
50 to 3300 MHz
Electrical Specifications
1
: Tc= +25 C, VCONT= 5 V, VCC = 5 V, Z
0
= 50
Ω,
CW
Parameter
Frequency Range
Gain
Gain Flatness
Gain Variation
Input Return Loss
Output Return Loss
Reverse Isolation
Output P-1dB
Over Temp = - 40 to +85
0
C
Over Frequency
Over Frequency
Over Frequency
50 to 1000 MHz
1250 to 2750 MHz
3000 to 3300 MHz
Output IP3
Pout = +4 dBm/tone,
∆f
= 1MHz
50 to 1000 MHz
1250 to 2500 MHz
2750 to 3000 MHz
Bias Supply
Control Voltage
Bias Current
Thermal Resistance
θ
jc
Junction Temperature Rise Above Case T
jc
1.
2.
All data is based on the Evaluation Circuit Board (page 5),
attached to a metal heat sink block.
Caution: Operation beyond Absolute Maximum Ratings can
degrade performance or cause permanent damage.
o
Rev. V1
Test Conditions
Units
MHz
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
V
V
V
mA
mA
o
Min
50
Typ
27
+/-1.2
2.5
Max
3300
-16
-10
-41
22.7
23.4
22
36.5
35
34
5
5
155
9
TBD
TBD
6
5.5
2
170
12
VCC
VCONT
VCONT
Amp ON
Amp OFF
Quiescent Current Iccq
Control current Icont
C/W
o
C
Absolute Maximum Ratings
2
Parameter
RF Input Power
Absolute Maximum
+ 2 dBm
+6V
+ 5.5 V
175 mA
-40
0
C to + 85
0
C
-65
0
C to +150
0
C
150 C
o
Operating the MAAM-007866-0P1R00
The MAAM-007866-0P1R00 can be damaged by electrostatic
discharge (ESD). Use proper ESD control techniques when
handling this device. To operate the MAAM-007866-0P1R00,
follow these steps:
1.) Connect the 50 ohm load
2.) Apply VCC (+5.0 Vdc)
3.) Apply VCONT (+5.0 Vdc)
4.) Set the Input Power Level (P
in
)
5.) Turn off in reverse order
2
Supply Voltage VCC
Control Voltage VCONT
VCC Supply Current
Operating Temperature
Storage Temperature
Device Junction Temperature T
J
, max
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-007866-0P1R00
Broadband Driver Amplifier
50 to 3300 MHz

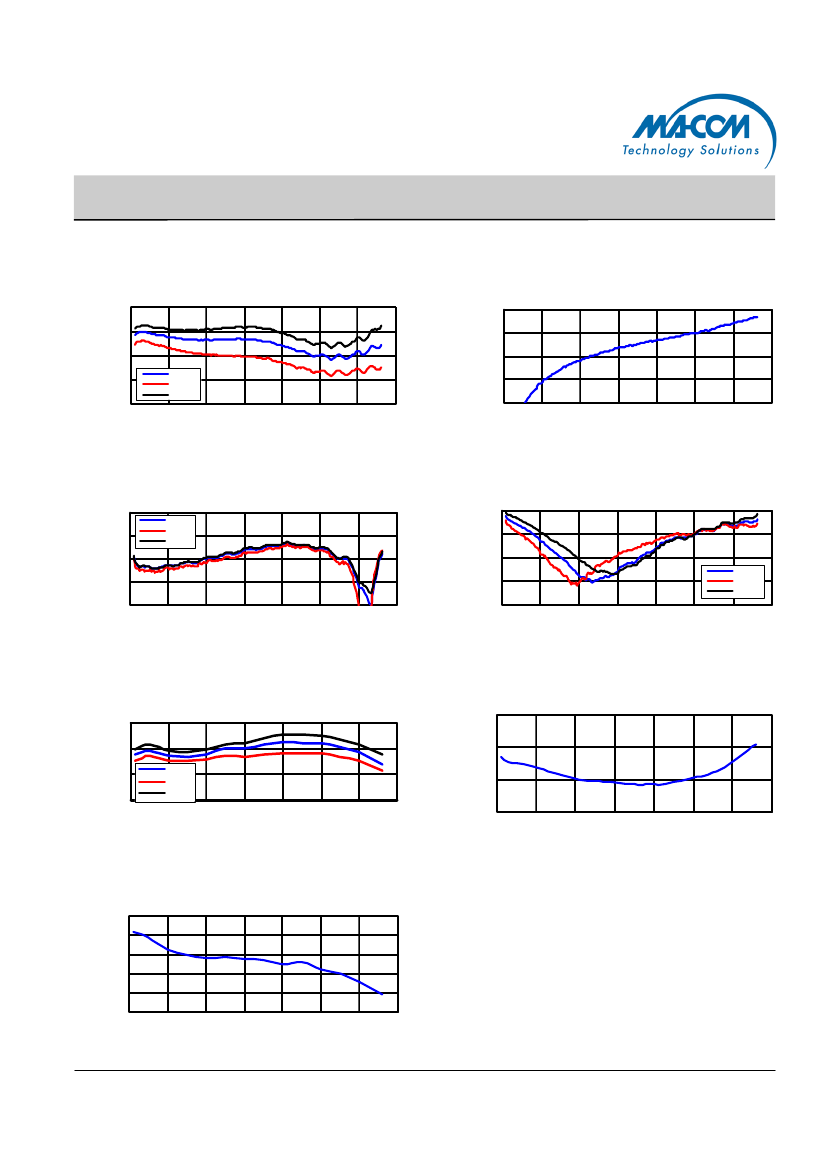

Typical Performance Curves at +25°C
(VCONT = +5V, 9 mA, VCC = +5 V, 155 mA)
Gain vs Frequency
30
Gain (dB)
Gain (dB)
Rev. V1
Isolation vs Frequency
-40
Isolation (dB)
Isolation (dB)
28
26
24
22
0
+ 25 C
+ 85 C
- 40 C
-45
-50
-55
-60
0
0.5
1
1.5
2
2.5
3
3.5
0.5
1
1.5
2
2.5
3
3.5
Frequency (GHz)
Frequency (GHz)
Input Return Loss vs Frequency
Return Loss (dB)
Output Return Loss (dB)
Output Return Loss vs Frequency
-10
-15
-20
-25
-30
0
0.5
1
1.5
2
2.5
3
3.5
Frequency (GHz)
+ 25 C
+ 85 C
- 40 C
Input
Return Loss (dB)
(dB)
Return Loss
-10
-15
-20
-25
-30
0
+ 25 C
+ 85 C
- 40 C
0.5
1
1.5
2
2.5
3
3.5
Frequency (GHz)
Output P-1dB vs Frequency
Noise Figure
(dB)
Noise Figure
(dB
Noise Figure vs Frequency
10
8
6
4
0
0.5
1
1.5
2
2.5
3
3.5
Frequency (GHz)
25
P1dB (dBm)
23
21
19
0
+ 25 C
+ 85 C
- 40 C
0.5
1
1.5
2
2.5
3
3.5
Frequency (GHz)
Output IP3 vs Frequency
Output
IP3 (dBm
Output
IP3 (dBm)
40
38
36
34
32
30
0
0.5
1
1.5
2
2.5
3
3.5
Frequency (GHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-007866-0P1R00
Broadband Driver Amplifier
50 to 3300 MHz

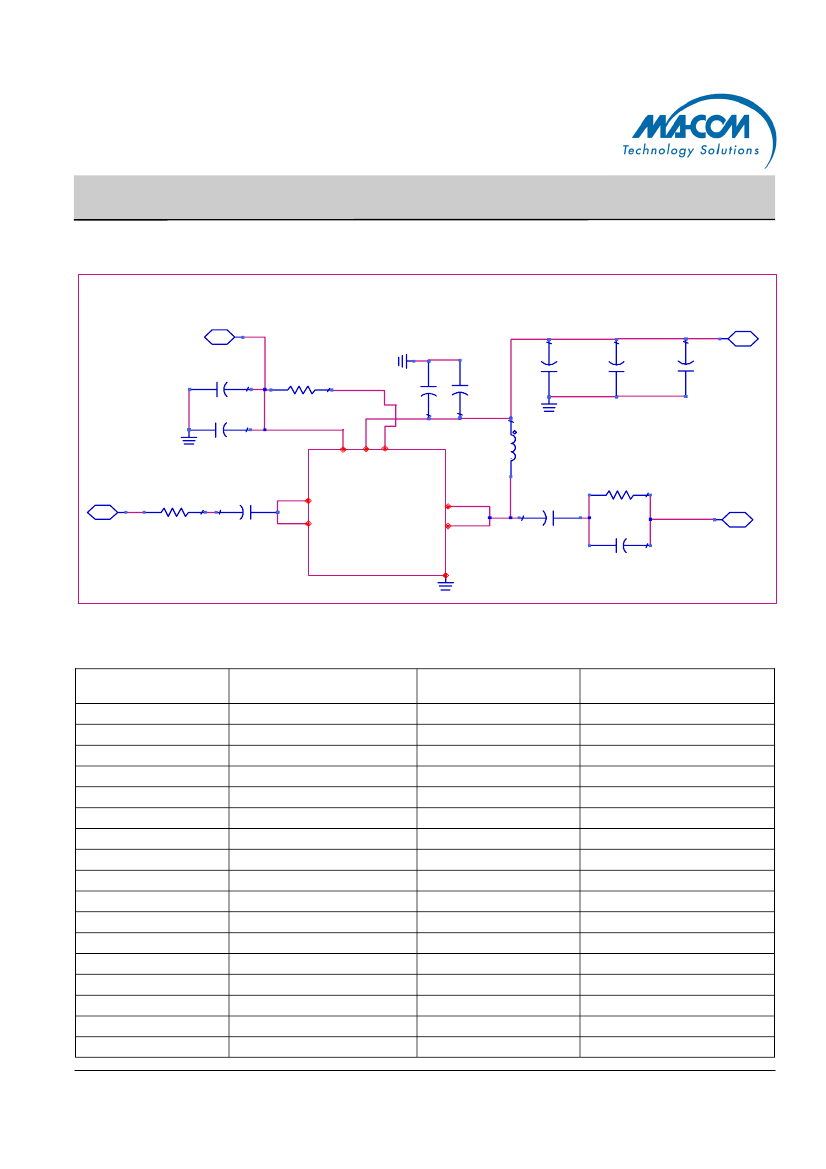

Application Circuit Schematic
APPLICATION CIRCUIT SCHEMATIC
Vcont = + 5 V ( ON)
Vcont = < 2 V ( OFF)
Icont = 9 mA nom.
VCONT
C8
C=1000 pF
C7
C=0.01 uF
C6
C=100 pF
12
11
10
Rev. V1
VCC= +5V , nom., 6V, max.
Iccq= 157 mA, nom.
VCC
C3
C=100 pF
C4
C=1000 pF
C5
C=0.1 uF
R1
R=150 Ohm
C9
C=0.1 uF
VCC1
VCONT1
VCONT2
L1
L=180 nH
R=
NC
RFO2
RFO1
9
8
7
C2
C=0.01 uF
1
2
C1
C=0.01 uF
3
NC
RFIN1
RFIN2
R3
R=7.5 Ohm
3mm QFN
12-L PKG
RFIN
R2
R=10 Ohm
C10
C=10 pF
RFOUT
NC
NC
5
Evaluation Circuit Board Bill of Material
COMPONENT
C10
C3
C6
C5
C4
C8
C9
C1, C2
C7
L1
R1
R2
R3
J1,J2
J3
U1
PCB
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
PART NO
NPO0402HTTP100J
NPO0603HTTD101J
NPO0402HTTP101J
X7R0603CTTD104K
X7R0603HTTD102K
X7R0402HTTP102K
X7R0402CTTP104K
X7R0603HTTD103K
X7R0402CTTP103K
0603CS-R18XJBU
RK73B1JTTD151J(0603)
RK73B1JTTD100J(0603)
RK73B1ETTP7R5J(0402)
142-0701-881
TSM-105-01-S-DV
MAAM-007866-0P1R00
1000028554-2
4
6
NC
VALUE
10pF
100pF
100pF
0.1uF
1000pF
1000pF
0.1uF
0.01uF
0.01uF
180nH
150 OHM
10 ohm
7.5 ohm
RF CONN
DC CONN
3mm PQFN 12L
GETEK, 28mil
SUGGESTED VENDOR
KOA
KOA
KOA
KOA
KOA
KOA
KOA
KOA
KOA
COILCRAFT
KOA
KOA
KOA
JOHNSON
TYCO
TYCO
MAAM-007866-0P1R00
Broadband Driver Amplifier
50 to 3300 MHz

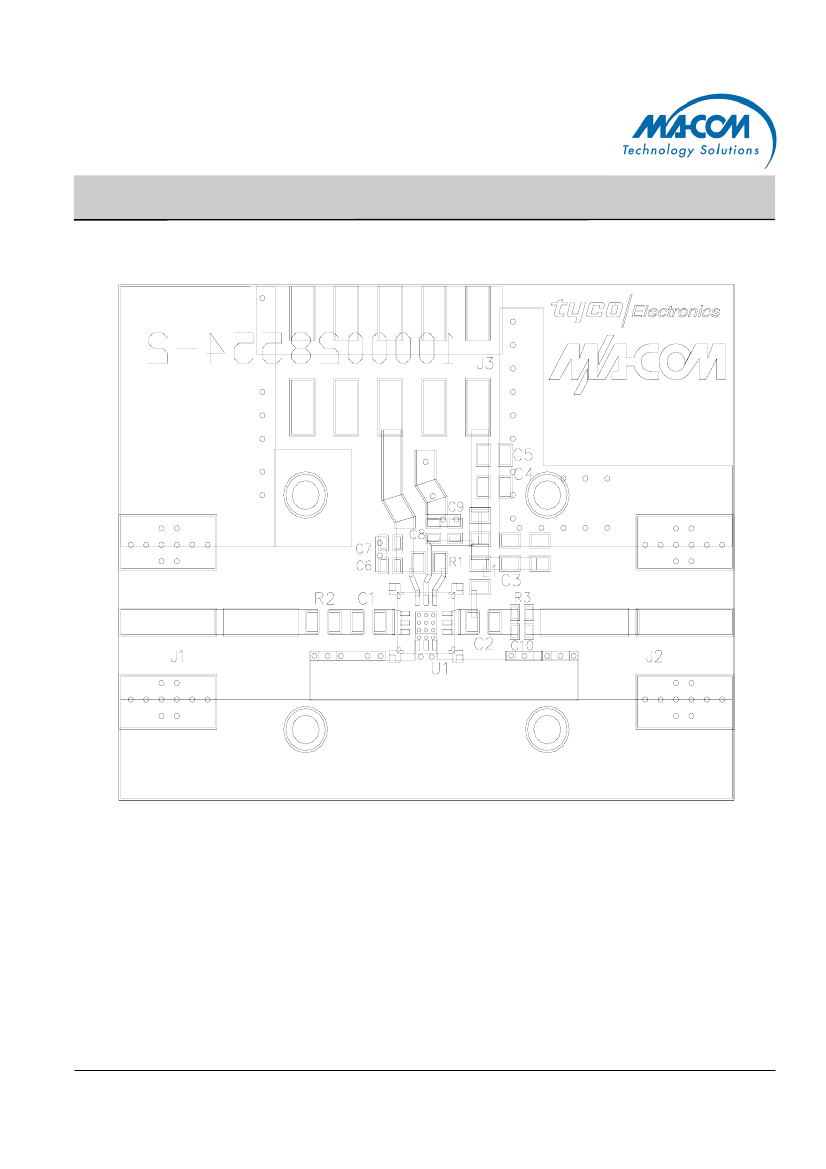

EVALUATION CIRCUIT BOARD LAYOUT
1,2,3
Rev. V1
GND
MAAM-007866-001
EVAL PCB1 4/06
VCONT
VCC
RFIN
RFOUT
1. GETEK, 2-layer, Total Board Thickness = 32 mil.
Microstrip 50 Ohm Line width = 54 mil
Board Size: 1.4 x 1.1 inches.
2. Via Geometry shown must be used for the 3 mm QFN package backside to provide a low-inductance & low
thermal resistance path to the PCB backside ground.
At least 9 vias are required. Via Diameter = 8 mils finished size with 1.0 mils minimum plating.
3. Evaluation circuit board assemblies use SnPb (tin lead) soldering process to attach all components, and are
therefore not RoHS compliant.
5
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
京公网安备 11010802033920号
EEWORLD
