MAAMSS0017
Broadband IF Driver Amplifier
50 - 2500 MHz
Features
•
•
•
•
•
•
•
Low Cost Plastic SOT-89 Package
Broadband Operation
+38.5 dBm Output Intercept Point @ 250 MHz
+19 dBm Output P1dB
High Efficiency
50
Ω
Input / Output Match
18 dB Typical Gain
Rev. V4
Functional Schematic
Description
M/A-COM’s MAAMSS0017 driver amplifier is a
GaAs MMIC which exhibits high OIP3 as well as
high gain and low power consumption in a low-cost
SOT-89 surface mount plastic package.
The MAAMSS0017 employs a monolithic single
stage design featuring a convenient 50
Ω
input /
output impedance that minimizes the number of
external components required. The device runs off
a single +5 volt supply and draws 70 mA typically.
The MAAMSS0017 is fabricated using M/A-COM’s
iHBT process to realize low current and high power
functionality. The process features full passivation
for increased performance and reliability.
Pin 1
RF In
RF Out
Pin Configuration
Pin No.
1
2
Function
RF In
GND
Pin No.
3
Function
RF Out/Bias
Absolute Maximum Ratings
4,5
Parameter
RF Input Power
6
Ordering Information
1,2
Part Number
MAAMSS0017TR
MAAMSS0017TR-3000
MAAMSS0017SMB
Package
1000 Piece Tape and Reel
3000 Piece Tape and Reel
Sample Board
Absolute Maximum
15 dBm
6 Volts
+150°C
-40 °C to +85 °C
-65 °C to +150 °C
Voltage
Junction Temperature
7
Operating Temperature
Storage Temperature
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
Maximum Operating Conditions
3
Parameter
Junction Temperature
RF Input Power
Maximum Operating
Conditions
125°C
14 dBm
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM does not recommend sustained operation near
these survivability limits.
6. The MAAMSS0017 is designed to operate optimally at 10 dB
backed off from its output P1dB. Driving the device at higher
power levels could degrade performance.
7. Thermal Resistance = 110°C/W.
3. Operating at or within these conditions will ensure MTTF > 1 x
10
6
hours.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAMSS0017
Broadband IF Driver Amplifier
50 - 2500 MHz
Electrical Specifications: T
A
= 25°C, V
CC
= 5 V, Z
0
= 50
Ω,
P
IN
≤
-10 dBm
Parameter
Test Conditions
250 MHz
50 - 600 MHz
600 - 1500 MHz
1500 - 2000 MHz
2000 - 2500 MHz
50 - 600 MHz
600 - 1500 MHz
1500 - 2500 MHz
50 - 600 MHz
600 - 2500 MHz
50 - 600 MHz
600 - 1500 MHz
1500 - 2500 MHz
50 - 600 MHz
600 - 2500 MHz
Two tone, P
IN
/ Tone = -13 dBm, Tone spacing = 10 MHz
250 MHz
50 - 600 MHz
600 - 2500 MHz
V
CC
= 5 V
Rev. V4
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
mA
Min
15.5
—
—
—
—
—
—
—
—
—
—
—
—
—
—
35
—
—
—
Typ
18
17
12.5
10.5
8
4.8
5.1
5.3
10
13
10
13
10
20
19
38.5
37
34
70
Max
19.5
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
100
Gain
Noise Figure
Input Return Loss
Output Return Loss
Output
1dB Compression
Output IP3
Current
PCB Configuration

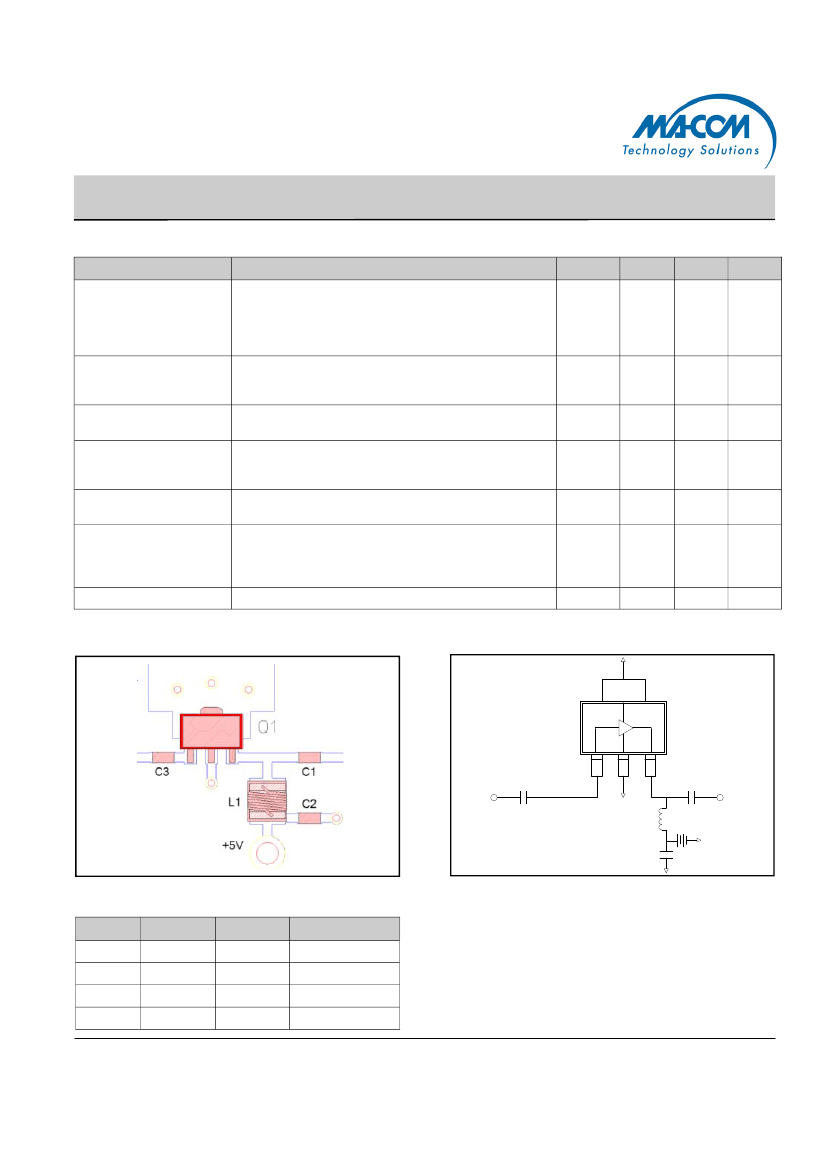

Schematic Including Off-Chip Components
Pin 1
RF In
C3
L1
+ 5V
C2
C1
RF Out
Component List
Part
C1
C2
C3
L1
2
Operating the MAAMSS0017
Package
0603
0603
0603
1008
Manufacturer
Murata
Murata
Murata
Coilcraft
Value
150 pF
0.1 µF
1000 pF
180 nH
The MAAMSS0017 can be damaged by electrostatic
discharge (ESD).
Use proper ESD control
techniques when handling this device. To operate
the MAAMSS0017, follow these steps.
1. Apply V
CC
(5.0 V).
2. Set P
IN
.
3. Turn off in reverse order.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAMSS0017
Broadband IF Driver Amplifier
50 - 2500 MHz

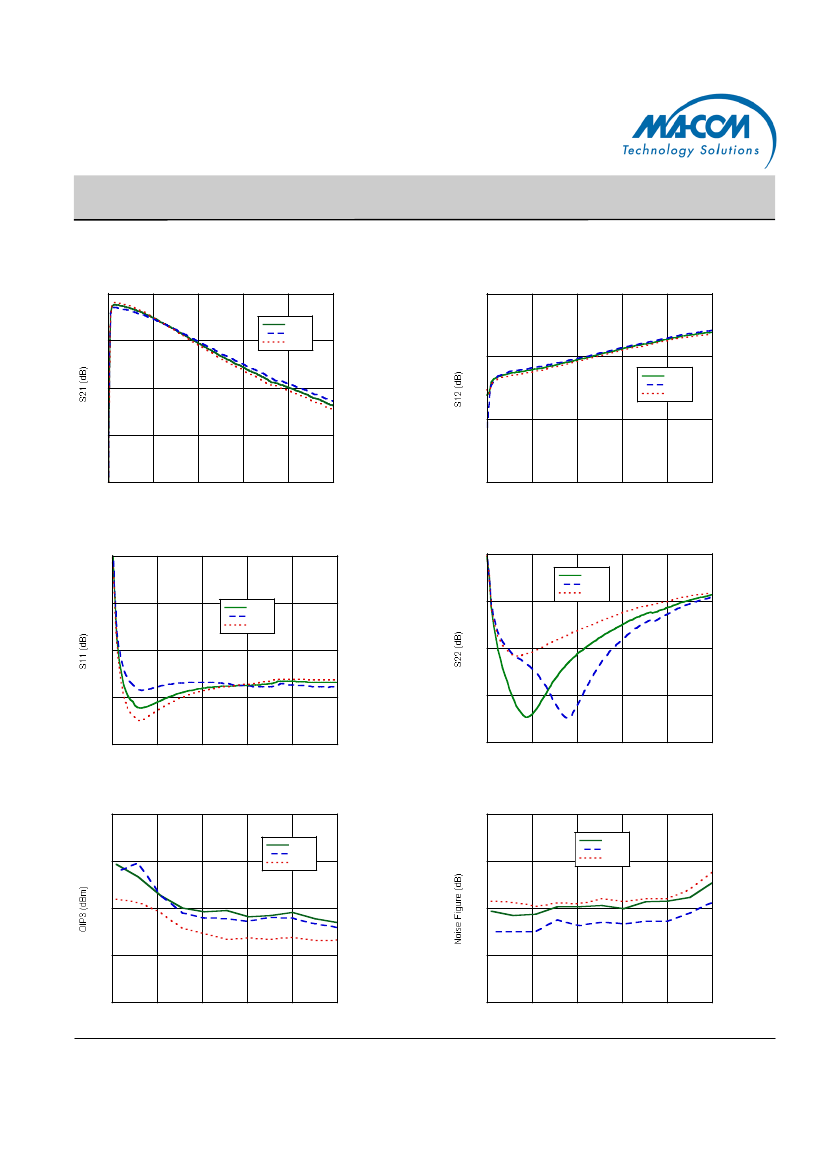

Typical Performance Curves
Gain
20
Rev. V4
Reverse Isolation
-10
15
+25°C
-40°C
+85°C
-20
+25°C
-40°C
+85°C
-30
10
5
0
0.0
0.5
1.0
1.5
2.0
2.5
-40
0.0
0.5
1.0
1.5
2.0
2.5
Frequency (GHz)
Frequency (GHz)
Input Return Loss
0
Output Return Loss
0
+25°C
-40°C
+85°C
-5
+25°C
-40°C
+85°C
-10
-10
-20
-15
-30
-20
0.0
0.5
1.0
1.5
2.0
2.5
-40
0.0
0.5
1.0
1.5
2.0
2.5
Frequency (GHz)
Frequency (GHz)
OIP3 (P
IN
= -13 dBm / tone)
45
Noise Figure
7
+25°C
-40°C
+85°C
40
+25°C
-40°C
+85°C
6
35
5
30
4
25
0.0
0.5
1.0
1.5
2.0
2.5
3
0.0
0.5
1.0
1.5
2.0
2.5
3
Frequency (GHz)
Frequency (GHz)
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAMSS0017
Broadband IF Driver Amplifier
50 - 2500 MHz
Typical Performance Curves
P1dB
30
Rev. V4
25
+25°C
-40°C
+85°C
20
15
10
0.0
0.5
1.0
1.5
2.0
2.5
Frequency (GHz)

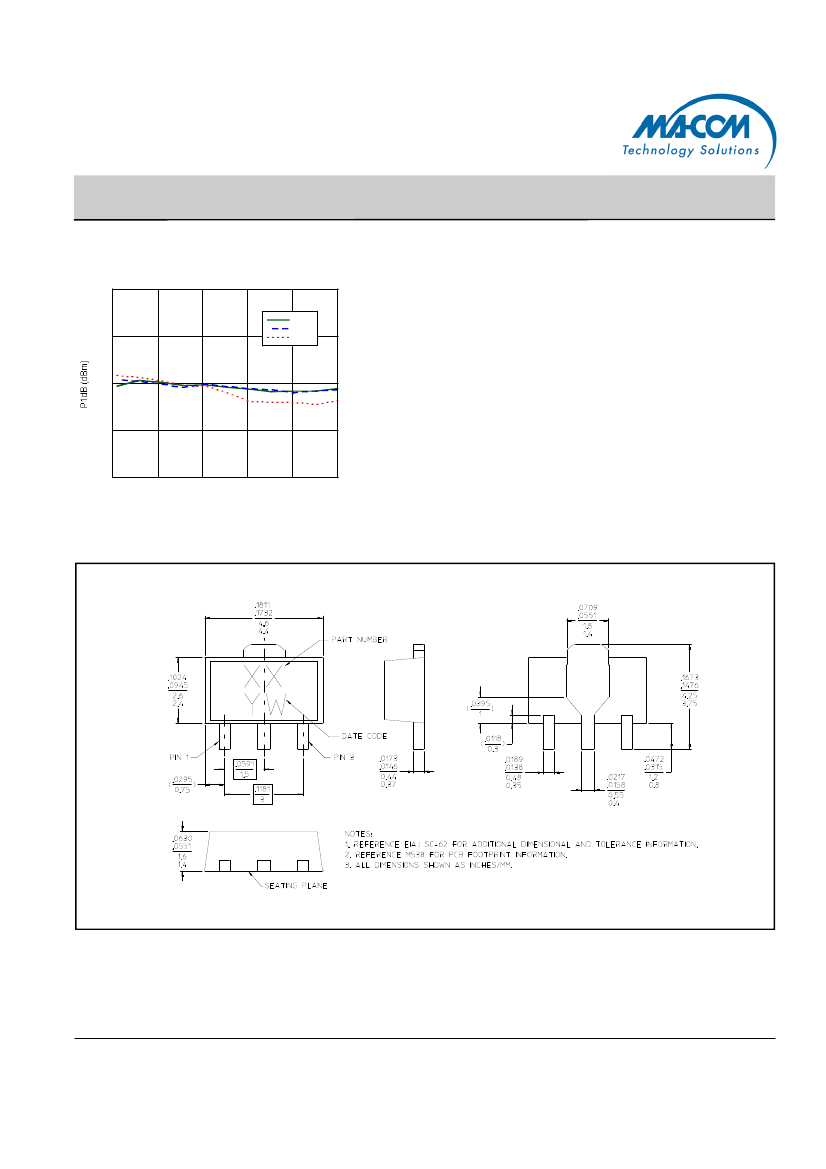

SOT-89 Plastic Package
