MAAVSS0007
Voltage Variable Absorptive Attenuator
40 dB, 0.5 - 3.0 GHz
Features
•
•
•
•
•
•
•
•
•
•
Single Positive Voltage Control: 0 to +5 Volts
40 dB Attenuation Range at 900 MHz
± 2 dB Linearity from BSL
Low DC Power Consumption
Tape and Reel Packaging Available
Lead-Free SOIC-8 Package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
260°C Reflow Compatible
RoHS* Compliant Version of AT-108
Rev. V2
Functional Schematic
3,4,5,6
Description
M/A-COM's MAAVSS0007 is a GaAs MESFET
MMIC voltage variable absorptive attenuator in a
lead-free SOIC-8 surface mount plastic package.
The MAAVSS0007 is ideally suited for use where
linear attenuation, fine tuning and very low power
consumption are required.
Typical applications include radio, cellular, GPS
equipment and automatic gain/level control circuits.
The MAAVSS0007 is fabricated with a monolithic
GaAs MMIC using a mature 1-micron process. The
process features full chip passivation for increased
performance and reliability.
3. V
cc
= +5 VDC @ 50 µA maximum.
4. V
c
= 0 VDC to +5 VDC @ 50 µA maximum.
5. External DC blocking capacitors are requirements on all RF
ports.
6. 39 pF used for data measurements.
Pin Configuration
Pin No.
1
2
3
Function
Ground
Ground
RF Port
V
CC
Pin No.
5
6
7
8
Function
V
C
Ground
RF Port
Ground
Ordering Information
1,2
Part Number
MAAVSS0007
MAAVSS0007TR
MAAVSS0007SMB
Package
Bulk Packaging
1000 piece reel
Sample Board
4
Absolute Maximum Ratings
7,8
Parameter
Input Power
Supply Voltage V
CC
Control Voltage V
C
Operating Temperature
Storage Temperature
Absolute Maximum
+21 dBm
-1 V < V
CC
< +8 V
-1 V < V
C
< V
CC
+0.5 V
-40°C to +85°C
-65°C to +150°C
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
7. Exceeding any one or combination of these limits may cause
permanent damage to this device.
8. M/A-COM does not recommend sustained operation near
these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
1
changes to the product(s) or information contained herein without notice.
MAAVSS0007
Voltage Variable Absorptive Attenuator
40 dB, 0.5 - 3.0 GHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50
Ω
Parameter
Insertion Loss
Test Conditions
0.5 - 1.0 GHz
1.0 - 3.0 GHz
0.5 - 1.0 GHz
1.0 - 2.0 GHz
2.0 - 3.0 GHz
0.5 - 1.0 GHz
1.0 - 2.0 GHz
2.0 - 3.0 GHz
0.5 - 3.0 GHz
10% to 90% RF, 90% to 10% RF
50% Control to 90% RF, 50% Control to 10% RF
In-Band
Units
dB
dB
dB
dB
dB
dB
dB
dB
Ratio
µS
µS
mV
Min.
—
—
—
35
—
—
—
—
—
—
—
—
Typ.
2.5
2.6
43
40
33
± 0.5
± 1.2
± 1.5
2:1
15
25
12
Max.
—
3.5
—
—
—
—
—
—
—
—
—
—
Rev. V2
Attenuation
Flatness
(peak-to-peak)
VSWR
Trise, Tfall
Ton, Toff
Transients

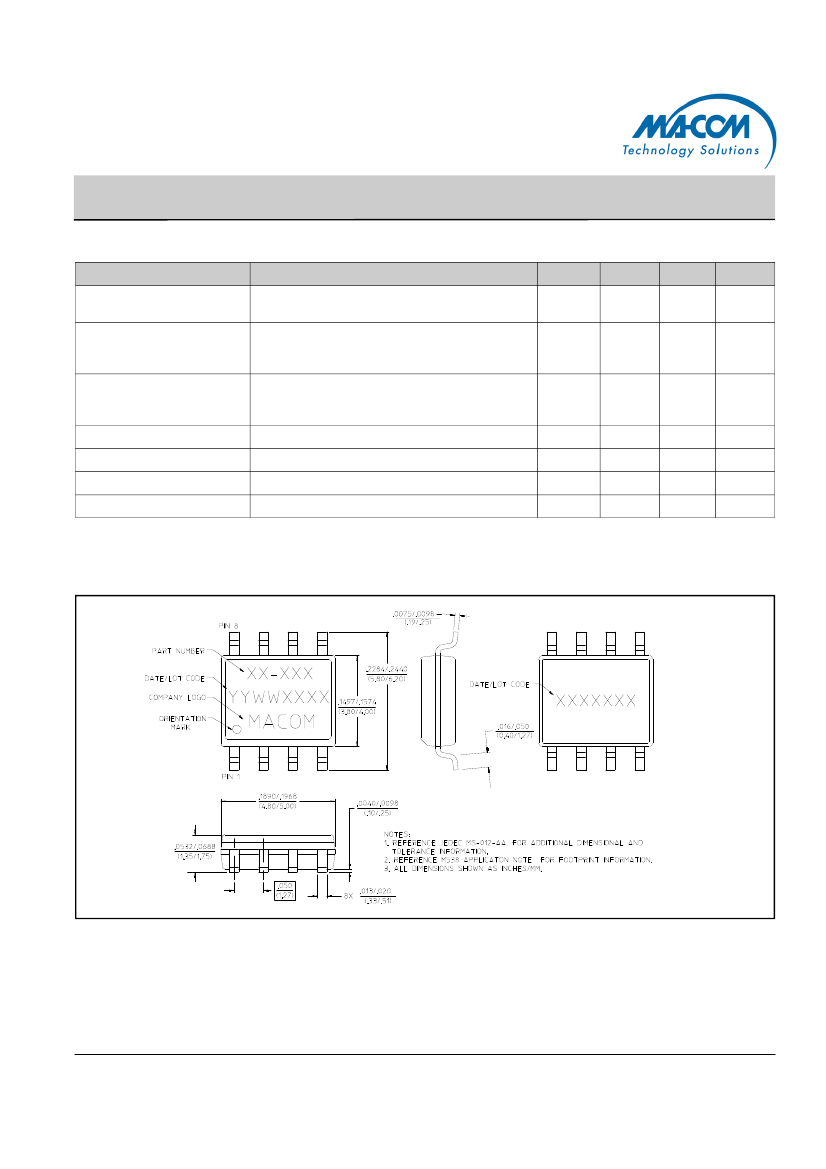

Lead-Free SOIC-8
†
†
Reference Application Note M538 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAVSS0007
Voltage Variable Absorptive Attenuator
40 dB, 0.5 - 3.0 GHz

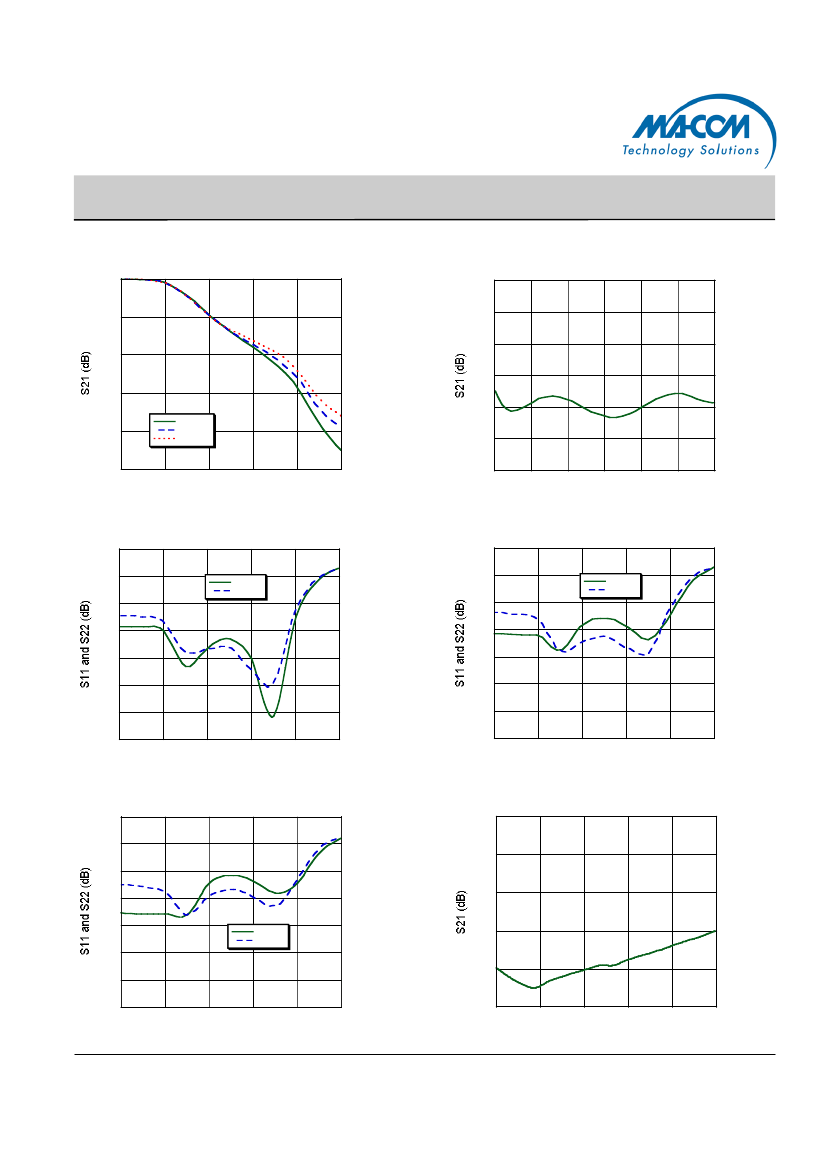

Typical Performance Curves @ 25°C
Attenuation vs. Control Voltage
0
Rev. V2
Insertion Loss vs. Frequency
-1.6
-10
-1.8
-2.0
-20
-2.2
-30
-2.4
-40
900 MHz
1800 MHz
2200 MHz
-2.6
-50
5
4
3
2
1
0
-2.8
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Control Voltage (V)
Frequency (GHz)
Return Loss vs. Control Voltage, F = 900 MHz
0
-5
-10
-15
-20
-25
-30
-35
5
4
3
2
1
0
Return Loss vs. Control Voltage, F = 1800 MHz
0
-5
S11 (dB)
S22 (dB)
S11 (dB)
S22 (dB)
-10
-15
-20
-25
-30
-35
5
4
3
2
1
0
Control Voltage (V)
Control Voltage (V)
Return Loss vs. Control Voltage, F = 2200 MHz
0
-5
Maximum Attenuation vs. Frequency
0
-10
-10
-15
-20
-25
-40
-30
-35
5
4
3
2
1
0
-50
0.5
1.0
1.5
2.0
2.5
3.0
-20
S11 (dB)
S22 (dB)
-30
3
Control Voltage (V)
Frequency (GHz)
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAVSS0007
Voltage Variable Absorptive Attenuator
40 dB, 0.5 - 3.0 GHz
Typical Performance Curves @ 25°C

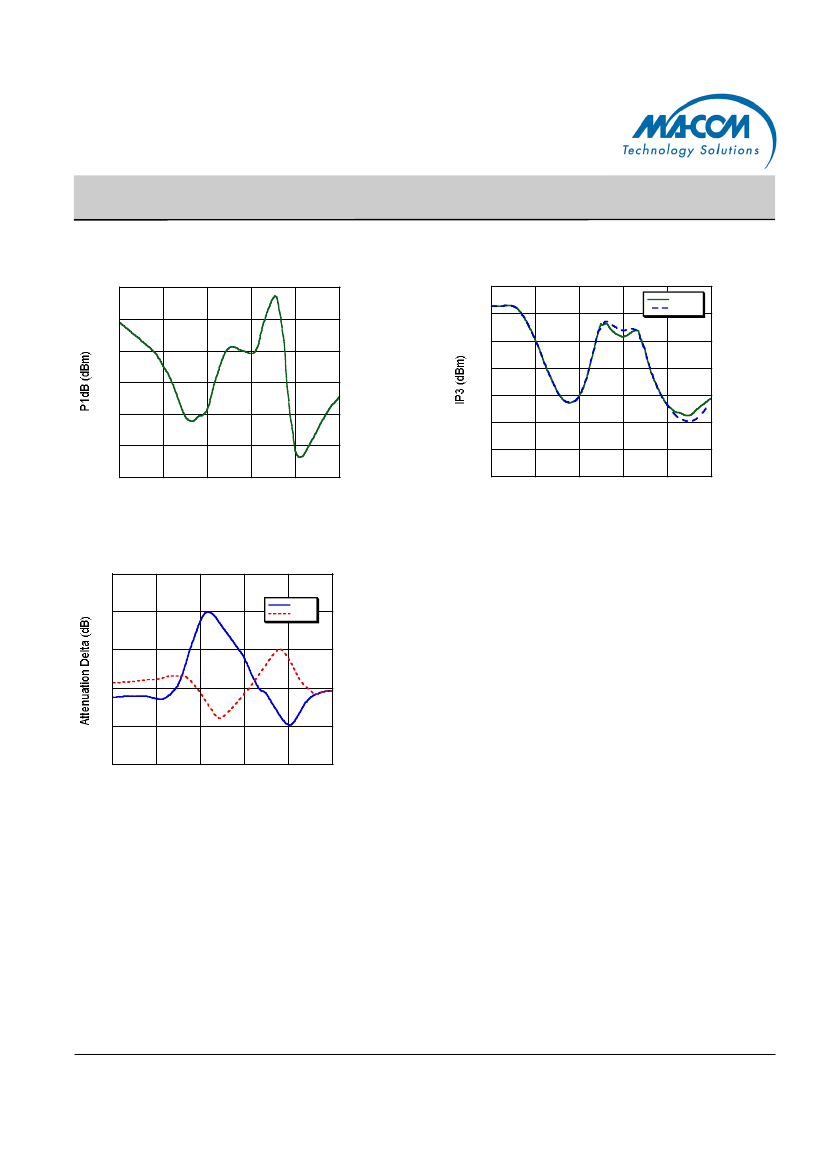

1 dB Compression vs. Control Voltage, F = 900 MHz
25
Rev. V2
IP3 vs. Control Voltage
35
30
25
400 MHz
900 MHz
20
15
20
10
15
5
10
0
5
0
5
4
3
2
1
0
5
4
3
2
1
0
-5
Control Voltage (V)
Control Voltage (V)
Attenuation vs. Temperature
Normalized to 25°C, F = 900 MHz
3
2
-40°C
+85°C
Handling Procedures
Please observe the following precautions to avoid
damage:
1
0
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
-1
-2
