BCL-A2SMYG1

Description
PCB Connector, Socket
CategoryThe connector    The connector
File Size55KB,1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Download Datasheet Parametric View All

BCL-A2SMYG1 Overview

PCB Connector, Socket

BCL-A2SMYG1 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Body/casing typeSOCKET
Connector typePCB CONNECTOR
Contact completed and terminatedGOLD
DIN complianceNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberBCL-A
OptionsGENERAL PURPOSE
Base Number Matches1
For mobile interfaces
Straight SMT type battery connector

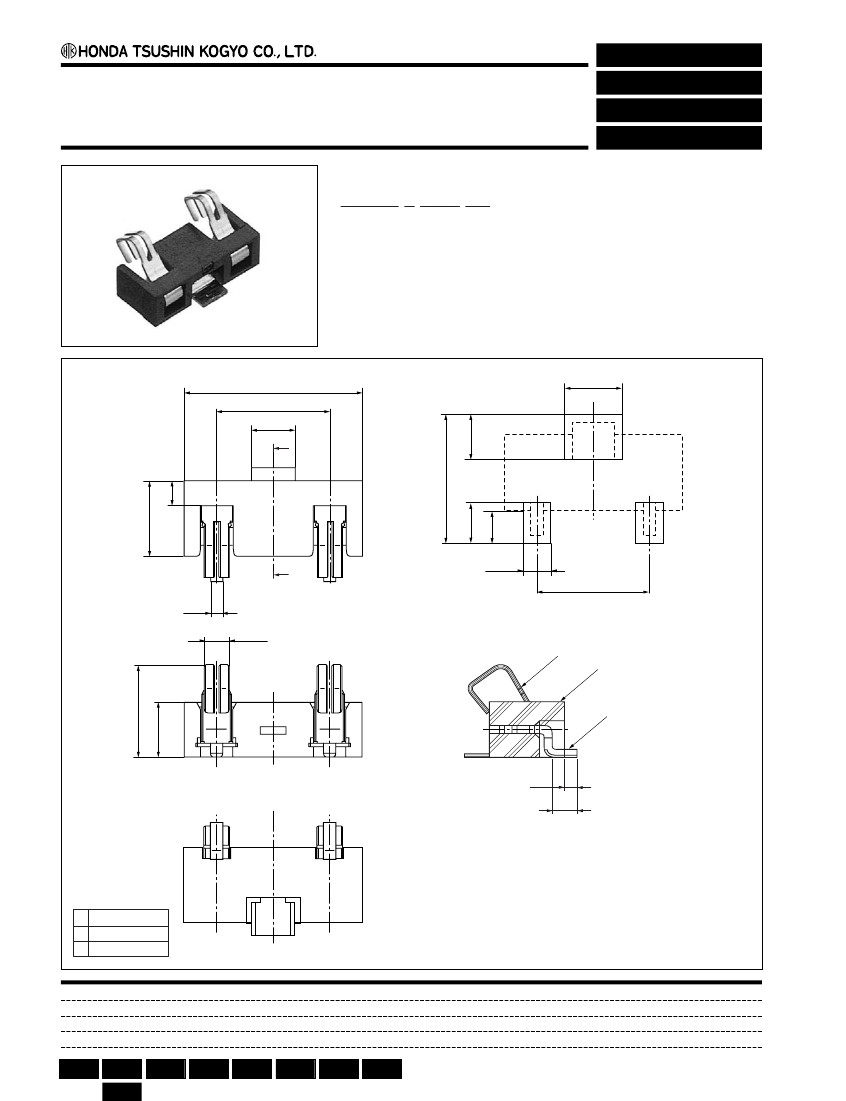

BCL-A2SMYG1
Configuration of product Part No.
For batteries
Straight SMT
BCL-A 2 SMY G1
Series name
No. of contacts: 2
Type of contact
SMY: Straight SMT type
Contact plating
G1: Gold plate
7.1
4.5
1.8
±0.1
1.7
A
5.1
±0.1
2.26
±0.1
1
1.6
±0.1
A'
1.3
±0.1
1.05
±0.1
4.5
±0.1
3
0.5
1 REF.
PCB layout for reference only
3.7 REF.
2.2
0.5
1
A-A' cross section
Components
Insulator
Contacts
Hold down
DIP
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
