MAFLCC0001: DescriptionLow Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS; CategoryAnalog mixed-signal IC filter; File Size73KB，4 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MAFLCC0001 Overview

Low Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS

MAFLCC0001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MACOM
Reach Compliance Code	unknow
Other features	BULK
filter type	DUPLEXER
high	1.27 mm
Insertion loss (receive)	0.8 dB
Insertion loss (transmit)	0.9 dB
JESD-609 code	e3
length	4.9 mm
Manufacturer's serial number	MAFLCC0001
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L4.9XB3.9XH1.27 (mm)/L0.193XB0.154XH0.05 (inch)
Receive center frequency	892 MHz
Terminal surface	Matte Tin (Sn)
Transmit center frequency	1920 MHz
voltage standing wave ratio	1.4
width	3.9 mm

Preview

Download Datasheet

View All

MAFLCC0001

Low Cost SMT Dual Band Diplexer

AMPS/PCS and GSM/DCS

Features

•

Small Size and Low Profile

•

Superior Repeatability

•

Passbands 824 – 960 MHz and 1850 – 1990

MHz

•

Passbands 880 – 960 MHz and 1700 – 1900

MHz

•

Typical Passband Insertion Loss: 0.5 dB

•

2 Watt Power Handling

•

Low Cost

•

Lead-Free SO-8 Package

•

100% Matte Tin Plating over Copper

•

Halogen-Free “Green” Mold Compound

•

260°C Reflow Compatible

•

RoHS* Compliant Version of DP52-0002

Rev. V2

Functional Block Diagram

1,2

Description

M/A-COM’s MAFLCC0001 is an IC-based monolithic

diplexer in a low cost SOIC-8 SMT plastic package.

This diplexer is ideally suited for applications where

small size, low insertion loss, superior repeatability,

and low cost are required. Typical applications in-

clude AMPS/PCS and GSM/DCS dual mode port-

able devices.

The MAFLCC0001 is fabricated using a passive-

integrated circuit process. The process features full-

chip pssivation for increased performance and reli-

ability.

All unused pins must be RF and DC grounded.

Pins 1 and 4 are thermal ground contacts.

Pin Configuration

Pin No.

Function

GND

AMPS IN/OUT

GND

Pin No.

Function

PCS IN/OUT

GND

ANTENNA

GND

Ordering Information

Part Number

MAFLCC0001

MAFLCC0001-TR

MAFLCC0001-TB

Package

Bulk Packaging

1000 piece reel

Sample Test Board

Note: Reference Application Note M513 for reel size

information.

* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

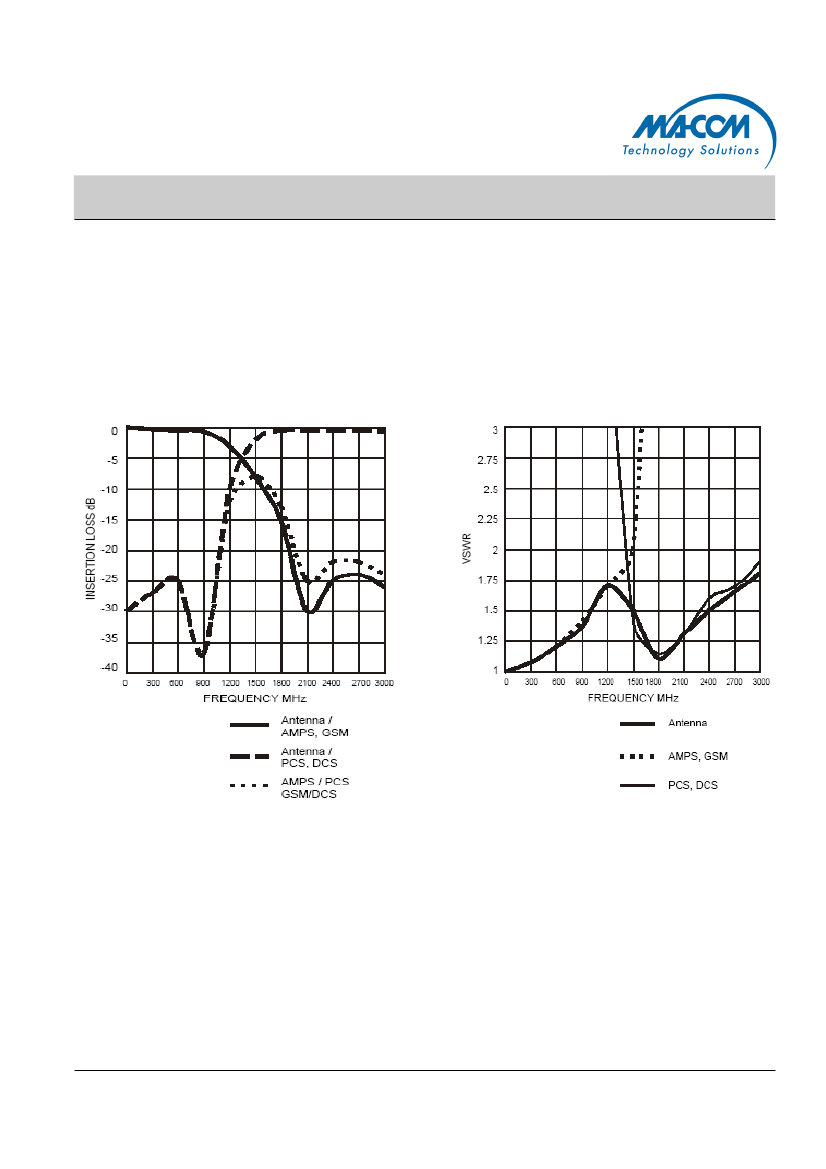

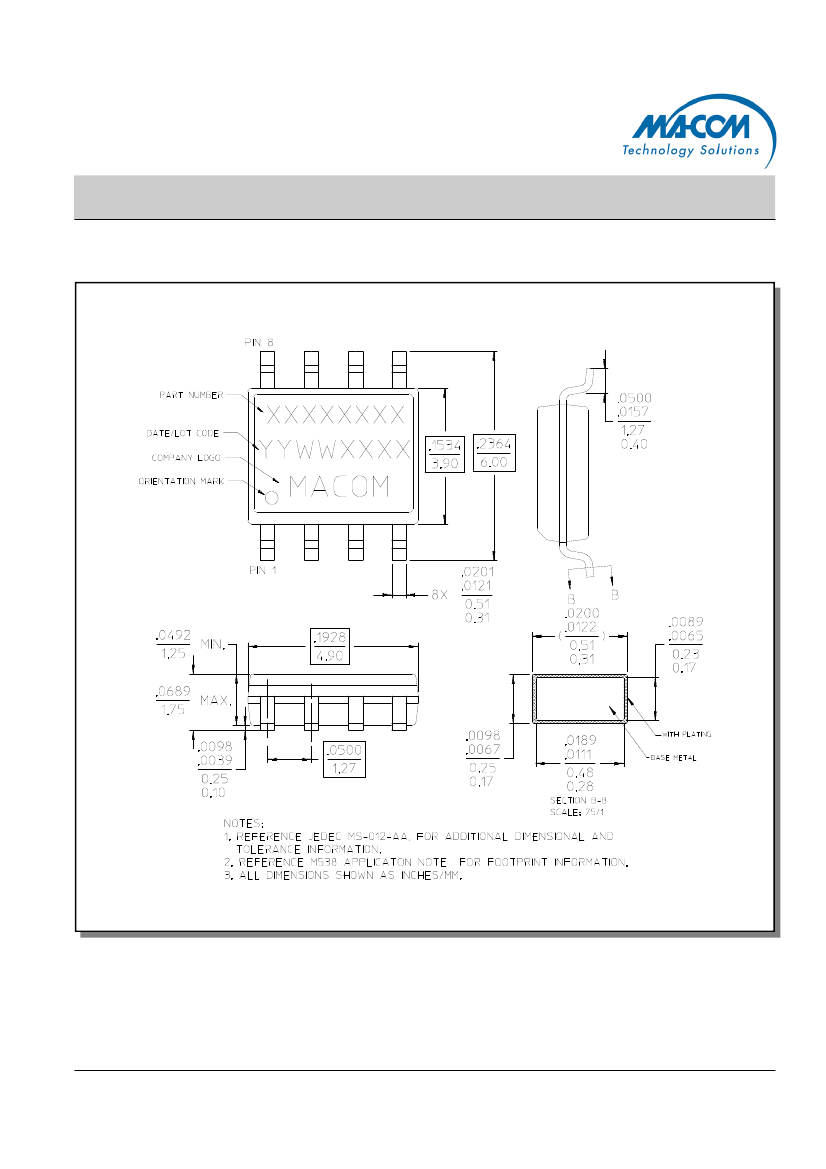

MAFLCC0001 Related Products

	MAFLCC0001	MAFLCC0001-TB	MAFLCC0001-TR
Description	Low Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS	Low Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS	Low Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS
Maker	MACOM	MACOM	MACOM
Reach Compliance Code	unknow	unknow	unknow
Other features	BULK	GSM/DCS APPL WITH TX FREQUENCY 880 TO 960 MHZ AND RX FREQUENCY 1700 TO 1900 MHZ; TEST BOARD	TAPE AND REEL
filter type	DUPLEXER	DUPLEXER	DUPLEXER
high	1.27 mm	1.75 mm	1.27 mm
Insertion loss (receive)	0.8 dB	0.8 dB	0.8 dB
Insertion loss (transmit)	0.9 dB	0.8 dB	0.9 dB
length	4.9 mm	5 mm	4.9 mm
Manufacturer's serial number	MAFLCC0001	MAFLCC0001	MAFLCC0001
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
physical size	L4.9XB3.9XH1.27 (mm)/L0.193XB0.154XH0.05 (inch)	L5XB4XH1.75 (mm)/L0.1968XB0.1574XH0.0688 (inch)	L4.9XB3.9XH1.27 (mm)/L0.193XB0.154XH0.05 (inch)
voltage standing wave ratio	1.4	1.4	1.4
width	3.9 mm	4 mm	3.9 mm
Is it Rohs certified?	conform to	-	conform to
JESD-609 code	e3	-	e3
Receive center frequency	892 MHz	-	892 MHz
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)
Transmit center frequency	1920 MHz	-	1920 MHz
