MAFLCC0003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> MAFLCC0003

MAFLCC0003: DescriptionLow Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS; CategoryAnalog mixed-signal IC filter; File Size71KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MAFLCC0003 Overview

Low Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS

MAFLCC0003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MACOM
Reach Compliance Code	compli
Other features	BULK
filter type	DUPLEXER
high	1.45 mm
Insertion loss (receive)	0.9 dB
Insertion loss (transmit)	0.8 dB
JESD-609 code	e3
length	2.9 mm
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L2.9XB1.6XH1.45 (mm)/L0.114XB0.063XH0.057 (inch)
Receive center frequency	892 MHz
Terminal surface	Matte Tin (Sn)
Transmit center frequency	1920 MHz
voltage standing wave ratio	1.3
width	1.6 mm

Preview

Download Datasheet

View All

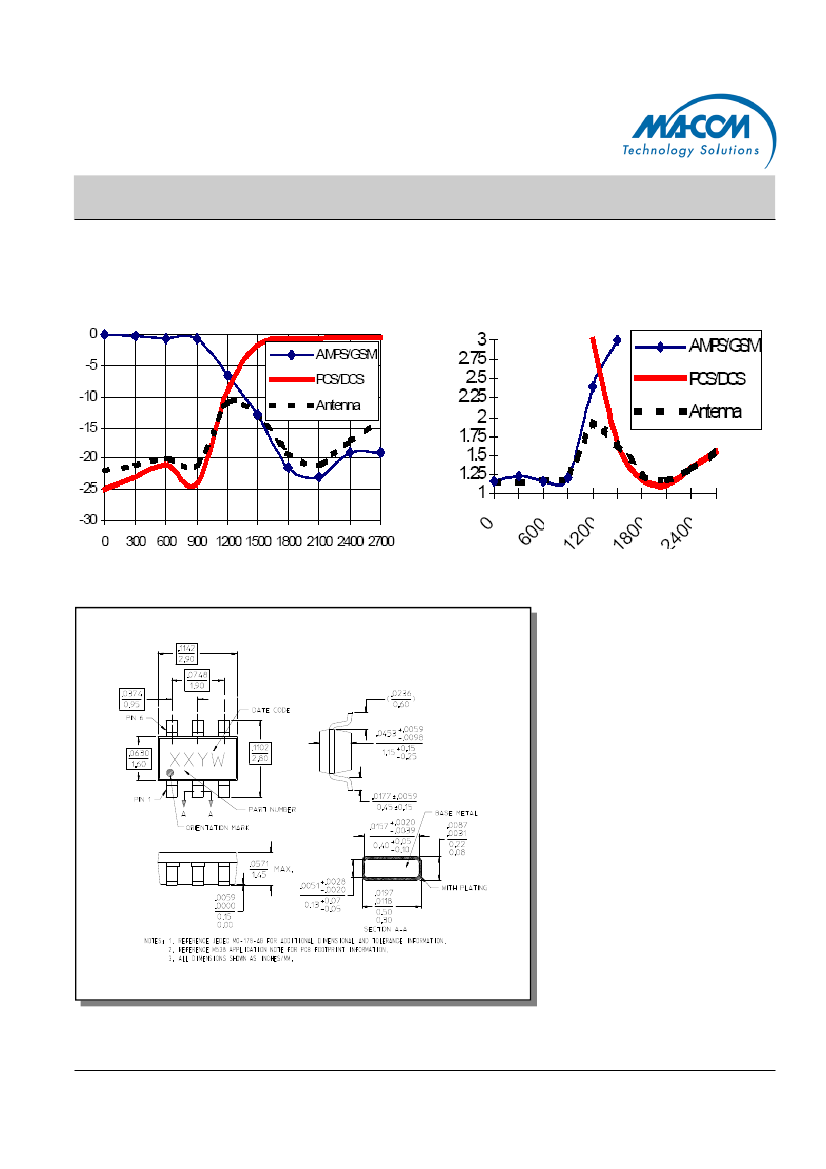

MAFLCC0003

Low Cost SMT Dual Band Diplexer

AMPS/PCS and GSM/DCS

Features

•

Small Size and Low Profile

•

Superior Repeatability

•

Passbands 824 – 960 MHz and 1850 – 1990

MHz

•

Passbands 880 – 960 MHz and 1700 – 1900

MHz

•

Typical Passband Insertion Loss: 0.5 dB

•

2 Watt Power Handling

•

Low Cost

•

Lead-Free SOT-26 Package

•

100% Matte Tin Plating over Copper

•

Halogen-Free “Green” Mold Compound

•

260°C Reflow Compatible

•

RoHS* Compliant Version of DP52-0005

Rev. V3

Functional Block Diagram

GND

PCS

(IN/OUT)

HPF

LPF

Description

M/A-COM’s MAFLCC0003 is an IC-based Monolithic

Diplexer in a low cost SOT-26 plastic package. This

Diplexer is ideally suited for applications where small

size, low insertion loss, superior repeatability, and

low cost are required. Typical applications include

AMPS/PCS and GSM/DCS dual mode portable de-

vices.

The MAFLCC0003 is fabricated using a passive-

integrated circuit process. The process features full-

chip passivation for increased performance and reli-

ability.

AMPS

(IN/OUT)

ANTENNA

GND

All unused pins must be RF and DC grounded.

Ordering Information

Part Number

MAFLCC0003

MAFLCC0003-TR

MAFLCC0003-TB

Pin Configuration

Pin No.

Package

Bulk Packaging

1000 piece reel

Sample Test Board

Function

AMPS IN/OUT

GND

ANTENNA

Pin No.

Function

PCS IN/OUT

GND

Note: Reference Application Note M513 for reel size

information.

* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

MAFLCC0003 Related Products

	MAFLCC0003	MAFLCC0003-TR	MAFLCC0003-TB
Description	Low Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS	Low Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS	Low Cost SMT Dual Band Diplexer AMPS/PCS and GSM/DCS
Maker	MACOM	MACOM	MACOM
Reach Compliance Code	compli	unknow	compli
Other features	BULK	TAPE AND REEL	GSM/DCS APPL WITH TX FREQUENCY 880 TO 960 MHZ AND RX FREQUENCY 1700 TO 1900 MHZ; TEST BOARD
filter type	DUPLEXER	DUPLEXER	DUPLEXER
high	1.45 mm	1.45 mm	1.45 mm
Insertion loss (receive)	0.9 dB	0.9 dB	0.8 dB
Insertion loss (transmit)	0.8 dB	0.8 dB	0.8 dB
length	2.9 mm	2.9 mm	2.9 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
physical size	L2.9XB1.6XH1.45 (mm)/L0.114XB0.063XH0.057 (inch)	L2.9XB1.6XH1.45 (mm)/L0.114XB0.063XH0.057 (inch)	L2.9XB1.6XH1.45 (mm)/L0.1142XB0.063XH0.0571 (inch)
voltage standing wave ratio	1.3	1.3	1.3
width	1.6 mm	1.6 mm	1.6 mm
Is it Rohs certified?	conform to	conform to	-
JESD-609 code	e3	e3	-
Receive center frequency	892 MHz	892 MHz	-
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	-
Transmit center frequency	1920 MHz	1920 MHz	-
Manufacturer's serial number	-	MAFLCC0003	MAFLCC0003
