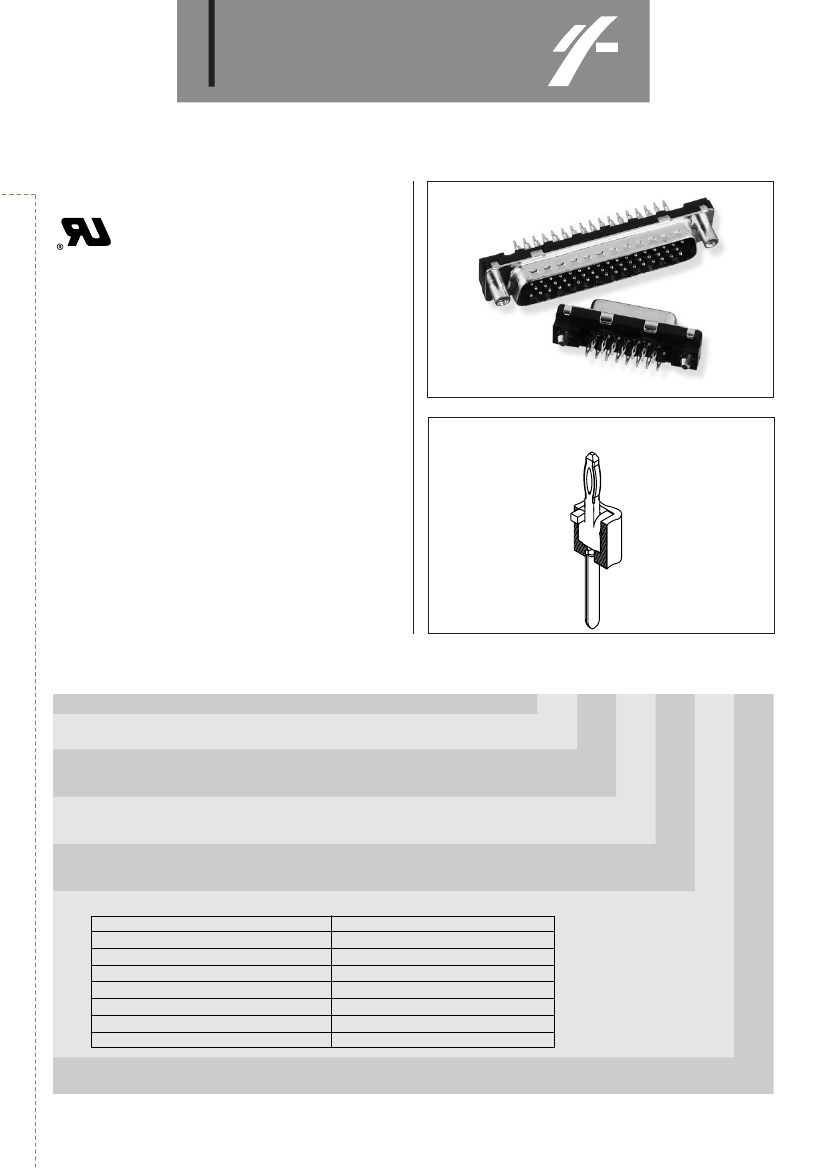

DELTA D
Straight Press-fit
Press-fit termination
UL Recognized File E 118235 (R)
In case of SMT (Surface Mount Technology) manufacturing process
this new press-fit Delta D allows to save cost of an additional wave
soldering. The “eye of the needle” termination combined with a
special flat rock design (easy application by pressure on insulator)
make this product line very attractive.
Available in straight and angled versions, they have a solderless
grounding system as options.
Flat rock mounting with eye of the needle.
Ordering information
Straight Press-fit version
Series
Number of contacts
09, 15, 25, 37, 50
Contacts
P
S
:
Pin
:
Socket
D
25
P
91 C
4
PA
00
Termination type
91 C
: Press-fit for all 3 PCB thickness : (1.6 mm ; 2.4 mm ; 3.2 mm and more) - Europe standard
90 C
:
Press-fit for all 3 PCB thickness : (1.6 mm ; 2.4 mm ; 3.2 mm and more) - Low profile
Plating
4
6
:
Standard class (≥ 200 mating / unmating)
:
High performance class (
≥
500 mating / unmating)
Mounting options
(see cover page 71 bis)
Options
PA
PL
PX
PV
GL
GX
GV
Other options
00
:
Standard
Technical characteristics – page 6
Standard hole
Threaded insert M3
Threaded insert UNC 4-40
Female screw UNC 4-40
Harpoons + insert M3
Harpoons + insert UNC 4-40
Harpoons + Female screw UNC 4-40
12
DELTA D
Straight Press-fit

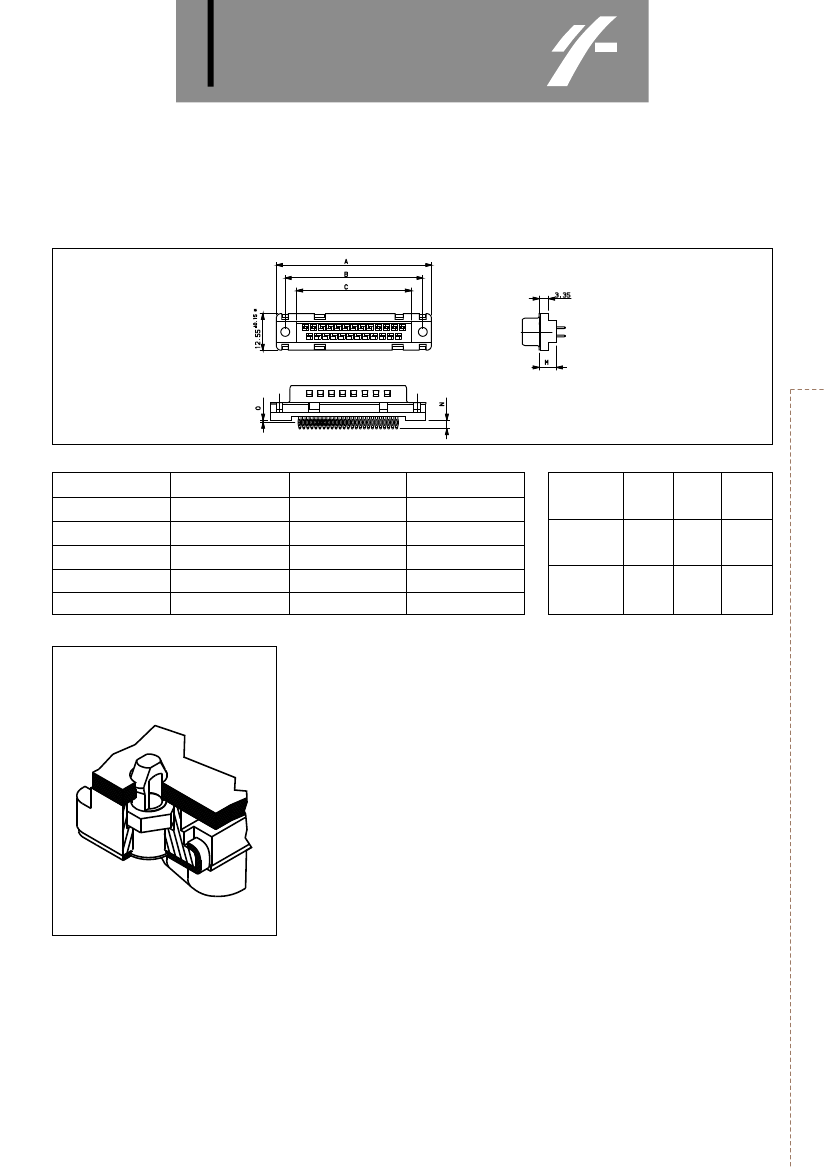

Specific dimensions
Straight Press-fit version
Delta D
Press-fit
*For 50 contacts: 15.34 ± 0.15
For other dimensions consult us
Size
09
15
25
37
50
A
±0.38
30.81
39.14
53.03
69.32
66.93
B
± 0.12
24.99
33.32
47.04
63.50
61.11
C
± 0.10
16.96
25.18
39.12
55.68
53.11
91 C
6.00
3.00
0.80
Termination
type
90 C
M
±0.1
N
±0.3
O
±0.2
5.60
3.40
1.20
Press-fit features
Special press-fit board lock
Application by pressure on insulator
Eye of the needle design
Insertion in PCB: 100 N Max. per contact/
per harpoon
Retention in PCB: 30 N min. per contact/
per harpoon
Recommended PCB hole diameter
(plated): Ø =1.0
+0.09
mm
-0.06
Recommended PCB hole diameter
(plated) for the harpoon: Ø = 3.1
±0.1
mm
13
