D15P81C6PL00LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D15P81C6PL00LF

D15P81C6PL00LF: DescriptionD Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15P81C6PL00LF Overview

D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT

D15P81C6PL00LF Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	D
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	15
Base Number Matches	1

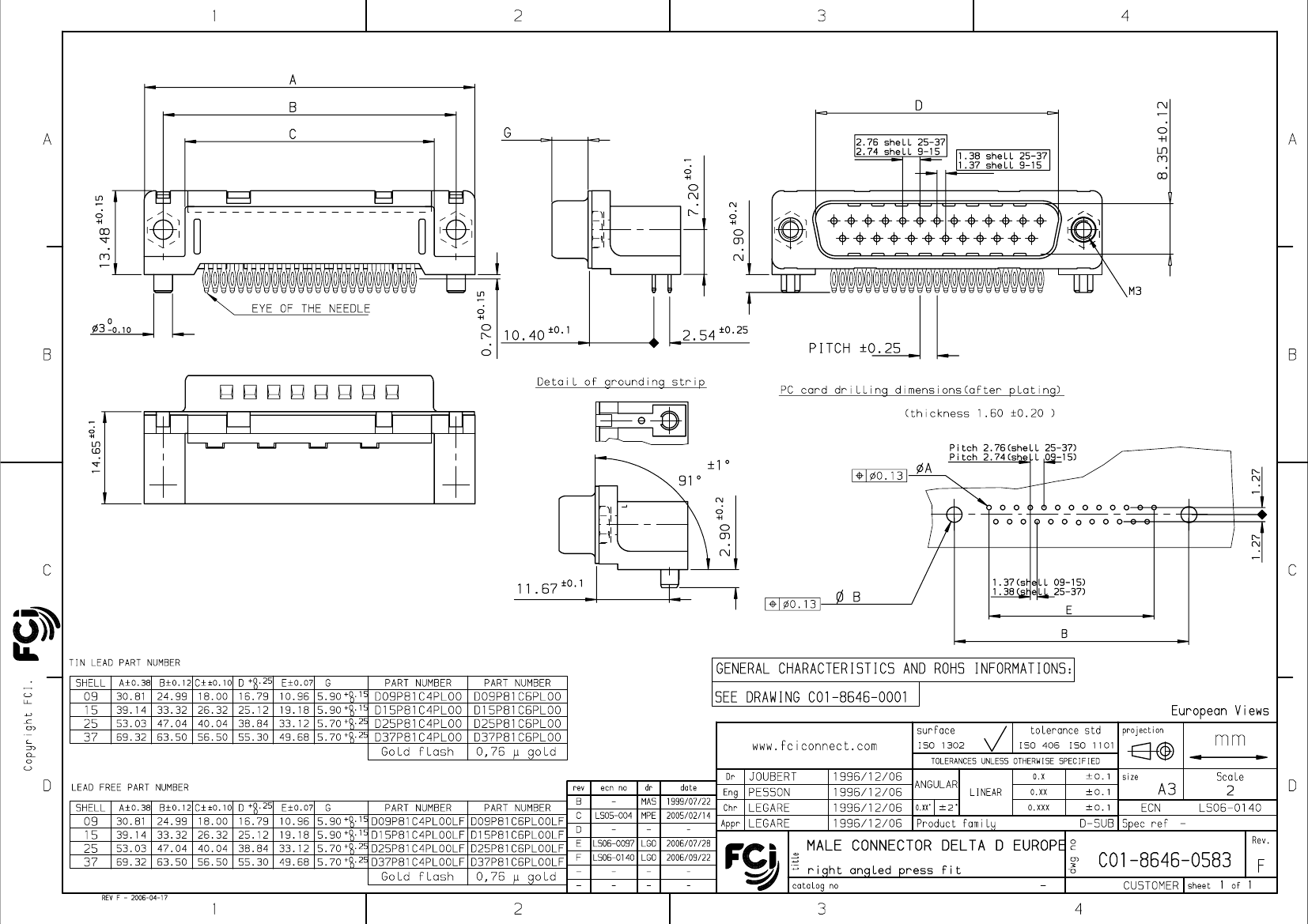

Preview

Download Datasheet

View All

PDM: Rev:F

STATUS:

Released

Printed: Jan 18, 2011

D15P81C6PL00LF Related Products

	D15P81C6PL00LF	D15P81C4PL00LF	D25P81C4PL00LF	D25P81C4PL00	D25P81C6PL00	D37P81C6PL00LF	D37P81C4PL00	D15P81C4PL00	D15P81C6PL00	D09P81C6PL00
Description	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 37 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT	D Subminiature Connector, 37 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD (30)	GOLD (30)	GOLD FLASH	GOLD FLASH	GOLD (30)	GOLD (30)
Contact completed and terminated	GOLD (30)	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD (30)	GOLD (30)	GOLD FLASH	GOLD FLASH	GOLD (30)	GOLD (30)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D	D	D	D	D	D	D	D	D	D
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	2/A	3/B	3/B	3/B	4/C	4/C	2/A	2/A	1/E
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	15	15	25	25	25	37	37	15	15	9
Base Number Matches	1	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
insulator material	-	-	-	POLYETHYLENE	POLYETHYLENE	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Plug information	-	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Shell surface	-	-	-	TIN	TIN	-	TIN	TIN	TIN	TIN
Shell material	-	-	-	STEEL	STEEL	-	STEEL	STEEL	STEEL	STEEL
UL Flammability Code	-	-	-	94V-0	94V-0	-	94V-0	94V-0	94V-0	94V-0
