FXL78-DMDF-14M8: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size301KB，2 Pages; ManufacturerCommScope Inc; Environmental Compliance

Download Datasheet Parametric View All

FXL78-DMDF-14M8 Overview

Interconnection Device, ROHS COMPLIANT

FXL78-DMDF-14M8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

Product Specifications

FXL78-DMDF-14M8

FXL780 Jumper with interface types 716 DIN Male and 716 DIN Female,14.8 m

CHARACTERISTICS

General Specifications

Body Style, Connector A Straight

Body Style, Connector B Straight

Cable Family

Interface, Connector A

Interface, Connector B

Length

FXL780

716 DIN Male

716 DIN Female

14.800 m | 48.556 ft

Attachment, Connector A Factory attached

Attachment, Connector B Factory attached

Electrical Specifications

DTF, Connector A

DTF, Connector B

34.00 dB

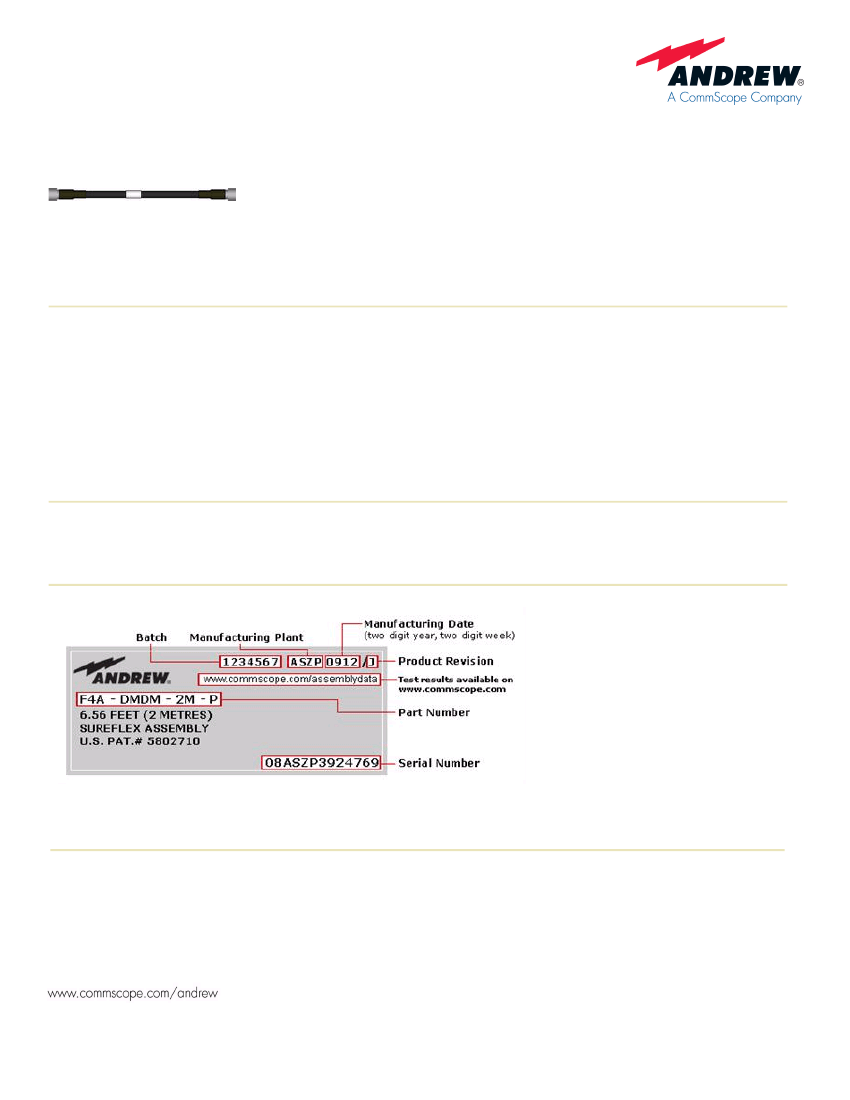

Jumper Assembly Sample Label

Return Loss/VSWR

Frequency Band

698–960 MHz

1700–2200 MHz

2200–2500 MHz

VSWR

1.07

1.1

Return Loss (dB)

30.00

26.40

All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.

See www.commscope.com/andrew for the most current information.

page 1 of 2

6/9/2011
