ACMC0805-121MFS: DescriptionData Line Filter, 1 Function(s), 50V, 0.28A, EIA STD PACKAGE SIZE 0805, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size146KB，2 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

ACMC0805-121MFS Overview

Data Line Filter, 1 Function(s), 50V, 0.28A, EIA STD PACKAGE SIZE 0805, 4 PIN

ACMC0805-121MFS Parametric

Parameter Name	Attribute value
package instruction	EIA STD PACKAGE SIZE 0805, 4 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.45 Ω
filter type	DATA LINE FILTER
high	1.1 mm
length	2.3 mm
Manufacturer's serial number	ACMC0805
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	120 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.3XB1.65XH1.1 (mm)/L0.091XB0.065XH0.043 (inch)
Rated current	0.28 A
Rated voltage	50 V
width	1.65 mm
Base Number Matches	1

Preview

Download Datasheet

View All

WIRE- WOUND COMMON MODE CHOKE

CHIP INDUCTORS-0805 Series(2012) (66~180Ω)

Part

Number

ACMC0805-660MFS

ACMC0805-670MFS

ACMC0805-900MFS

ACMC0805-121MFS

ACMC0805-151MFS

ACMC0805-181MFS

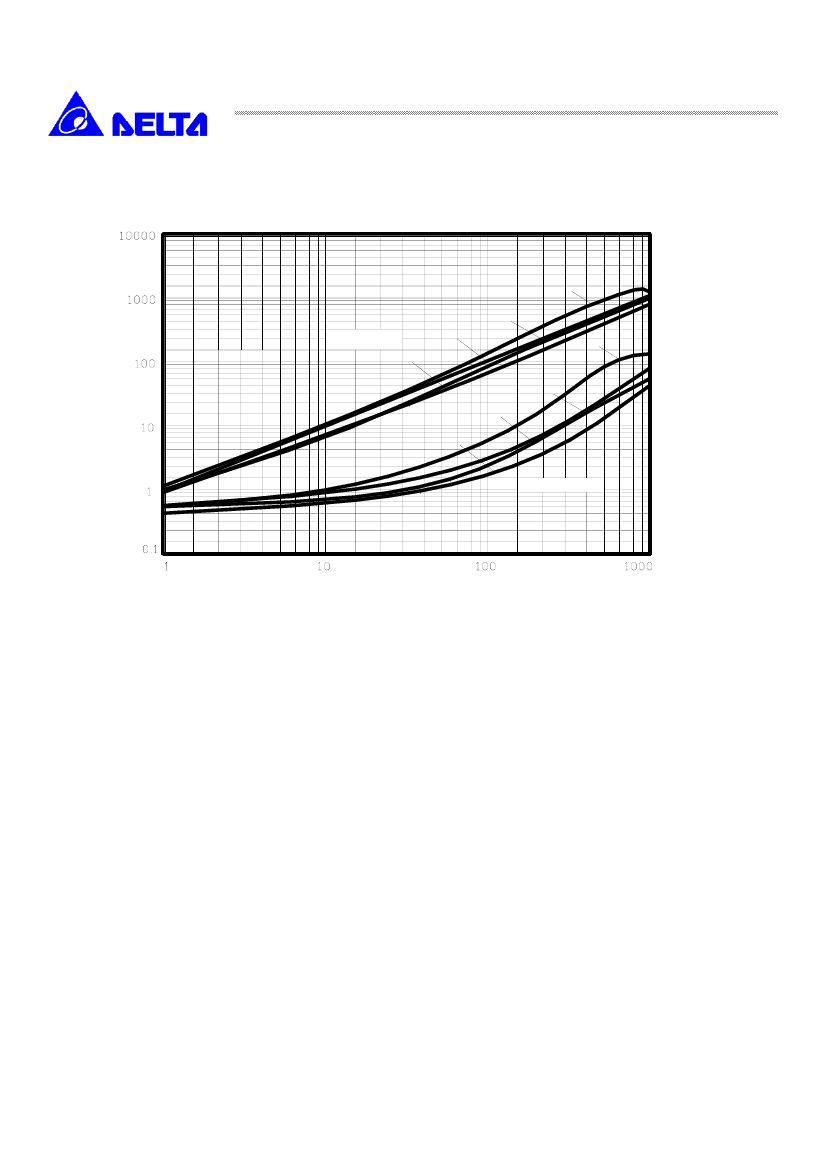

Impedance

(Ω)

@100MHZ

66

67

90

120

150

180

Percent

Tolerance

20

R

DC

Max

Ohms

0.35

0.45

0.50

Rated Voltage

Vdc(V)max

50

Rated current

Max

mA

330

280

250

Working Temperature Range : -40 °C ~ 85 °C

Shape & Dimension

B

E

A

F

E

I

G

terminal

C

K

H K

I

Pad

Layout

J

A

Max.

inch

mm

0.090

2.30

Ref

0.079

2.00

Max

0.055

1.65

B

Ref

0.047

1.20

Max

0.043

1.10

C

Ref

0.039

1.00

E

0.016

0.40

F

0.047

1.20

G

0.016

0.40

H

0.015

0.38

I

0.030

0.75

J

0.043

1.10

K

0.020

0.50

Parts/Reel: 7” 2,000 pcs

Tape Width: 8mm

1
