AK60C-048L-018F10 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> AK60C-048L-018F10

AK60C-048L-018F10: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid; CategoryPower/power management The power supply circuit; File Size64KB，2 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

AK60C-048L-018F10 Overview

DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid

AK60C-048L-018F10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P9
JESD-609 code	e0
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	1.98 V
Minimum output voltage	1.44 V
Nominal output voltage	1.8 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	50 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

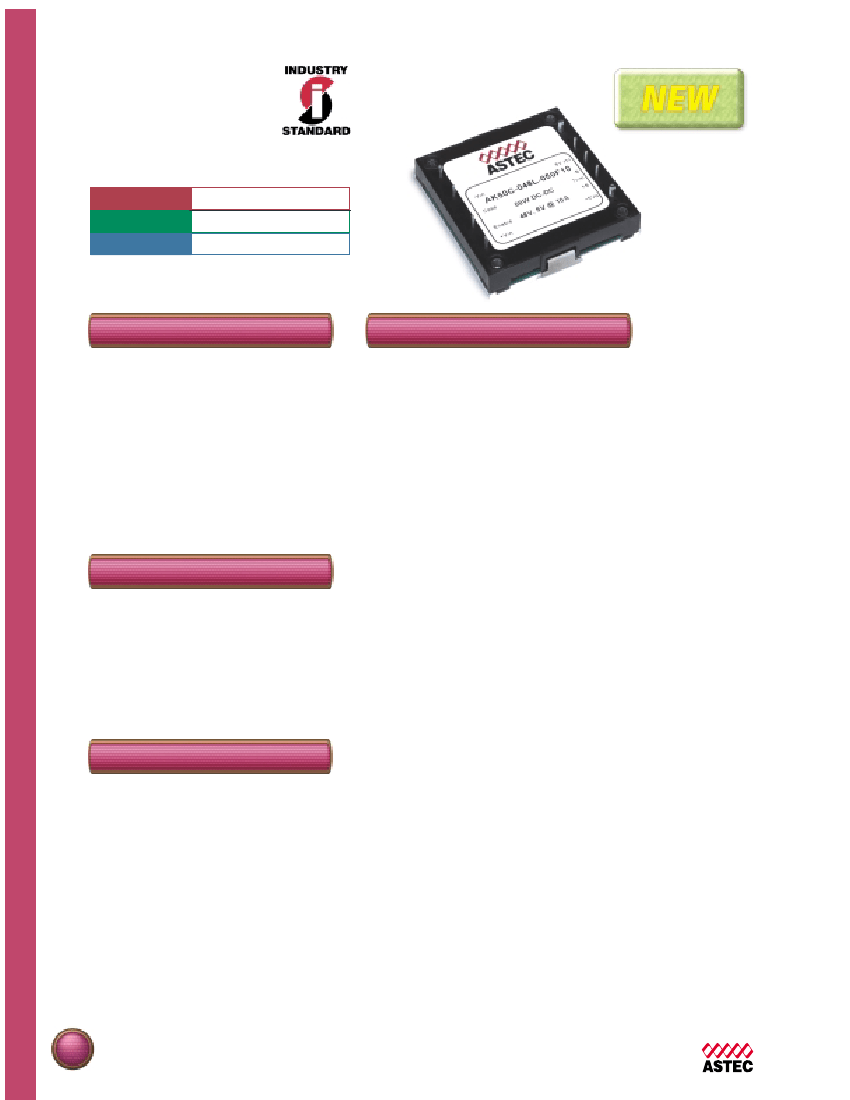

AK60C

50 Watts

AK60C Industry Standard Series

Total Power

Input Voltages

# of Outputs

50 Watts

48V

Single

S P E C I A L F E AT U R E S

•

Industry standard pin-out

and performance

100°C Baseplate temperature

(no derating)

Positive and negative enable function

Low output ripple and noise

High capacitive load limit on start-up

Regulation to zero load

Frequency switching

Basic insulation

E L E C T R I C A L S P E C I F I C AT I O N S

Input

Input range ............................ 36-75 VDC

Input Surge ............................ 100V / 100ms

Efficiency ............................... 84%@5V

Control

Voltage Adjust ....................... 80 to 110%

Enable ................................... TTL compatible

(positive & negative enable options)

E N V I R O N M E N TA L

Operating temperature (baseplate):

-40°C to +100°C

Storage temperature: -55°C to +125°C

Overtemperature protection: 110°C typical

(12V out only)

MTBF: >1 million hours

Output

Load regulation ..................... 0.2% max down to no load

Line regulation ....................... 0.1% max

Ripple and noise ................... 150mV max

Remote sense ....................... 0.5% Vo max

Transient Response .............. 6% max deviation with

..............................................

50% to 75% full load

..............................................

(output 5V and above)

..............................................

200mV (output below 5V)

..............................................

500

µS

(max) recovery

Overvoltage Protection .......... 140% max (all outputs)

Current Limit .......................... 150% maximum output

Switching Frequency ............. 400 kHz typ

SAFETY

UL1950

CSA22.2-950

TUV

EN60950

NOTES:

Nominal values apply with sense pins connected to +Vout and Ground

Return with other control pins unconnected.

Specifications subject to change without notice.

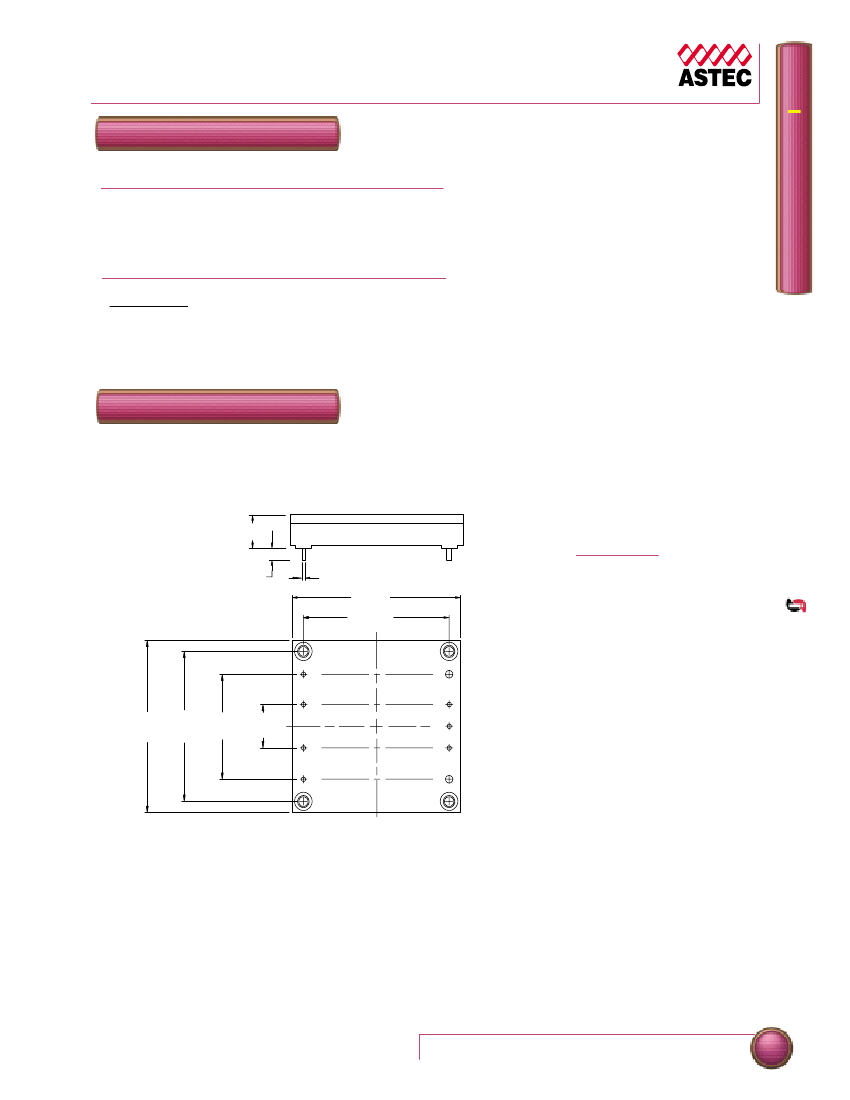

162

USA: 1-888-41-ASTEC

Europe (UK): +44(0)1384-842211

Asia (HK): 852-2437-9662
