LOW PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
AISC-1008LP
FEATURES:
• Wire wound Ceramic Construction
Provides
High SRFs and Exceptional Q Values
• Outstanding Endurance from Pull-up Force,
Mechanical Shock and Pressure
• Tighter Tolerance of ±2%, Low Profile
Construction
• Working Temperature Range : -40
°C ~ 125 °C
Pb
RoHS
Compliant
APPLICATIONS:
2.92 x 2.79 x 1.40mm
| | | | | | | | | | | | | | |
• Widely applied in the VCO, RF module, remote controller
and security system
• Cellular Phone (CDMA/GSM/PHS), Wireless PDA,
• Base Station, Repeater, GPS Receiver
• CATV Filter, Tuner, Set Top Box,
Cable Modem/ XDSL Tuner
• USB 2.0, IEEE 1394
ELECTRICAL SPECIFICATIONS:
PARAMETERS
ABRACON P/N: AISC-1008LP Series
Operating temperature: -40°C to + 125°C
Storage temperature: -40°C to + 85°C, 70% RH max.
Part Number
AISC-1008LP-3N3
AISC-1008LP-4N2
AISC-1008LP-6N8
AISC-1008LP-8N2
AISC-1008LP-15N
AISC-1008LP-18N
AISC-1008LP-20N
AISC-1008LP-27N
AISC-1008LP-30N
AISC-1008LP-40N
AISC-1008LP-50N
AISC-1008LP-60N
AISC-1008LP-70N
AISC-1008LP-80N
AISC-1008LP-R18
AISC-1008LP-R56
AISC-1008LP-1R0
Inductance (L)
@Test Freq.
(nH)
3.3 @ 50 MHz
4.2 @ 50 MHz
6.8 @ 50 MHz
8.2 @ 50 MHz
15 @ 50 MHz
18 @ 50 MHz
20 @ 50 MHz
27 @ 50 MHz
30 @ 50 MHz
40 @ 50 MHz
50 @ 50 MHz
60 @ 50 MHz
70 @ 50 MHz
80 @ 50 MHz
180 @ 50 MHz
560 @ 25 MHz
1000 @ 25 MHz
Tolerance
(±%)
5,10
5,10
5,10
5,10
5,10
5,10
5,10
5,10
5,10
5,10
2,5,10
2,5,10
2,5,10
2,5,10
2,5,10
2,5,10
5,10
Q, Min
@Test Freq.
42 @ 1500 MHz
42 @ 1500 MHz
50 @ 1500 MHz
50 @ 1500 MHz
57 @ 500 MHz
50 @ 350 MHz
72 @ 500 MHz
50 @ 350 MHz
69 @ 500 MHz
67 @ 500MHz
72 @ 500MHz
75 @ 500MHz
68 @ 500MHz
75 @ 500MHz
50 @ 350MHz
40 @ 100MHz
35 @ 50MHz
SRF
Min
(GHz)
6
6
5.4
5
3
2.4
2.4
1.6
2.4
2
1.9
1.8
1.7
1.4
0.9
0.415
0.35
R
DC
Max
0.03
0.15
0.17
0.22
0.22
0.12
0.33
0.13
0.38
0.43
0.48
0.52
0.55
0.56
0.4
1.33
3.7
I
DC
Max
(mA)
1000
1000
1000
1000
1000
1000
1000
850
600
600
600
600
510
510
450
400
300
Color
Code
White
Black
Brown
Red
Orange
Gray
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Blue
Red
Blue
Test Equipment
1. For SMT inductor, the inductance value(L) is measured by using HP4291B impedance analyzer
2. RDC measured by using Micro-ohm meter (GOM-801G)
3. For SMT inductor , the quality factor (Q) is measured by using HP4291B impedance analyzer
4. For SMT inductor ,SRF is measured by using HP8753 network analyzer
OPTIONS AND PART IDENTIFICATION
AISC - 1008LP -
Inductance Code
Please refer to the Table
Tolerance Code
G
±2%
J
±5%
K
±10%
Packaging Code
T
Tape & Reel
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.11.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
LOW PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
AISC-1008LP

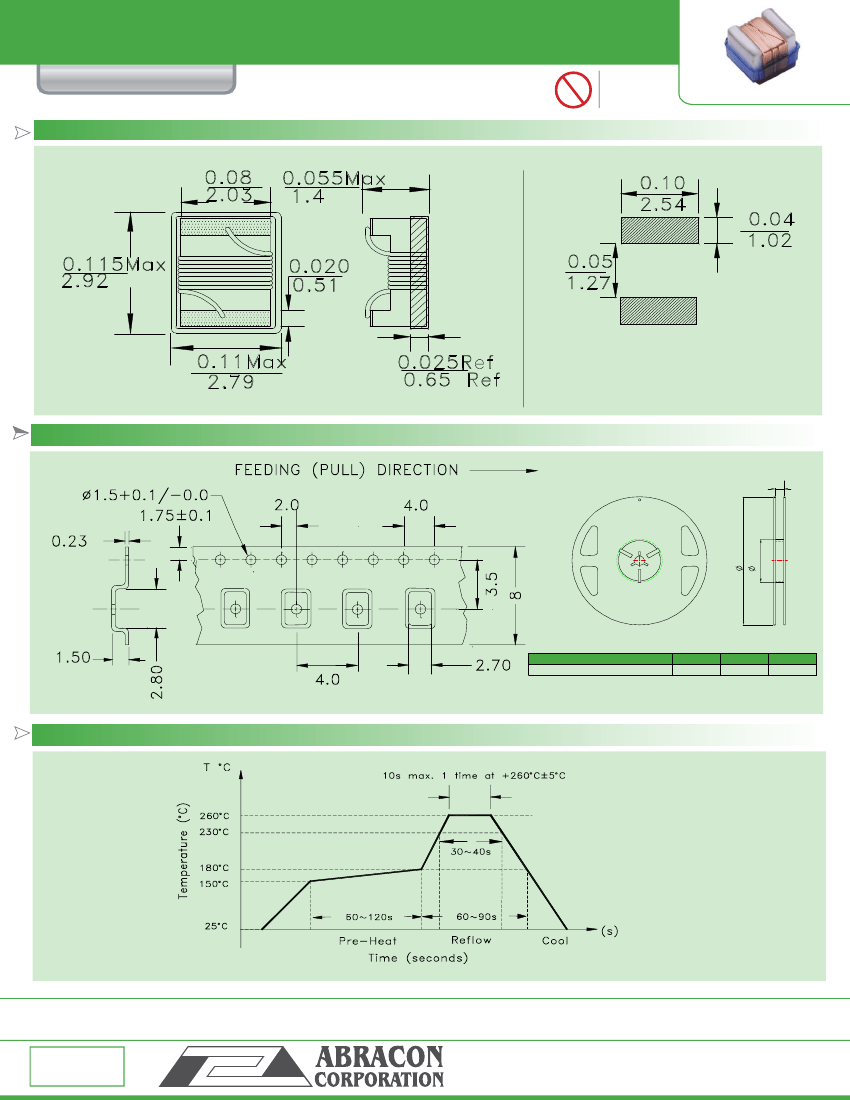

OUTLINE DRAWING:
Pb
RoHS
Compliant
2.92 x 2.79 x 1.40mm
| | | | | | | | | | | | | | |
Recommended Land Pattern
Dimension : Inches/mm
TAPE & REEL:
Tape and reel 2,000pcs/reel
Series
AISC-1008LP
A
178±2.0
A
Z
C
9±0.3
Z
60±0.5
Dimensions: mm
REFLOW PROFILE:
NOTE:
Abracon manufactured products are intended for general commercial and industrial use. For applications requiring
high reliability and/or presenting extreme operating environment, written consent & authorization from Abracon is required.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.11.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
