0805 CHIP INDUCTORS
Outgassing Compliant Chip Inductors
AS336RAD
The AE336RAD inductors provide exceptional Q values,
even at high frequencies. They have a ceramic body and
wire wound construction to provide the highest SRFs,
tight inductance tolerance and batch consistency.
This robust version of Coilcraft’s standard 0805HQ series
features high temperature materials that pass NASA low
outgassing specifications and allow operation in ambi-
ent temperatures up to 155°C. The leach-resistant base
metalization with tin-lead (Sn-Pb) terminations ensures
the best possible board adhesion.
Part number
1
Inductance
2
(nH)
2.5 @ 250 MHz
5.6 @ 250 MHz
6.2 @ 250 MHz
12 @ 250 MHz
16 @ 250 MHz
18 @ 250 MHz
20 @ 250 MHz
27 @ 250 MHz
30 @ 250 MHz
39 @ 250 MHz
48 @ 200 MHz
51 @ 200 MHz
Percent
tolerance
5
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
Q min
3
SRF min
4
(GHz)
>5.00
4.88
4.55
2.80
2.40
2.20
2.05
2.00
1.74
1.60
1.40
1.28
DCR max
5
(Ohms)
0.020
0.035
0.035
0.045
0.060
0.060
0.060
0.070
0.095
0.110
0.095
0.120
Imax
(A)
2.0
1.9
1.8
1.6
1.4
1.4
1.4
1.3
1.1
1.0
1.1
0.9
AS336RAD2N5JSZ
AS336RAD5N6JSZ
AS336RAD6N2JSZ
AS336RAD12NJSZ
AS336RAD16N_SZ
AS336RAD18N_SZ
AS336RAD20N_SZ
AS336RAD27N_SZ
AS336RAD30N_SZ
AS336RAD39N_SZ
AS336RAD48N_SZ
AS336RAD51N_SZ
56 @ 1000 MHz
83 @ 1000 MHz
80 @ 1000 MHz
52 @ 500 MHz
72 @ 500 MHz
70 @ 500 MHz
54 @ 250 MHz
58 @ 250 MHz
50 @ 250 MHz
53 @ 250 MHz
44 @ 150 MHz
36 @ 150 MHz
1. When ordering, please specify
tolerance
and
testing
codes:
AS336RAD51NGSZ
Tolerance: G
= 2%
J
= 5%
Testing:
Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10003
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP
4286 impedance analyzer or equivalent with Coilcraft-provided correla-
tion pieces.
3. Q measured at the same frequency as inductance using an Agilent/HP
4291A with an Agilent/HP 16197 test fixture or equivalents.
4. SRF measured using an Agilent/HP 8753ES network analyzer or
equivalent and a Coilcraft SMD-D test fixture.
5. DCR measured on a Keithley 580 micro-ohmmeter or equivalent and a
Coilcraft CCF858 test fixture.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel
Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing,
1.65 mm pocket depth
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AS197-1
Revised 03/10/11
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2011
Phone 800-981-0363
Fax 847-639-1508
E-mail cps@coilcraft.com
Web www.coilcraft-cps.com

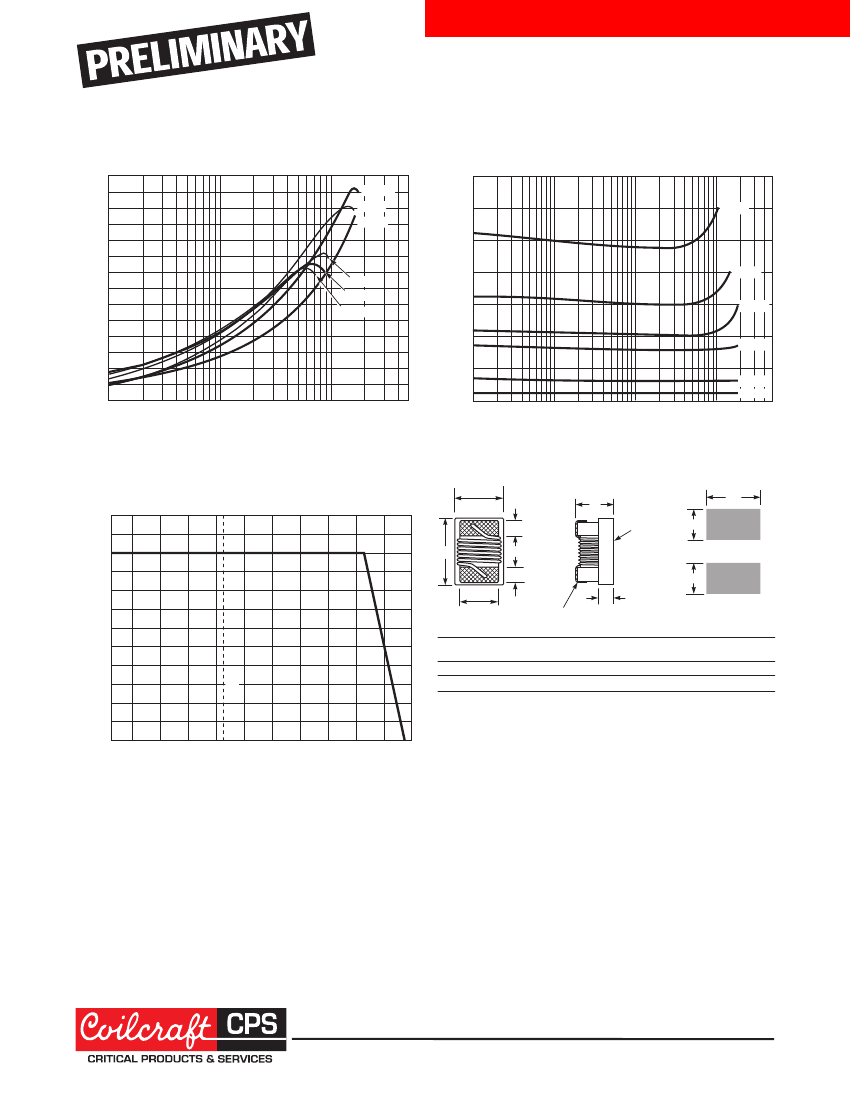

0805 CHIP INDUCTORS
AS336RAD Series (0805)
Typical Q vs Frequency
140
120
100
Typical L vs Frequency
70
6.2 nH
16 nH
2.5 nH
60
50
40
30
20
10
0
30 nH
20 nH
48 nH
80
60
40
20
0
20 nH
30 nH
48 nH
Inductance (nH)
Q Factor
16 nH
6.2 nH
2.5 nH
1
10
100
1000
5000
10
100
1000
5000
Frequency (MHz)
Frequency (MHz)
Irms Derating
120
110
100
A
B
overall
F
G
F
E
terminal
C
H
Pick and
place
material
I
J
I
Percent of rated
I
rms
90
80
70
60
50
D
Terminal wraparound:
approx 0.015/0,38 both ends
Suggested
Recommended
Land Pattern
Land Pattern
30
20
10
0
-55 -40
-20
0
20
25°C
40
A
B
C
D
max max max ref
E
F
G
H
I
J
0.090 0.068 0.060 0.020 0.050 0.020 0.040 0.070 0.040 0.030 inches
2,29 1,73 1,52 0,51 1,27 0,51 1,02 1,78 1,02 0,76 mm
Note: Dimensions are before solder application. For maximum overall
dimensions including solder, add 0.0025 in / 0,064 mm to
B
and
0.006 in / 0,15 mm to
A
and
C.
40
60
80
100
120
140 160
Ambient temperature (°C)
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AS197-2
Revised 03/10/11
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2011
Phone 800-981-0363
Fax 847-639-1508
E-mail cps@coilcraft.com
Web www.coilcraft-cps.com
