1500-15-128 datasheet, PDF - EEWORLD Datasheet

1500-15-128: DescriptionCard Edge Connector, 15 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, White Insulator; CategoryThe connector The connector; File Size356KB，3 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

1500-15-128 Overview

Card Edge Connector, 15 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, White Insulator

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	GREEN STRIPE FOR WIRE GAUGE ID
subject depth	0.56 inch
body length	1.6 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	500000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED NYLON
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	1500
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	250u inch
Rated current (signal)	3.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	15
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.556 N
Base Number Matches	1

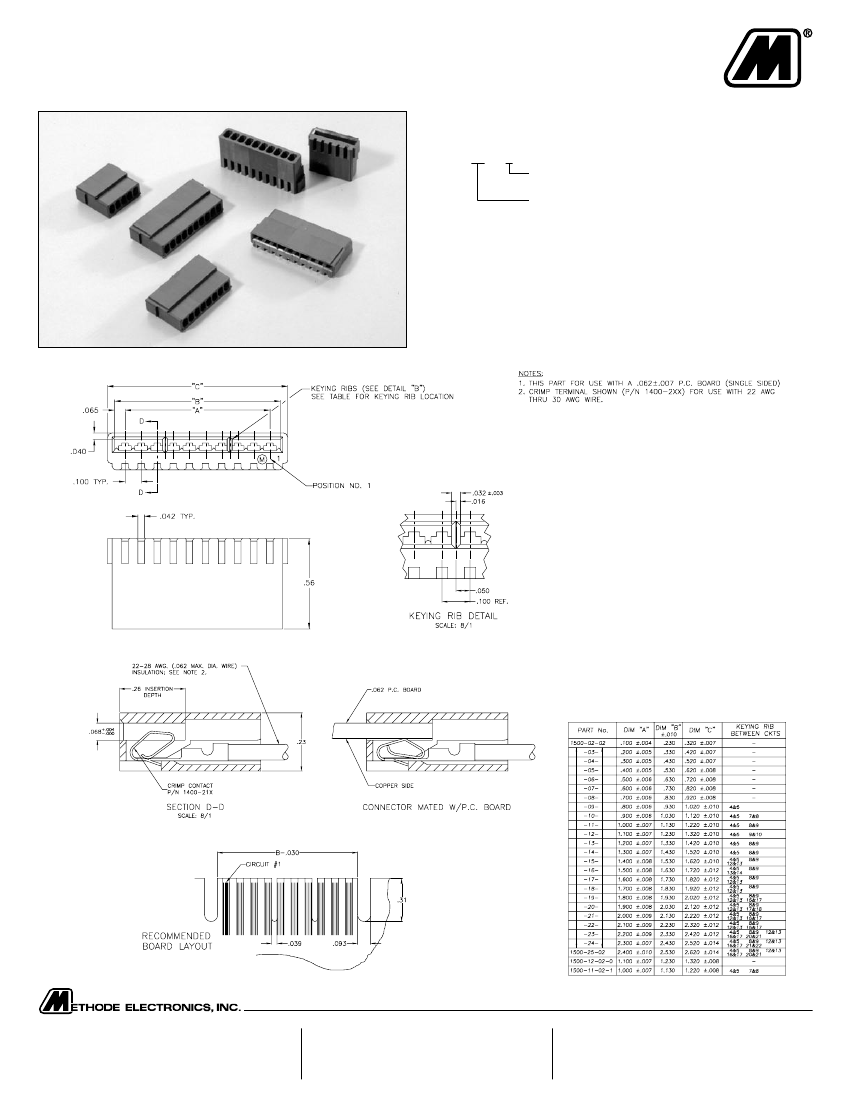

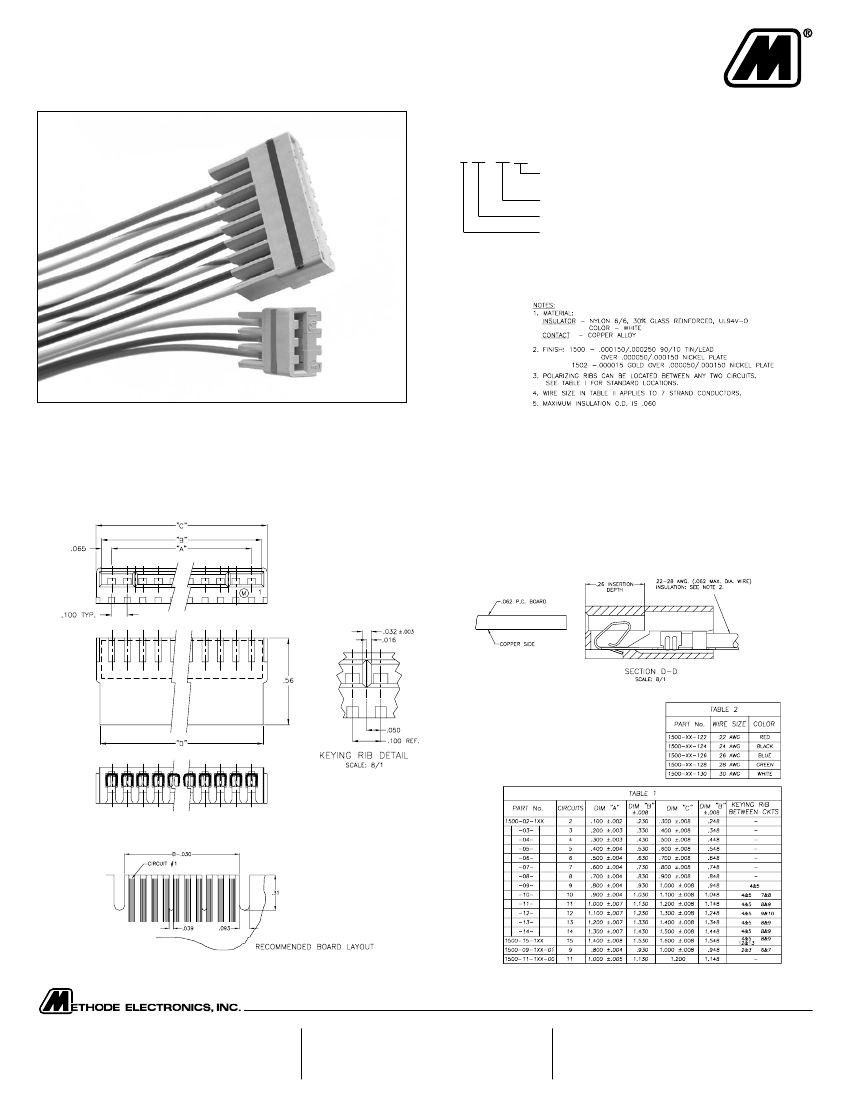

.100" (2.54 mm)

Card Edge Crimp Connector

1500 SERIES

PART NUMBER LEGEND

1500-XX-02-X

DENOTES CUSTOM KEY LOCATION

(SEE TABLE FOR LOCATION)

NUMBER OF POSITIONS

(SEE TABLE I)

Mating Crimp Contact:

14XX-1XX Series

3. HOUSING MATERIAL: POLYESTER, 15% G.F., UL94V0

COLOR: BLACK

TABLE 1

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
