BR38-B

Description
Bridge Rectifier Diode,
CategoryDiscrete semiconductor    diode
File Size78KB,5 Pages
ManufacturerRectron Semiconductor
Websitehttp://www.rectron.com/
Download Datasheet Parametric Compare View All

BR38-B Overview

Bridge Rectifier Diode,

BR38-B Parametric

Parameter NameAttribute value
package instructionS-PUFM-W4
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresUL LISTED
Minimum breakdown voltage800 V
ConfigurationBRIDGE, 4 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
JESD-30 codeS-PUFM-W4
Maximum non-repetitive peak forward current50 A
Number of components4
Phase1
Number of terminals4
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current3 A
Package body materialPLASTIC/EPOXY
Package shapeSQUARE
Package formFLANGE MOUNT
Maximum repetitive peak reverse voltage800 V
surface mountNO
Terminal formWIRE
Terminal locationUPPER
Base Number Matches1

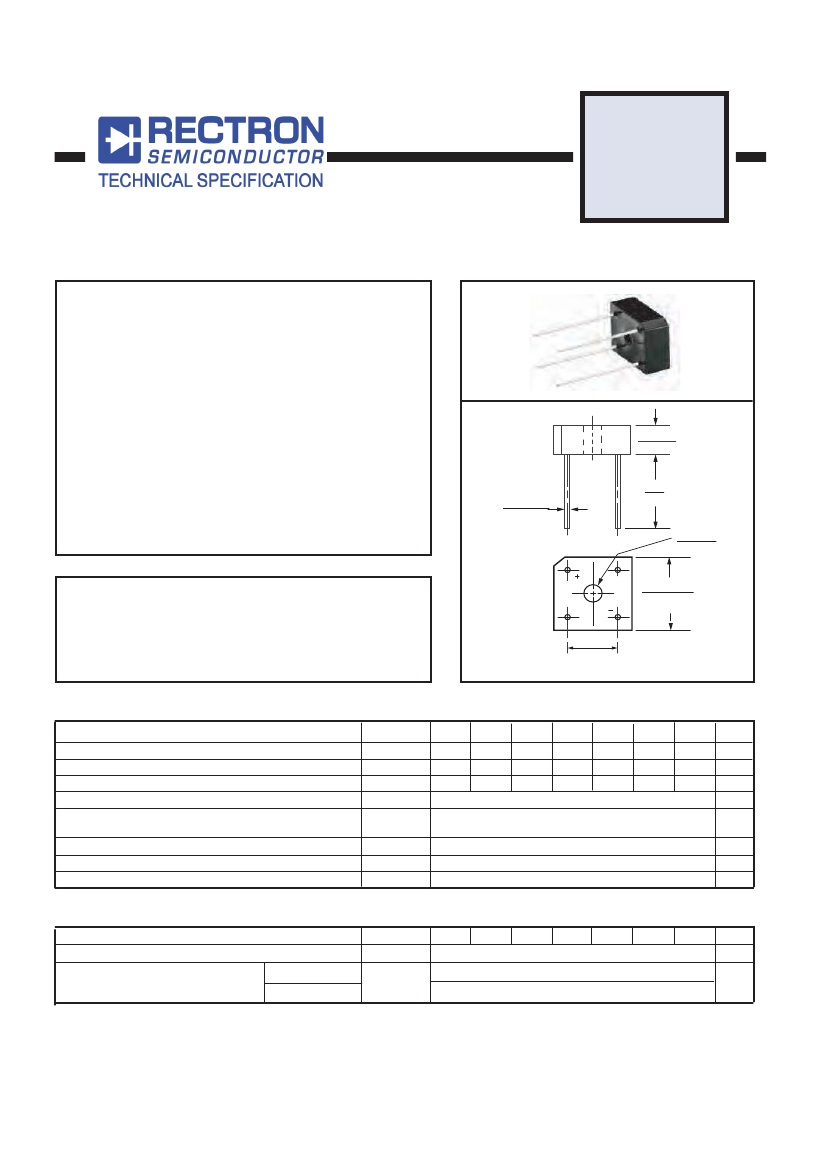

BR305
THRU
SINGLE-PHASE SILICON BRIDGE RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Amperes
FEATURES
* Surge overload rating: 200 amperes peak
* Low forward voltage drop
BR310
MECHANICAL DATA
*
*
*
*
UL listed the recognized component directory, file #E94233
Epoxy: Device has UL flammability classification 94V-O
Lead: Mil-STD-202E method 208C guaranteed
Mounting position: Any
BR-3
.270(6.86)
.230(5.84)
.032 (0.81)
.028 (0.71)
.967
MIN.
(24.5)
.158 (4.0)
.154 (3.9)
AC
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
.445(11.31)
.405(10.29)
o
.620(15.71)
.580(14.96)
AC
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(At T
A
= 25 C unless otherwise noted)
o
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Tc = 50 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
o
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
BR305
50
35
50
BR31
100
70
100
BR32
200
140
200
BR34
400
280
400
3.0
50
10.3
BR36
600
420
600
BR38
800
560
800
BR310
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
Operating Temperature Range
Storage Temperature Range
ELECTRICAL CHARACTERISTICS
(At T
A
= 25 C unless otherwise noted)
o
T
J
T
STG
-55 to + 150
-55 to + 150
0
0
C
C
CHARACTERISTICS
Maximum Forward Voltage Drop per element at 1.5A DC
Maximum Reverse Current at Rated
DC Blocking Voltage per element
@T
A
= 25 C
@T
C
= 100 C
o
o
SYMBOL
V
F
I
R
BR305
BR31
BR32
BR34
1.0
5.0
200
BR36
BR38
BR310
UNITS
Volts
uAmps
2014-08
REV: A
NOTES : 1. Thermal Resistance : Mounted on PCB.
2. “Fully ROHS compliant”, “100% Sn plating (Pb-free)”.
3. Available in Halogen-free epoxy by adding suffix -HF after the part nbr.

BR38-B Related Products

BR38-B BR32-B BR32-HF-B BR38-HF-B BR34-B BR34-HF-B
Description Bridge Rectifier Diode, Bridge Rectifier Diode, Bridge Rectifier Diode, Bridge Rectifier Diode, Bridge Rectifier Diode, Bridge Rectifier Diode,
package instruction S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4
Reach Compliance Code compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features UL LISTED UL LISTED UL LISTED UL LISTED UL LISTED UL LISTED
Minimum breakdown voltage 800 V 200 V 200 V 800 V 400 V 400 V
Configuration BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON
Diode type BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
JESD-30 code S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4
Maximum non-repetitive peak forward current 50 A 50 A 50 A 50 A 50 A 50 A
Number of components 4 4 4 4 4 4
Phase 1 1 1 1 1 1
Number of terminals 4 4 4 4 4 4
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Maximum output current 3 A 3 A 3 A 3 A 3 A 3 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape SQUARE SQUARE SQUARE SQUARE SQUARE SQUARE
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Maximum repetitive peak reverse voltage 800 V 200 V 200 V 800 V 400 V 400 V
surface mount NO NO NO NO NO NO
Terminal form WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location UPPER UPPER UPPER UPPER UPPER UPPER
Base Number Matches 1 1 1 1 - -
