B59860-C160-A70 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> B59860-C160-A70

B59860-C160-A70: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC, 15ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size149KB，10 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B59860-C160-A70 Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC, 15ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

B59860-C160-A70 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	DISK PACKAGE
method of packing	STRIP PACK
Rated (AC) voltage (URac)	110 V
resistance	15 Ω
Resistor type	PTC THERMISTOR
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	OVERLOAD PROTECTION
Tolerance	25%
Base Number Matches	1

Preview

Download Datasheet

View All

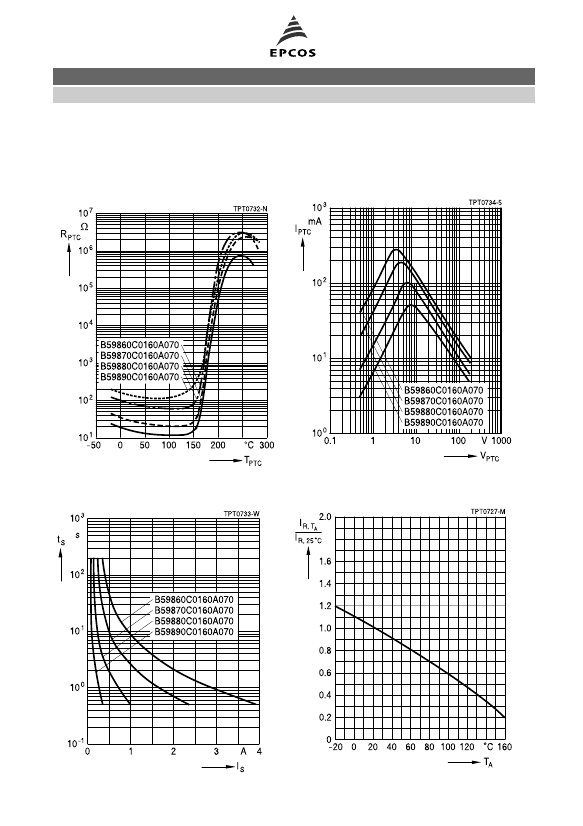

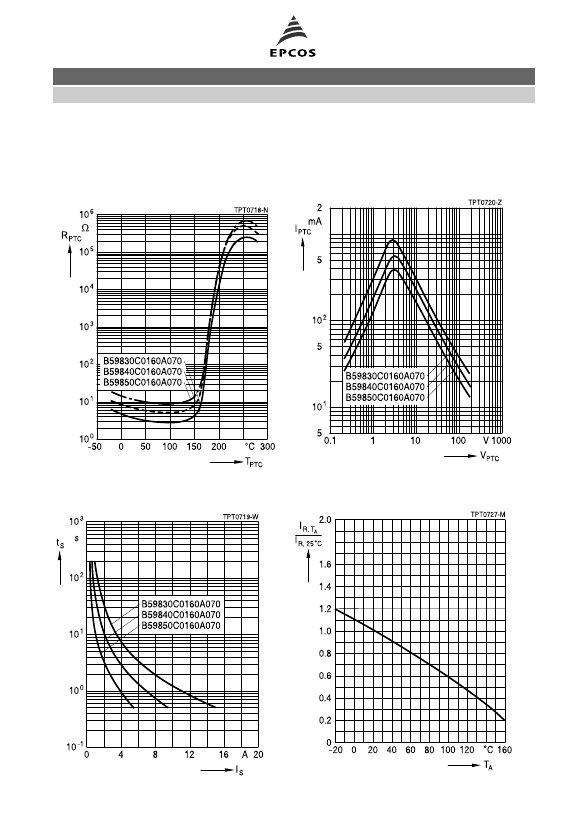

PTC thermistors for

overcurrent protection

Leaded disks, coated, 110 V

Series/Type:

Date:

B598*0

February 2012

information contained therein without EPCOS' prior express consent is prohibited.

B59860-C160-A70 Related Products

	B59860-C160-A70	B59850-C160-A70	B59830-C160-A70	B59840-C160-A70	B59870-C160-A70	B59880-C160-A70	B59890-C160-A70
Description	RESISTOR, TEMPERATURE DEPENDENT, PTC, 15ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 10ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 3.7ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 6ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 25ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 70ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 150ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE
method of packing	STRIP PACK	STRIP PACK	STRIP PACK	STRIP PACK	STRIP PACK	STRIP PACK	STRIP PACK
Rated (AC) voltage (URac)	110 V	110 V	110 V	110 V	110 V	110 V	110 V
resistance	15 Ω	10 Ω	3.7 Ω	6 Ω	25 Ω	70 Ω	150 Ω
Resistor type	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Thermistor Applications	OVERLOAD PROTECTION	OVERLOAD PROTECTION	OVERLOAD PROTECTION	OVERLOAD PROTECTION	OVERLOAD PROTECTION	OVERLOAD PROTECTION	OVERLOAD PROTECTION
Tolerance	25%	25%	25%	25%	25%	25%	25%
Base Number Matches	1	1	1	1	1	-	-
ECCN code	-	-	EAR99	-	EAR99	EAR99	EAR99
