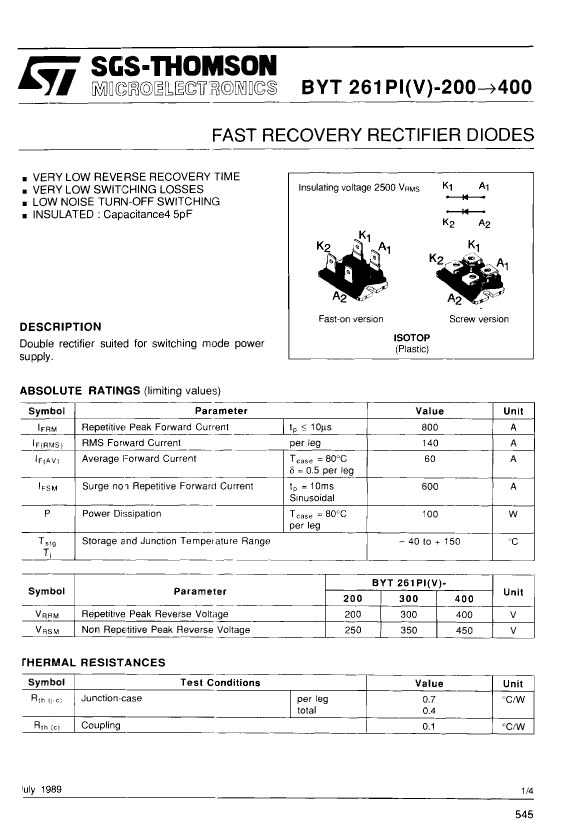

BYT261PI-300 Overview

60A, 300V, SILICON, RECTIFIER DIODE

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

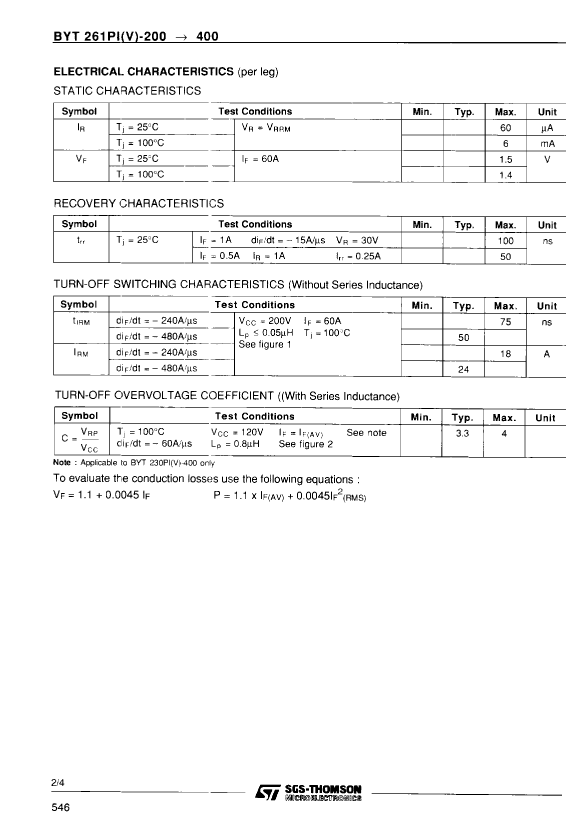

Maximum forward voltage (VF)	1.5 V
JESD-30 code	R-PUFM-D4
Maximum non-repetitive peak forward current	600 A
Number of components	2
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	60 A

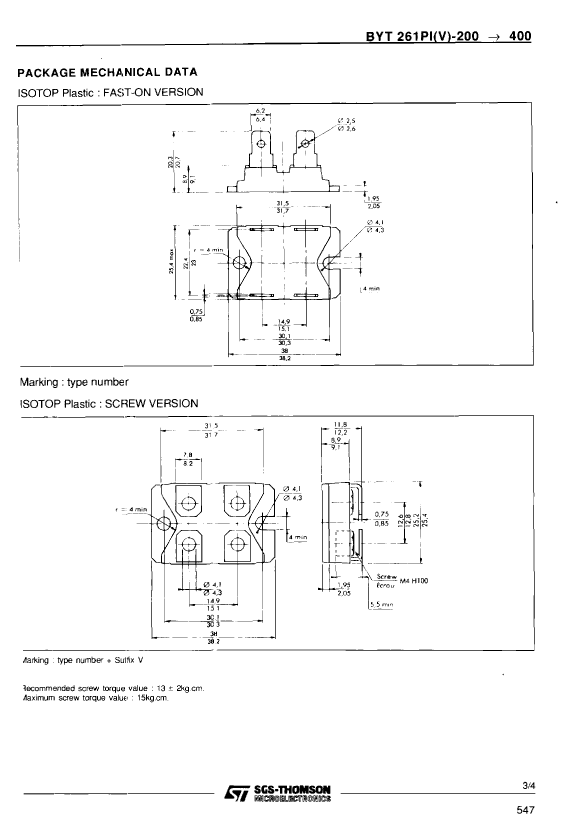

Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum power dissipation	200 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	60 µA
Maximum reverse recovery time	0.1 µs
Reverse test voltage	300 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

	BYT261PI-300	BYT261PI-200
Description	60A, 300V, SILICON, RECTIFIER DIODE	60A, 200V, SILICON, RECTIFIER DIODE
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.5 V
JESD-30 code	R-PUFM-D4	R-PUFM-D4
Maximum non-repetitive peak forward current	600 A	600 A
Number of components	2	2
Phase	1	1
Number of terminals	4	4
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	60 A	60 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Maximum power dissipation	200 W	200 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	200 V
Maximum reverse current	60 µA	60 µA
Maximum reverse recovery time	0.1 µs	0.1 µs
Reverse test voltage	300 V	200 V
surface mount	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
