DISCRETE SEMICONDUCTORS
DATA SHEET
BTA212X series B
Three quadrant triacs
high commutation
Product
specification
September 1997
1;3
Semiconductors
Product specification
Three quadrant triacs
high commutation
GENERAL DESCRIPTION
Glass passivated high commutation
triacs in a full pack, plastic envelope
intended for use in circuits where high
static and dynamic dV/dt and high
dI/dt can occur. These devices will
commutate the full rated rms current
at the maximum rated junction
temperature, without the aid of a
snubber.
BTA212X series B
QUICK REFERENCE DATA
SYMBOL
V
DRM
I
T(RMS)
I
TSM
PARAMETER
BTA212X-
Repetitive peak off-state
voltages
RMS on-state current
Non-repetitive peak on-state
current
MAX. MAX. MAX. UNIT
500B
500
12
95
600B
600
12
95
800B
800
12
95
V
A
A
PINNING - SOT186A
PIN
1
2
3
DESCRIPTION
main terminal 1
PIN CONFIGURATION
case
SYMBOL
T2
main terminal 2
gate
1 2 3
T1
case isolated
G
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum System (IEC 134).
SYMBOL
V
DRM
I
T(RMS)
I
TSM
PARAMETER
Repetitive peak off-state
voltages
RMS on-state current
Non-repetitive peak
on-state current
full sine wave;
T
hs
≤
56 ˚C
full sine wave;
T
j
= 25 ˚C prior to
surge
t = 20 ms
t = 16.7 ms
t = 10 ms
I
TM
= 20 A; I
G
= 0.2 A;
dI
G
/dt = 0.2 A/μs
CONDITIONS
MIN.
-
-
-500
500
1
MAX.
-600
600
1
12
-800
800
UNIT
V
A
I
2
t
dI
T
/dt
I
GM
V
GM
P
GM
P
G(AV)
T
stg
T
j
I
2
t for fusing
Repetitive rate of rise of
on-state current after
triggering
Peak gate current
Peak gate voltage
Peak gate power
Average gate power
Storage temperature
Operating junction
temperature
-
-
-
95
105
45
100
2
5
5
0.5
150
125
A
A
A
2
s
A/μs
A
V
W
W
˚C
˚C
over any 20 ms
period
-
-
-
-
-40
-
1
Although not recommended, off-state voltages up to 800V may be applied without damage, but the triac may
switch to the on-state. The rate of rise of current should not exceed 15 A/μs.
September 1997
1
Rev 1.200
1;3
Semiconductors
Product specification
Three quadrant triacs
high commutation
ISOLATION LIMITING VALUE & CHARACTERISTIC
T
hs
= 25 ˚C unless otherwise specified
SYMBOL
V
isol
PARAMETER
R.M.S. isolation voltage from all
three terminals to external
heatsink
CONDITIONS
f = 50-60 Hz; sinusoidal
waveform;
R.H.
≤
65% ; clean and dustfree
MIN.
-
BTA212X series B
TYP.
MAX.
2500
UNIT
V
C
isol
Capacitance from T2 to external f = 1 MHz
heatsink
-
10
-
pF
THERMAL RESISTANCES
SYMBOL
R
th j-hs
R
th j-a
PARAMETER
Thermal resistance
junction to heatsink
Thermal resistance
junction to ambient
CONDITIONS
full or half cycle
with heatsink compound
without heatsink compound
in free air
MIN.
-
-
-
TYP.
-
-
55
MAX.
4.0
5.5
-
UNIT
K/W
K/W
K/W
STATIC CHARACTERISTICS
T
j
= 25 ˚C unless otherwise stated
SYMBOL
I
GT
PARAMETER
Gate trigger current
2
CONDITIONS
V
D
= 12 V; I
T
= 0.1 A
T2+ G+
T2+ G-
T2- G-
T2+ G+
T2+ G-
T2- G-
MIN.
2
2
2
-
-
-
-
-
-
0.25
-
TYP.
18
21
34
31
34
30
31
1.3
0.7
0.4
0.1
MAX.
50
50
50
60
90
60
60
1.6
1.5
-
0.5
UNIT
mA
mA
mA
mA
mA
mA
mA
V
V
V
mA
I
L
Latching current
V
D
= 12 V; I
GT
= 0.1 A
I
H
V
T
V
GT
I
D
Holding current
On-state voltage
Gate trigger voltage
Off-state leakage current
V
D
= 12 V; I
GT
= 0.1 A
I
T
= 17 A
V
D
= 12 V; I
T
= 0.1 A
V
D
= 400 V; I
T
= 0.1 A; T
j
= 125 ˚C
V
D
= V
DRM(max)
; T
j
= 125 ˚C
DYNAMIC CHARACTERISTICS
T
j
= 25 ˚C unless otherwise stated
SYMBOL
dV
D
/dt
dI
com
/dt
t
gt
PARAMETER
Critical rate of rise of
off-state voltage
Critical rate of change of
commutating current
Gate controlled turn-on
time
CONDITIONS
V
DM
= 67% V
DRM(max)
; T
j
= 125 ˚C;
exponential waveform; gate open circuit
V
DM
= 400 V; T
j
= 125 ˚C; I
T(RMS)
= 12 A;
without snubber; gate open circuit
I
TM
= 12 A; V
D
= V
DRM(max)
; I
G
= 0.1 A;
dI
G
/dt = 5 A/μs
MIN.
1000
-
-
TYP.
4000
24
2
MAX.
-
-
-
UNIT
V/μs
A/ms
μs
2
Device does not trigger in the T2-, G+ quadrant.
September 1997
2
Rev 1.200
1;3
Semiconductors
Product specification
Three quadrant triacs
high commutation
BTA212X series B
20
Ptot / W
BT138
Ths(max) / C
= 180
45
15
IT(RMS) / A
BT138X
56 C
65
15
1
120
90
60
10
85
10
30
5
5
105
0
0
5
IT(RMS) / A
10
125
15
0
-50
0
50
Ths / C
100
150

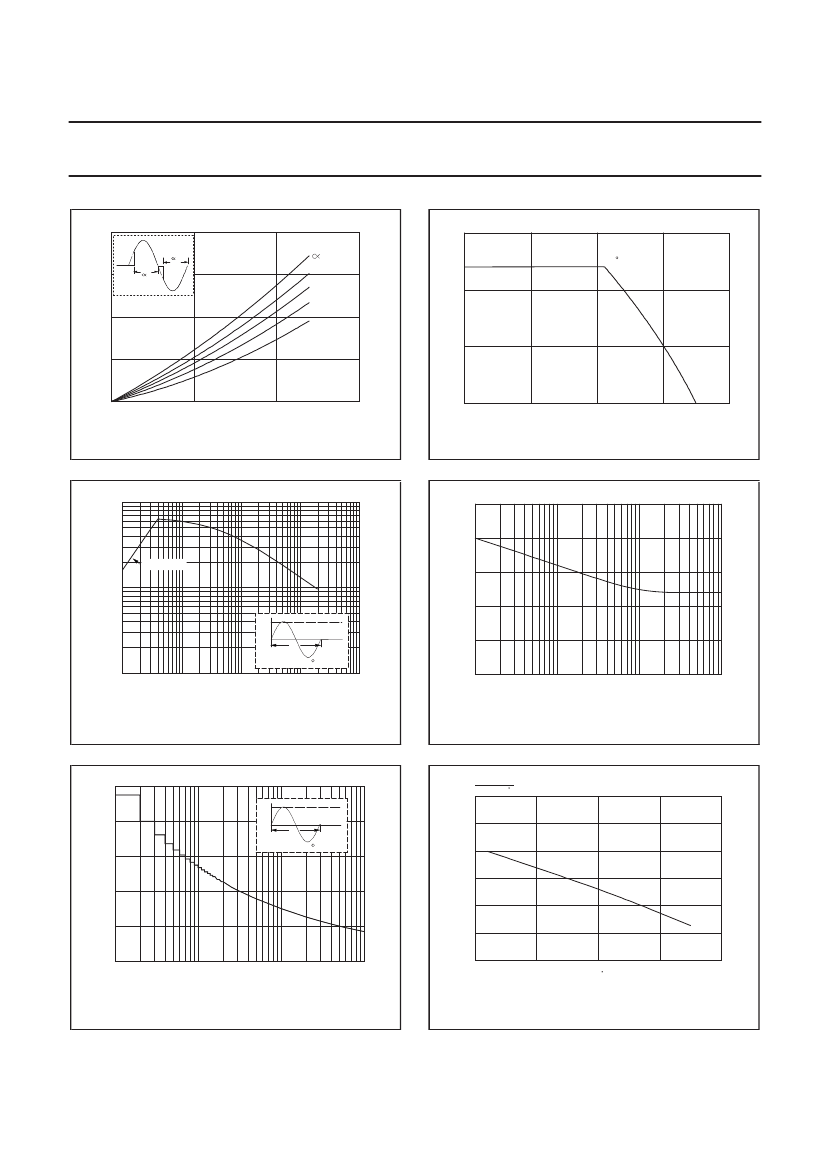

Fig.1. Maximum on-state dissipation, P
tot
, versus rms
on-state current, I
T(RMS)
, where
α
= conduction angle.
ITSM / A
BTA212
Fig.4. Maximum permissible rms current I
T(RMS)
,
versus heatsink temperature T
hs
.
1000
25
IT(RMS) / A
BT138
20
dI
T
/dt limit
100
15
10
IT
T
10
10us
I TSM
time
5
Tj initial = 25 C max
100us
1ms
T/s
10ms
100ms
0
0.01
0.1
1
surge duration / s
10
Fig.2. Maximum permissible non-repetitive peak
on-state current I
TSM
, versus pulse width t
p
, for
sinusoidal currents, t
p
≤
20ms.
ITSM / A
BT138
IT
80
T
ITSM
time
Fig.5. Maximum permissible repetitive rms on-state
current I
T(RMS)
, versus surge duration, for sinusoidal
currents, f = 50 Hz; T
hs
≤
56˚C.
VGT(Tj)
VGT(25 C)
100
1.6
1.4
1.2
1
BT136
Tj initial = 25 C max
60
40
0.8
20
0.6
0.4
-50
0
1
10
100
Number of cycles at 50Hz
1000
0
50
Tj / C
100
150
Fig.3. Maximum permissible non-repetitive peak
on-state current I
TSM
, versus number of cycles, for
sinusoidal currents, f = 50 Hz.
Fig.6. Normalised gate trigger voltage
V
GT
(T
j
)/ V
GT
(25˚C), versus junction temperature T
j
.
September 1997
3
Rev 1.200
