Low-Loss Filter for Mobile Communication
Data Sheet
B4152
1842,5 MHz
Ceramic package
DCC6D
Features
q
Low-loss RF filter for mobile telephone
q
q
q
q
q
PCN systems, receive path
Low amplitude ripple
Usable passband 75 MHz
Unbalanced to balanced operation
Package for
Surface Mounted Technology
(SMT)
Ceramic SMD package
Terminals
q
Ni, gold-plated
Dimensions in mm, approx. weight 0,037 g
Pin configuration
2
4, 6
1, 3
1, 3, 5
Input, unbalanced
Output, balanced
Input ground
To be grounded
Type
B4152
Ordering code
B39182-B4152-U510
Marking and Package
according to
C61157-A7-A68
Packing
according to
F61074-V8089-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
T
Storage temperature range
T
stg
DC voltage
V
DC
Input power max.
1710,0 ... 1785,0 MHz
– 10 / + 75
– 40 / + 85
5
˚C
˚C
V
source/load impedance
50Ω/50Ω
P
IN
13
dBm
peak power of GSM signal
duty cycle 2:8
2
May 23, 2001
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
Characteristics
Operating Temperature Range:
Terminating source impedance:
Terminating load impedance:
B4152
1842,5 MHz
T
= +25 +- 2˚C
Z
S
= 50
Ω
(unbalanced)
Z
L
= 50
Ω
(balanced)
min.
typ.
1842,5
max.
—
MHz
Center frequency
Maximum insertion attenuation
1805,0 ... 1880,0
Amplitude ripple
(p-p)
1805,0 ... 1880,0
Input VSWR
1805,0 ... 1880,0
Output VSWR
1805,0 ... 1880,0
Attenuation
0
1200,0
1650,0
1705,0
1920,0
1980,0
2050,0
... 1200,0
... 1650,0
... 1705,0
... 1785,0
... 1980,0
... 2000,0
... 6000,0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
f
C
α
max
MHz
∆α
MHz
—
—
3,0
3,8
dB
—
1,3
2,0
dB
—
2,8
3,0
dB
—
α
37
25
23
13
10
22
23
2,0
2,7
dB
41
35
32
15
13
27
30
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
3
May 23, 2001
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
Characteristics
Operating Temperature Range:
Terminating source impedance:
Terminating load impedance:
B4152
1842,5 MHz
T
= -10 to +75˚C
Z
S
= 50
Ω
(unbalanced)
Z
L
= 50
Ω
(balanced)
min.
typ.
1842,5
max.
—
MHz
Center frequency
Maximum insertion attenuation
1805,0 ... 1880,0
Amplitude ripple
(p-p)
1805,0 ... 1880,0
Input VSWR
1805,0 ... 1880,0
Output VSWR
1805,0 ... 1880,0
Attenuation
0
1200,0
1650,0
1705,0
1920,0
1980,0
2050,0
... 1200,0
... 1650,0
... 1705,0
... 1785,0
... 1980,0
... 2000,0
... 6000,0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
f
C
α
max
MHz
∆α
MHz
—
—
3,2
4,3
dB
—
1,5
2,5
dB
—
2,8
3,3
dB
—
α
37
25
23
10
9
22
23
2,1
3,0
dB
41
35
32
15
13
26
30
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
4
May 23, 2001
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet

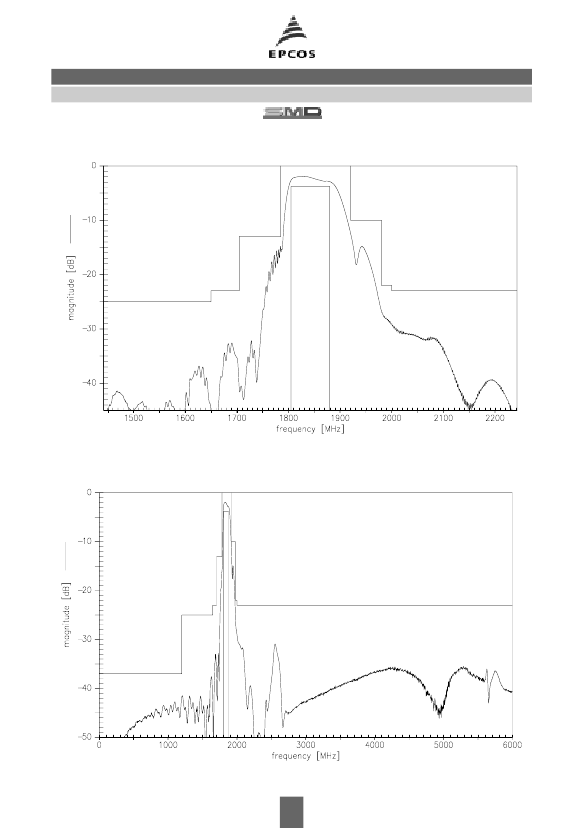

Transfer function
B4152
1842,5 MHz
Transfer function
(wide band)
5
