RK73A2ALBC363G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RK73A2ALBC363G

RK73A2ALBC363G: DescriptionFixed Resistor, 0.1W, 36000ohm, 150V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP; CategoryPassive components The resistor; File Size195KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RK73A2ALBC363G Overview

Fixed Resistor, 0.1W, 36000ohm, 150V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP

RK73A2ALBC363G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	36000 Ω
Resistor type	FIXED RESISTOR
size code	0805
surface mount	YES
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	150 V
Base Number Matches	1

Preview

Download Datasheet

View All

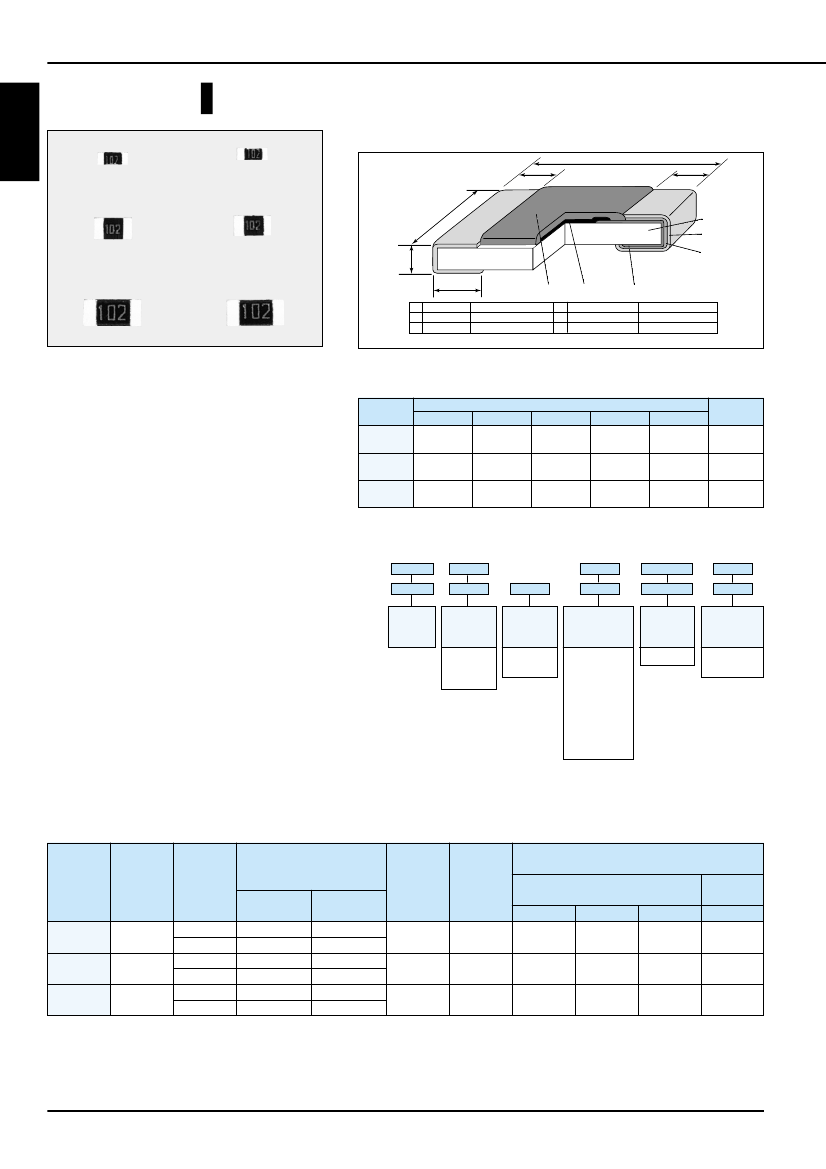

FLAT CHIP

(

AUDIO CIRCUIT

)

角½面実装抵抗器

Flat Chip Resistors

RK73A

音質用チップ抵抗器

High Quality Sound Chip Resistors

■構造図 Construction

⑥

⑤

① 保護膜 Protective coating

② 抵抗皮膜 Resistive film

③ 内部電極 Inner electrode

①

②

③

④

④ ニッケルめっき

⑤ はんだめっき

⑥ セラミック

Ni plating

Solder plating

Ceramic substrate

外装色：黒 Coating color：Black

■用途 Applications

オーディオ機器（CDプレーヤー・アンプ等）

●

ビジュアル機器（Hi-Fiビデオ・DVDプレーヤー等）

●

その他アナログ信号回路

●

リフロー、フローはんだに対応します。

●

端子鉛フリー品は、RoHS対応です。電極、抵抗、

ガラスに含まれる鉛ガラスはRoHSの適用除外です。

●

Audio Equipment (CD½Amplifier)

●

Visual Equipment (Hi-Fi Video½DVD Player)

●

Other Analog Signal Processing Circuits.

●

Suitable for both reflow and flow solderings.

●

Products with lead free termination meet RoHS

requirements. RoHS regulation is not intended for

Pb-glass contained in electrode, resistor element

and glass.

●

■外½寸法 Dimensions

½名 Type

（Inch Size Code）

（0603）

（0805）

（1206）

L±0.2

1.6

2.0

3.2

寸法 Dimensions （mm）

0.8±0.1

1.25±0.1

1.6±0.2

0.3±0.1

0.4±0.2

0.5±0.3

0.3±0.1

0.3

＋0.2

−0.1

0.4

＋0.2

−0.1

t±0.1

0.45

0.5

0.6

Weight

（g）

（1000pcs）

2.14

4.54

9.14

■品名構成 Type Designation

例 Example

Old Type RK73AD

New Type RK73A

品種

Product

Code

定格電力

Power

Rating

1J :0.063W

2A:0.1W

2B:0.125W

端子表面材質

Terminal

Surface Material

T：Sn

L：Sn/Pb

二次加工

Taping

TP: 2mm pitch

punch paper

TD: 4mm pitch

punch paper

TE: 4mm pitch

plastic

embossed

BC:Bulk case

BK:Bulk

10kΩ

103

公称抵抗値

Nominal

Resistance

3 digits

抵抗値許容差

Resistance

Tolerance

G:±2%

J:±5%

■参考規格 Reference Standards

IEC 60115-8

JIS C 5201-8

EIAJ RC-2134A

端子表面材質は鉛フリーめっき品が標準となります。

テーピングの詳細については巻末のAPPENDIX Cを参照して下さい。

For further information on taping, please refer to APPENDIX C on the back pages.

■定格 Ratings

抵抗値範囲

½ 名

Type

定格電力

Power

Rating

抵抗温度係数

T.C.R.

（×10

−6

/K）

±200

±250

±200

±250

±200

±250

G:±2％

E24

0.063W

0.1W00

0.125W

10∼1M

2.2∼9.1

10∼1M

2.2∼9.1

10∼1M

2.2∼9.1

Resistance Range

（Ω）

J:±5％

E24

10∼1M

2.2∼9.1

10∼1M

2.2∼9.1

10∼1M

2.2∼9.1

最高½用電圧最高過負荷電圧

Max.

Working

Voltage

50V

150V

200V

Max.

Overload

Voltage

100V

200V

400V

10,000

―

二次加工と包装数

Packaging & Q’ /Reel or Case

テーピング

Taping

5,000

―

4,000

バルクケース

Bulk Case

25,000

10,000

5,000

定格周囲温度 Rated Ambient Temperature :＋70℃

½用温度範囲 Operating Temperature Range :−55℃∼＋125℃

￣￣￣￣￣￣￣￣￣

定格電圧は

√

定格電力×公称抵抗値による算出値、又は表中の最高½用電圧のいずれか小さい値が定格電圧となります。

￣￣￣￣￣￣￣￣￣￣￣￣

Rated voltage＝

√

Power Rating×Resistance value or Max. working voltage, whichever is lower.

本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

www.koanet.co.jp
