BH014E0103KDD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> BH014E0103KDD

BH014E0103KDD: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 100V, 0.01uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size116KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

BH014E0103KDD Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 100V, 0.01uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE

BH014E0103KDD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	, 3010
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V):63
capacitance	0.01 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
high	6.5 mm
JESD-609 code	e3
length	7.5 mm
Manufacturer's serial number	BH01
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	TR
positive tolerance	10%
Rated (AC) voltage (URac)	63 V
Rated (DC) voltage (URdc)	100 V
series	BH01(100 VOLT)
size code	3010
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal pitch	5.08 mm
Terminal shape	WIRE
width	2.5 mm
Base Number Matches	1

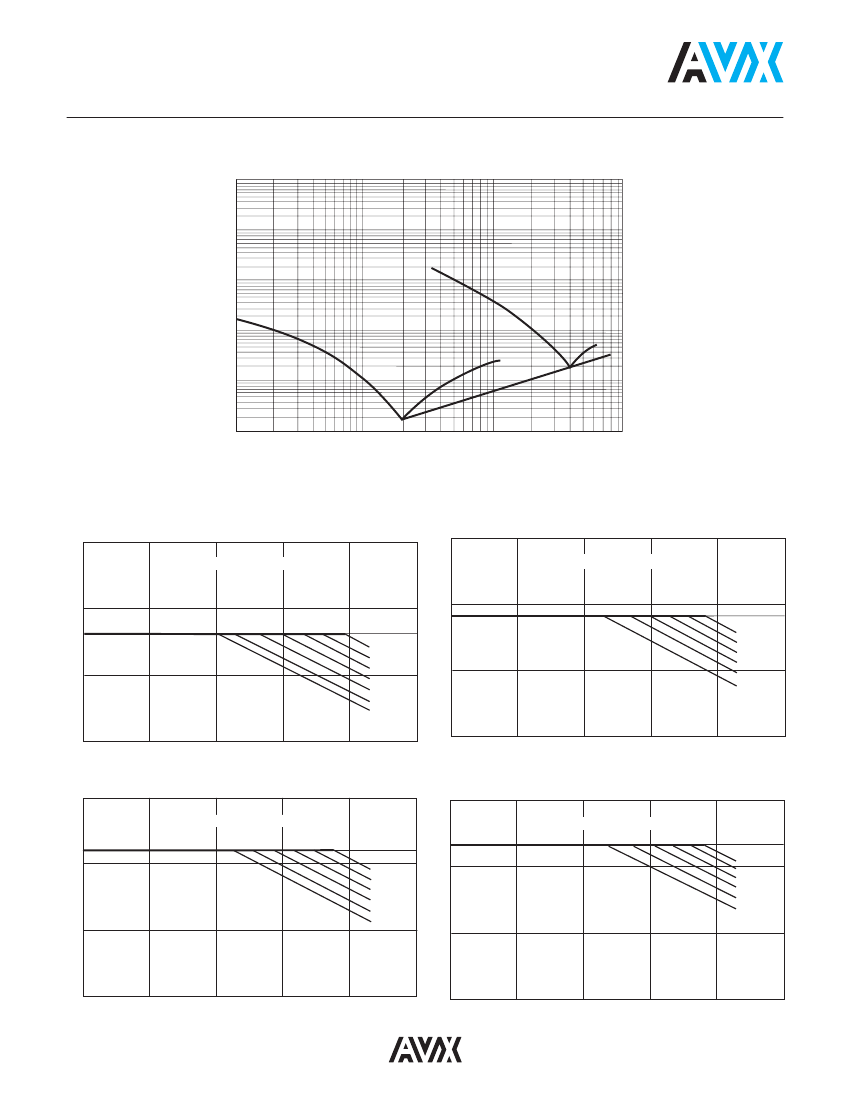

Preview

Download Datasheet

View All

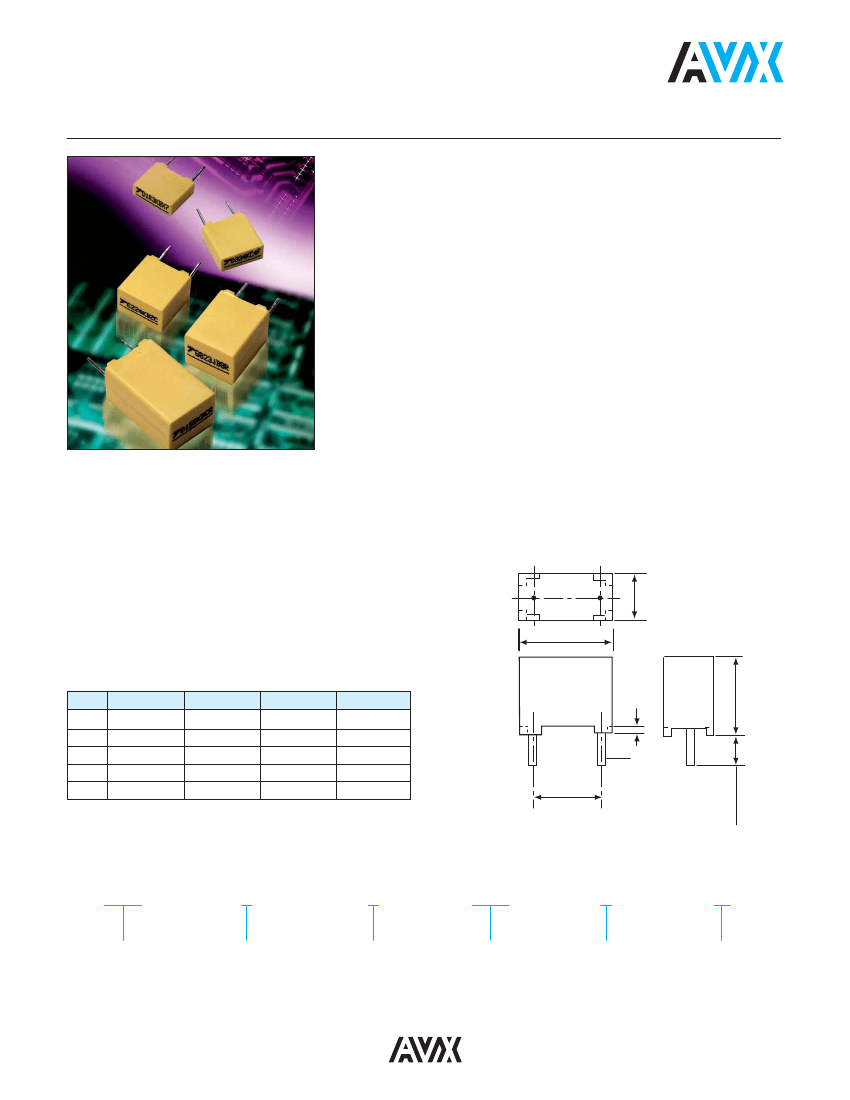

BH 01/02/07/06/05:

Radial Leads

(Lead Free Product)

CPM-N----- pitch = 5.08mm (0.200")

GENERAL DESCRIPTION

Dielectric: Metallized polyester film (Polyethylene teraphtalate)

Stacked-film

Leads: Radial tin - plated wire

Protection: Plastic case (UL 94: V-O) / Epoxy Resin

Marking: Logo

DC Normal Voltage

Nominial Capacitance

Tolerance (EIA)

Batch Code Number

Example: T D474KC8L

Delivery Mode: Bulk

Taped (reel or ammopack)

STANDARDIZATION

Generic specifications:

CEI 384-1/CECC 30000

Sectional specifications:

CEI 384-2/CECC 30400

Complies to special specification CECC30401-069

On the LNZ List:

Complies with type CPM-N

RAQ2 production, equivalent AQAP-4 of NATO

APPLICATIONS

• Supply decoupling

• Filter

• Integrators

• Treatment of analog signals

• Rejection of line perturbations, etc.

Specifically designed of working in

severe environmental conditions such

as automotive applications: engine

control, multiplexing, system, etc.

0.4 (0.016) min

DIMENSIONS

Case

L max

7.5 (0.295)

H max

6.5 (0.256)

8.0 (0.315)

12.0 (0.472)

9.6 (0.378)

8.0 (0.315)

millimeters (inches)

e max

2.5 (0.098)

3.2 (0.126)

6.0 (0.236)

5.0 (0.197)

ø ± 0.02

0.5 (0.020)

(0.024)

5.08 (0.200)

+0.6 (0.004)

-0.1

*L dimension measured 3mm above base of case

HOW TO ORDER

BH01

0104

Type

Class

Voltage

Capacitance

Tolerance

Suffix

4.10 (0.161)

0.5 (0.020)

BH014E0103KDD Related Products

	BH014E0103KDD	BH014E0104K--	BH054E0105K--	BH054E0105KDD	BH074D0105KDD	BH074D0105K--	BH014D0104K--	BH014D0224KDD	BH054E0474KDA
Description	CAPACITOR, METALLIZED FILM, POLYESTER, 100V, 0.01uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE	CAPACITOR, METALLIZED FILM, POLYESTER, 100 V, 0.1 uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE	CAPACITOR, METALLIZED FILM, POLYESTER, 100 V, 1 uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE	CAPACITOR, METALLIZED FILM, POLYESTER, 100V, 1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE	CAPACITOR, METALLIZED FILM, POLYESTER, 63V, 1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE	CAPACITOR, METALLIZED FILM, POLYESTER, 63 V, 1 uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE	CAPACITOR, METALLIZED FILM, POLYESTER, 63 V, 0.1 uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE	CAPACITOR, METALLIZED FILM, POLYESTER, 63V, 0.22uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE	CAPACITOR, METALLIZED FILM, POLYESTER, 100V, 0.47uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	, 3010	,	,	, 3024	, 3020	,	,	, 3010	, 3024
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	RATED AC VOLTAGE (V):63	RATED AC VOLTAGE (V):63	RATED AC VOLTAGE (V):63	RATED AC VOLTAGE (V):63	RATED AC VOLTAGE (V):40	RATED AC VOLTAGE (V):40	RATED AC VOLTAGE (V):40	RATED AC VOLTAGE (V):40	RATED AC VOLTAGE (V):63
capacitance	0.01 µF	0.1 µF	1 µF	1 µF	1 µF	1 µF	0.1 µF	0.22 µF	0.47 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	BH01	BH01	BH05	BH05	BH07	BH07	BH01	BH01	BH05
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR	BULK	BULK	TR	TR	BULK	BULK	TR	AMMO PACK
positive tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%
Rated (DC) voltage (URdc)	100 V	100 V	100 V	100 V	63 V	63 V	63 V	63 V	100 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	MATTE TIN	MATTE TIN	Matte Tin (Sn)	Matte Tin (Sn)	MATTE TIN	MATTE TIN	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
ECCN code	EAR99	-	-	EAR99	EAR99	-	-	EAR99	EAR99
high	6.5 mm	-	-	12 mm	8 mm	-	-	6.5 mm	12 mm
length	7.5 mm	-	-	7.5 mm	7.5 mm	-	-	7.5 mm	7.5 mm
Number of terminals	2	-	-	2	2	-	-	2	2
Package form	Radial	-	-	Radial	Radial	-	-	Radial	Radial
Rated (AC) voltage (URac)	63 V	-	-	63 V	40 V	-	-	40 V	63 V
series	BH01(100 VOLT)	-	-	BH05(100 VOLT)	BH07(63 VOLT)	-	-	BH01(63 VOLT)	BH05(100 VOLT)
size code	3010	-	-	3024	3020	-	-	3010	3024
Terminal pitch	5.08 mm	-	-	5.08 mm	5.08 mm	-	-	5.08 mm	5.08 mm
width	2.5 mm	-	-	6 mm	5 mm	-	-	2.5 mm	6 mm
Base Number Matches	1	1	1	1	1	1	1	1	-
