BTB16-200AW datasheet, PDF - EEWORLD Datasheet

BTB16-200AW: DescriptionTRIAC,200V V(DRM),16A I(T)RMS,TO-220; CategoryAnalog mixed-signal IC Trigger device; File Size187KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

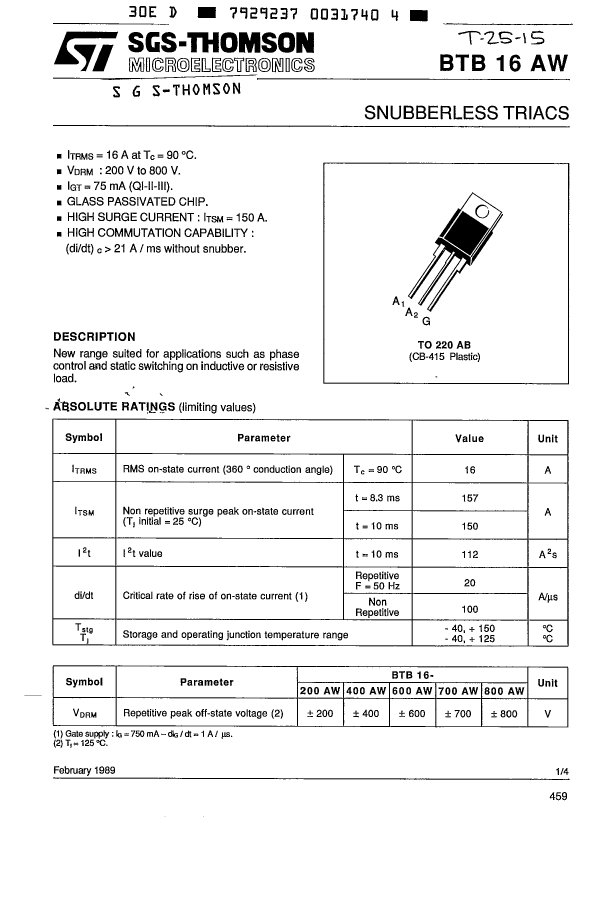

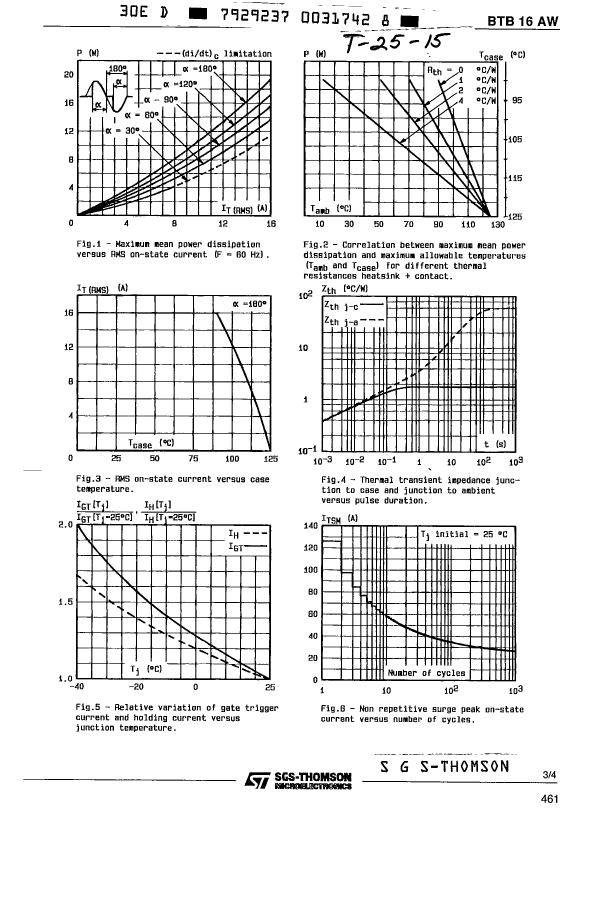

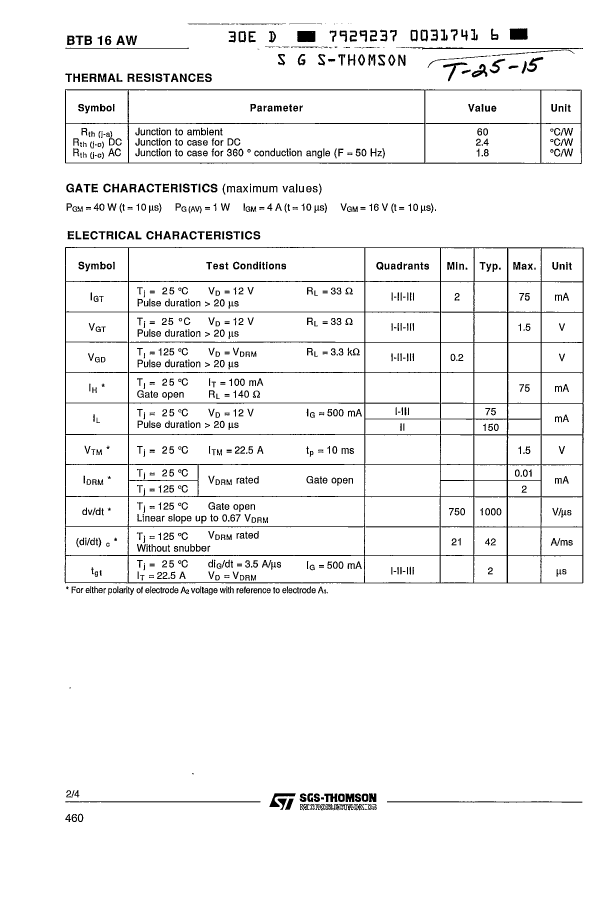

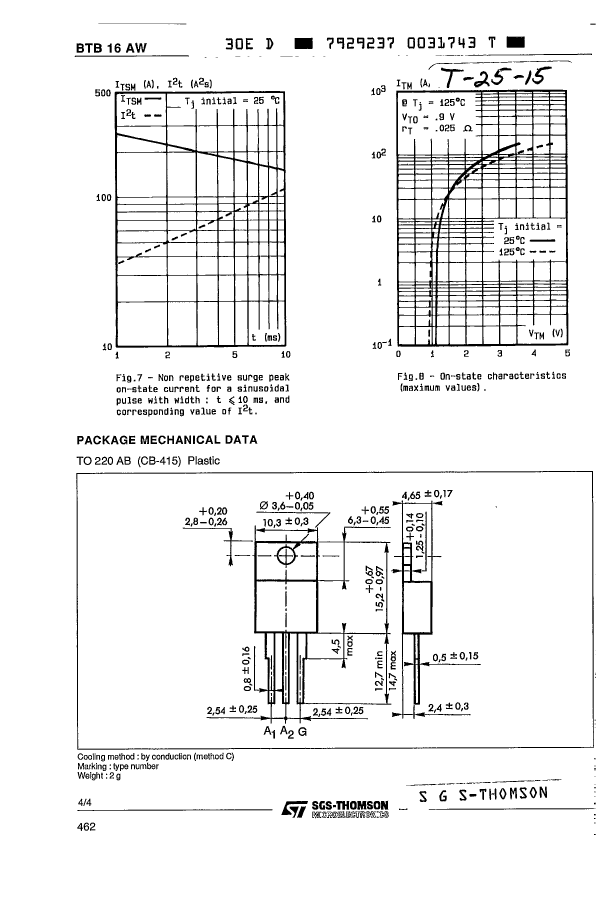

BTB16-200AW Overview

TRIAC,200V V(DRM),16A I(T)RMS,TO-220

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	not_compliant
Critical rise rate of commutation voltage - minimum value	21 V/us
Critical rise rate of minimum off-state voltage	750 V/us
Maximum DC gate trigger current	75 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	75 mA
JESD-609 code	e0
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	16 A
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC
Base Number Matches	1

	BTB16-200AW	BTB16-600AW	BTB16-400AW	BTB16-800AW	BTB16-700AW
Description	TRIAC,200V V(DRM),16A I(T)RMS,TO-220	TRIAC,600V V(DRM),16A I(T)RMS,TO-220	TRIAC,400V V(DRM),16A I(T)RMS,TO-220	TRIAC,800V V(DRM),16A I(T)RMS,TO-220	TRIAC,700V V(DRM),16A I(T)RMS,TO-220
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Critical rise rate of commutation voltage - minimum value	21 V/us	21 V/us	21 V/us	21 V/us	21 V/us
Critical rise rate of minimum off-state voltage	750 V/us	750 V/us	750 V/us	750 V/us	750 V/us
Maximum DC gate trigger current	75 mA	75 mA	75 mA	75 mA	75 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	75 mA	75 mA	75 mA	75 mA	75 mA
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	16 A	16 A	16 A	16 A	16 A
Off-state repetitive peak voltage	200 V	600 V	400 V	800 V	700 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
Base Number Matches	1	1	1	1	-
