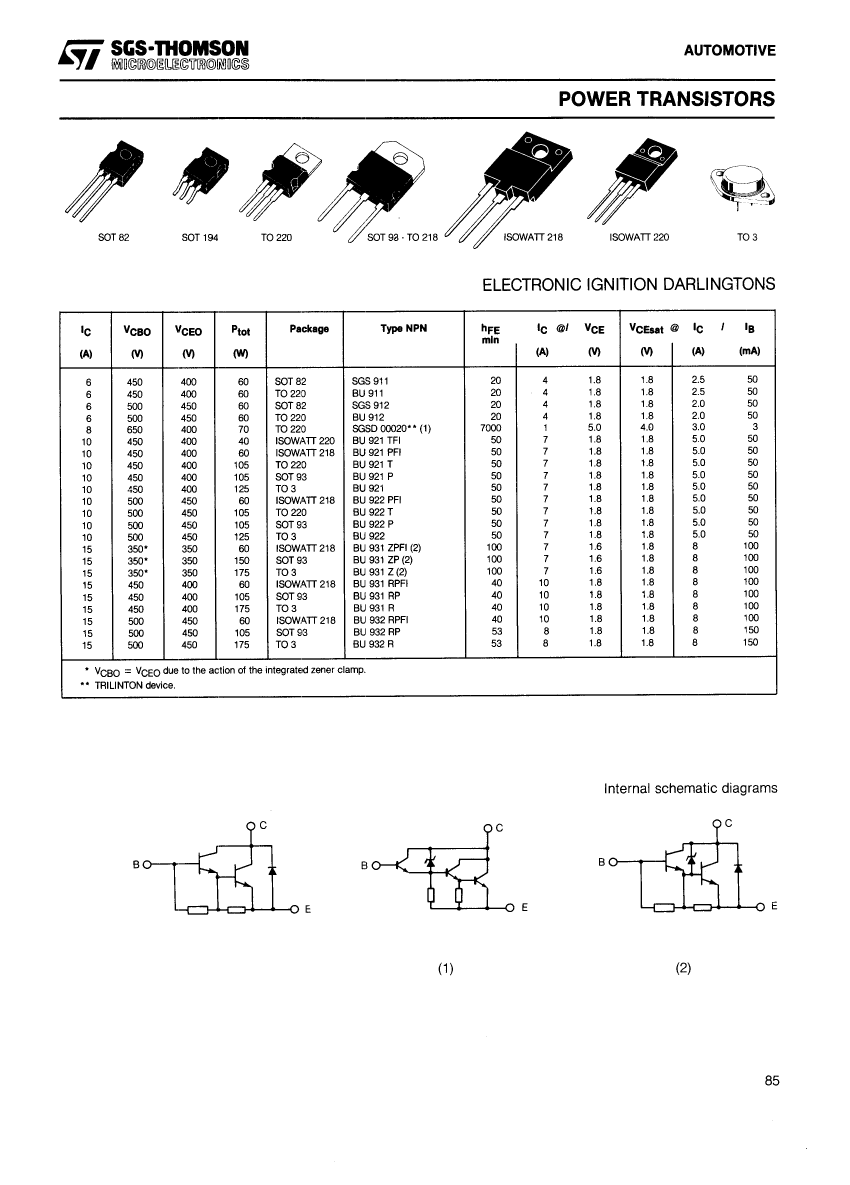

15A, 450V, NPN, Si, POWER TRANSISTOR, TO-218
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | not_compliant |
| Maximum collector current (IC) | 15 A |
| Collector-emitter maximum voltage | 450 V |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR |
| Minimum DC current gain (hFE) | 300 |
| JEDEC-95 code | TO-218 |
| JESD-30 code | R-PSFM-T3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 125 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Transistor component materials | SILICON |
| VCEsat-Max | 1.8 V |
| Base Number Matches | 1 |
| BU932RP | BU912 | BU931ZP | BU932R | BU932RPFI | BU931R | BU931RP | BU931RPFI | BU921TFI | |
|---|---|---|---|---|---|---|---|---|---|
| Description | 15A, 450V, NPN, Si, POWER TRANSISTOR, TO-218 | 6A, 450V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN | 20A, 350V, NPN, Si, POWER TRANSISTOR, TO-218 | 15A, 450V, NPN, Si, POWER TRANSISTOR, TO-3 | 15A, 450V, NPN, Si, POWER TRANSISTOR, TO-218 | 15A, 400V, NPN, Si, POWER TRANSISTOR, TO-3 | 15A, 400V, NPN, Si, POWER TRANSISTOR, TO-218 | 15A, 400V, NPN, Si, POWER TRANSISTOR, TO-218 | BU921TFI |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | not_compliant | not_compliant | compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | compliant |
| Maximum collector current (IC) | 15 A | 6 A | 20 A | 15 A | 15 A | 15 A | 15 A | 15 A | 10 A |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 200 °C | 150 °C | 200 °C | 150 °C | 150 °C | 150 °C |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Collector-emitter maximum voltage | 450 V | 450 V | 350 V | 450 V | 450 V | 400 V | 400 V | 400 V | - |
| Minimum DC current gain (hFE) | 300 | - | 300 | 300 | 300 | 300 | 300 | 300 | - |
| JEDEC-95 code | TO-218 | TO-220AB | TO-218 | TO-3 | TO-218 | TO-3 | TO-218 | TO-218 | - |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | O-MBFM-P2 | R-PSFM-T3 | O-MBFM-P2 | R-PSFM-T3 | R-PSFM-T3 | - |
| JESD-609 code | e0 | e0 | - | e0 | e0 | e0 | e0 | e0 | - |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Number of terminals | 3 | 3 | 3 | 2 | 3 | 2 | 3 | 3 | - |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | METAL | PLASTIC/EPOXY | METAL | PLASTIC/EPOXY | PLASTIC/EPOXY | - |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | ROUND | RECTANGULAR | ROUND | RECTANGULAR | RECTANGULAR | - |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Maximum power consumption environment | 125 W | 60 W | 125 W | 175 W | 60 W | 175 W | 125 W | 60 W | - |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | PIN/PEG | THROUGH-HOLE | PIN/PEG | THROUGH-HOLE | THROUGH-HOLE | - |
| Terminal location | SINGLE | SINGLE | SINGLE | BOTTOM | SINGLE | BOTTOM | SINGLE | SINGLE | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | - |
| VCEsat-Max | 1.8 V | 1.8 V | 2 V | 1.8 V | 1.8 V | 1.8 V | 1.8 V | 1.8 V | - |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - | - | - |
| Maker | - | STMicroelectronics | STMicroelectronics | - | - | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Maximum power dissipation(Abs) | - | 60 W | 150 W | - | 60 W | - | - | 60 W | 55 W |
