BGY67BO/SC
Optical receiver module
Product specification
Supersedes data of 1997 Sep 26
File under Discrete Semiconductors, SC16
1998 Mar 16
Philips Semiconductors
Product specification
Optical receiver module
FEATURES
•
Excellent linearity
•
Extremely low noise
•
Excellent flatness
•
Standard CATV outline
•
Rugged construction
•
Gold metallization ensures excellent reliability.
handbook, halfpage
BGY67BO/SC
PINNING - SOT115P
PIN
1
2, 3, 7, 8
5
9
common
+V
B
output
DESCRIPTION
monitor current
APPLICATIONS
•
Reverse receiver amplifier in two-way CATV systems in
the 5 to 300 MHz frequency range.
1
2
3
5
7
8
9
Side view
MBK068
DESCRIPTION
Hybrid high dynamic range optical amplifier module in a
SOT115P package operating at a voltage supply of
24 V (DC). The module contains a monomode optical
input suitable for wavelengths from 1290 to 1600 nm, a
terminal to monitor the pin diode current and an electrical
output with an impedance of 75
Ω.
The optical fibre is
terminated by an SC/APC connector and partly reinforced
by a 3 mm diameter Kevlar buffer.
Fig.1 Simplified outline.
QUICK REFERENCE DATA
SYMBOL
f
S
22
d
2
F
I
tot
HANDLING
Fibreglass optical coupling: maximum tensile strength = 5 N; minimum bending radius = 35 mm.
To prevent damage to the optical fibre, a clamp should be fixed at a distance of not less than 26 mm from the cap of the
module.
CAUTION
The device is supplied in an antistatic package and must be protected against static discharge during transport or
handling.
PARAMETER
frequency range
output return losses
optical input return losses
second order distortion
equivalent noise input
total current consumption (DC)
f = 10 to 300 MHz
V
B
= 24 V
f = 5 to 300 MHz
CONDITIONS
5
15
40
−
−
160
MIN.
−
−
−70
7
190
MAX.
300
UNIT
MHz
dB
dB
dBc
pA/√Hz
mA
1998 Mar 16
2
Philips Semiconductors
Product specification
Optical receiver module
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
f
T
stg
T
mb
P
in
ESD
PARAMETER
frequency range
storage temperature
operating mounting base temperature
optical input power
ESD sensitivity
continuous
human body model;
R = 1.5 kΩ; C = 100 pF
CONDITIONS
5
−40
−20
−
500
BGY67BO/SC
MIN.
MAX.
300
+85
+85
5
−
UNIT
MHz
°C
°C
mW
V
CHARACTERISTICS
Bandwidth 5 to 300 MHz; V
B
= 24 V; T
mb
= 30
°C;
Z
L
= 75
Ω.
SYMBOL
S
V
pin 1
FL
S
22
d
2
d
3
F
s
λ
λ
L
I
tot
Notes
1. Two laser test; each laser with 40% modulation index;
f
p
= 20.25 MHz; P
p
= 0.5 mW;
f
q
= 34 MHz; P
q
= 0.5 mW;
measured at f
p
+ f
q
= 54.25 MHz.
2. Three laser test; each laser with 40% modulation
index;
f
p
= 125.25 MHz; P
p
= 0.33 mW;
f
q
= 110.25 MHz; P
q
= 0.33 mW;
f
r
= 135.25 MHz; P
r
= 0.33 mW;
measured at f
p
+ f
q
−
f
r
= 100.25 MHz.
3. The module normally operates at V
B
= 24 V, but is
able to withstand supply transients up to 30 V.
handbook, halfpage
PARAMETER
responsivity
pin 1 monitor voltage
flatness of frequency response
output return losses
optical input return losses
second order distortion
third order distortion
equivalent noise input
spectral sensitivity
optical wavelength
length of optical fibre
total current consumption (DC)
note 1
note 2
CONDITIONS
λ
= 1300 nm
λ
= 1300 nm
f = 5 to 300 MHz
MIN.
750
0.75
−
15
40
−
−
−
0.85
0.9
1290
817
160
−
1
MAX.
UNIT
V/W
V/mW
dB
dB
dB
dB
dB
pA/√Hz
A/W
A/W
nm
mm
mA
±0.3
−
−
−70
−80
7
−
−
1600
917
190
f = 10 to 300 MHz
λ
= 1310
±20
nm
λ
= 1550
±20
nm
buffered fibre; SM type;
9/125
µm;
kevlar buffer: 3 mm
note 3
Pin 1
10 kΩ
current
1 kΩ
MLB151
Fig.2 Monitor current pin.
1998 Mar 16
3
Philips Semiconductors
Product specification
Optical receiver module

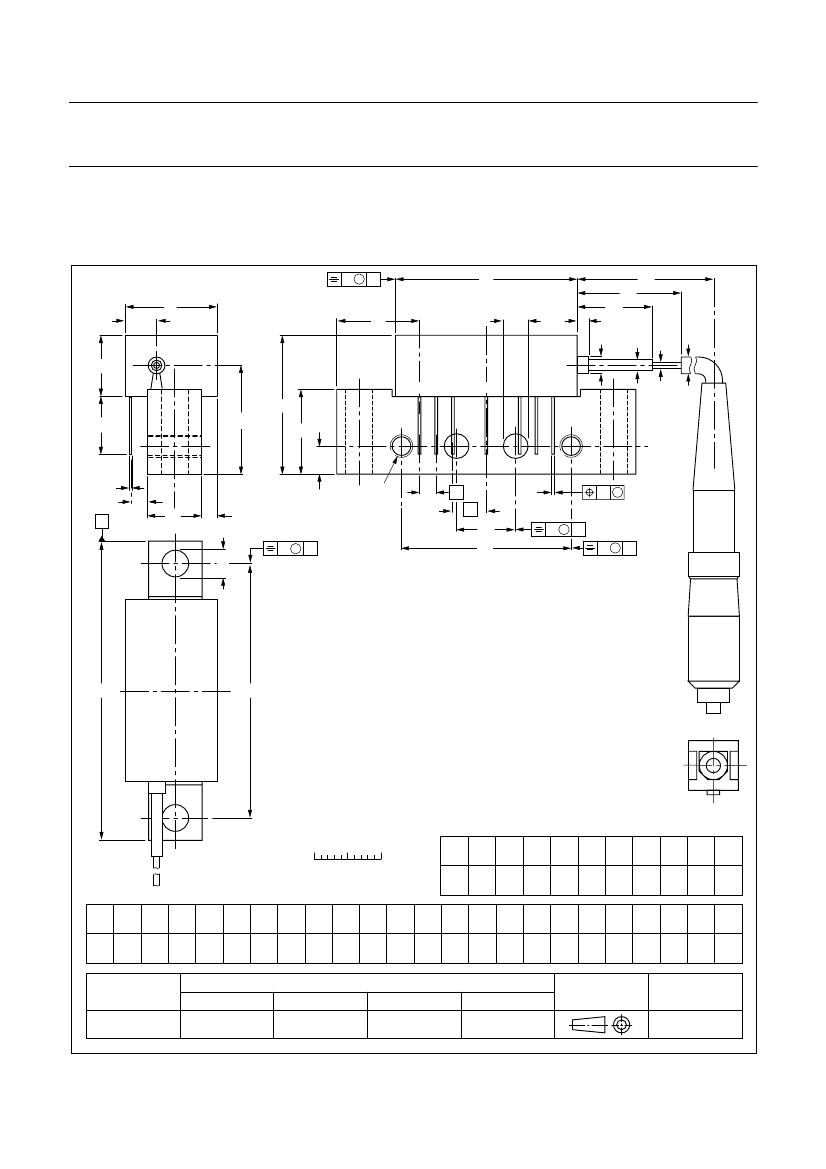

PACKAGE OUTLINE
Rectangular single-ended flat package; aluminium flange;
2 vertical mounting holes; 2 x 6-32 UNC and 2 extra horizontal mounting holes;
optical input with connector; 7 gold-plated in-line leads
y1
M
B
E
S2
Z
P
M
A2
1
A
L
S1
F
S
c
d
B
U2
Q
y
M
B
P
W
e
e1
q2
q1
y
M
B
b
2
3
5
7
8
9
D
BGY67BO/SC
SOT115P
N
N1
N2
N3
M1 M
2
M3
w
M
y
M
B
U1
q
connector
0
5
scale
10 mm
q2
10.2
S
4.2
S1
S2
U1
U2
max.
8
W
w
y
0.1
Q
max.
2.4
y1
0.2
Z
max.
12
16.7 4.95
44.75
16.1 4.55
DIMENSIONS (mm are the original dimensions)
UNIT
A2
A
max. max.
9.1
b
c
D
d
E
max. max. max.
e
e1
F
L
min.
8.8
M
2.5
M1
1.6
M2
0.9
M3
3
N
N1
N2
6-32 0.25
UNC
N3
5
1
∅
P
4.15
3.85
q
q1
mm 20.8
0.51
0.25 27.2 2.54 13.75 2.54 5.08 12.7
0.38
917 15.3 10.7
817 8.7 8.7
38.1 25.4
OUTLINE
VERSION
SOT115P
REFERENCES
IEC
JEDEC
EIAJ
EUROPEAN
PROJECTION
ISSUE DATE
98-03-06
1998 Mar 16
4
Philips Semiconductors
Product specification
Optical receiver module
DEFINITIONS
Data Sheet Status
Objective specification
Preliminary specification
Product specification
Limiting values
BGY67BO/SC
This data sheet contains target or goal specifications for product development.
This data sheet contains preliminary data; supplementary data may be published later.
This data sheet contains final product specifications.
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper u
1998 Mar 16
5
