BTL-32DRC-R4-O datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BTL-32DRC-R4-O

BTL-32DRC-R4-O: DescriptionVisible LED; CategoryLED optoelectronic/LED photoelectric; File Size202KB，3 Pages; ManufacturerDB Lectro Inc

Download Datasheet Parametric Compare View All

BTL-32DRC-R4-O Overview

Visible LED

BTL-32DRC-R4-O Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

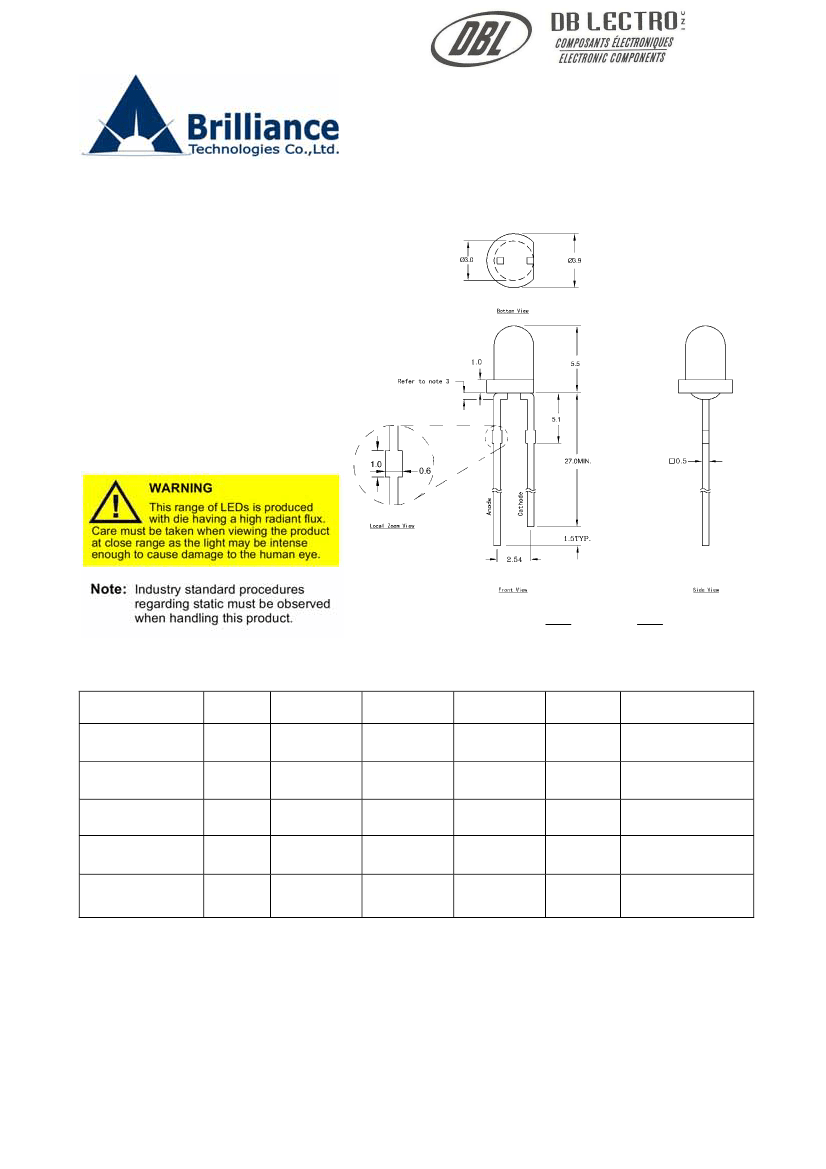

MEGA BRIGHT LED

BTL-32DRC-XX-X

Product Features

Ultra Bright Red Color

High Light Output

Package Dimension

3mm Diameter Circular Package

Water Clear Lens

Highly Reliable

IC Compatible

Leads without Stand Off

Applications

Automotive

Front Panel Indicator

Special Lighting

General Purpose LEDs

Tolerance:

inch

Unit:

0.01

0.25

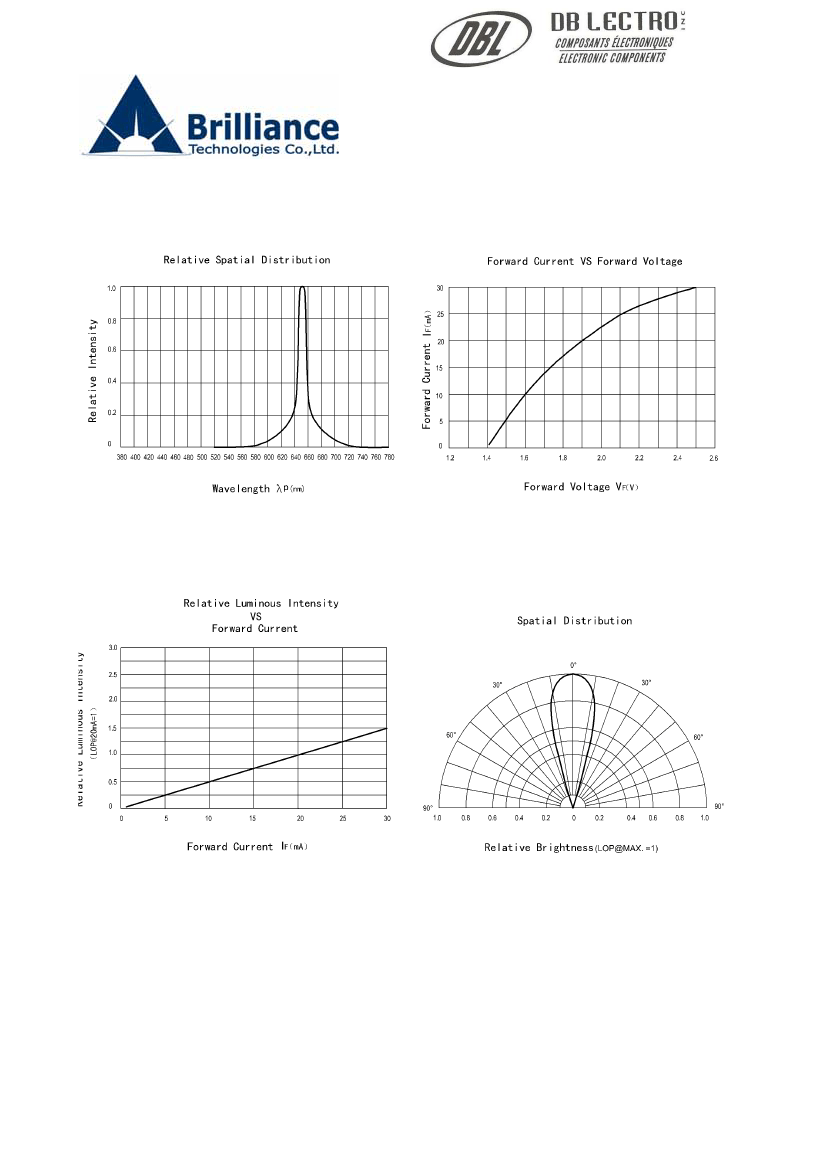

Optical and Electrical Characteristics at T

=25ºC

Parameter

Luminous

Intensity

Viewing Angle

Dominant

Wavelength

DC Forward

Voltage

DC Reverse

Current

Symbol

2θ½

Minimum

－

645

－

Typical

1500

652

1.9

－

Maximum

－

660

2.5

Units

mcd

deg

µA

Conditions

= 20mA

(Note 1)

= 20mA

(Note 2)

= 20mA

=5V

Notes:

Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE

eye-response curve set by International Lighting committee.

Tolerance of minimum and maximum

intensity = ± 15%

2. Wavelength range can be selected from the bin selection table. Tolerance of minimum and

maximum = ± 2nm

These products are sensitive to static electricity and care must be fully taken when handling

products

Page 1 of 3

DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 ww.dblectro.com

BTL-32DRC-R4-O Related Products

	BTL-32DRC-R4-O	BTL-32DRC-R3-O	BTL-32DRC-R3-P	BTL-32DRC-R4-P	BTL-32DRC-R5-O	BTL-32DRC-R5-P	BTL-32DRC-XX-N	BTL-32DRC-XX-O	BTL-32DRC-XX-P
Description	Visible LED	Visible LED	Visible LED	Visible LED	Visible LED	Visible LED	Visible LED	Visible LED	Visible LED
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Base Number Matches	1	1	1	1	1	1	1	1	1
