BriLux
1W Light Source
BTP-53XXCR-XX-XX

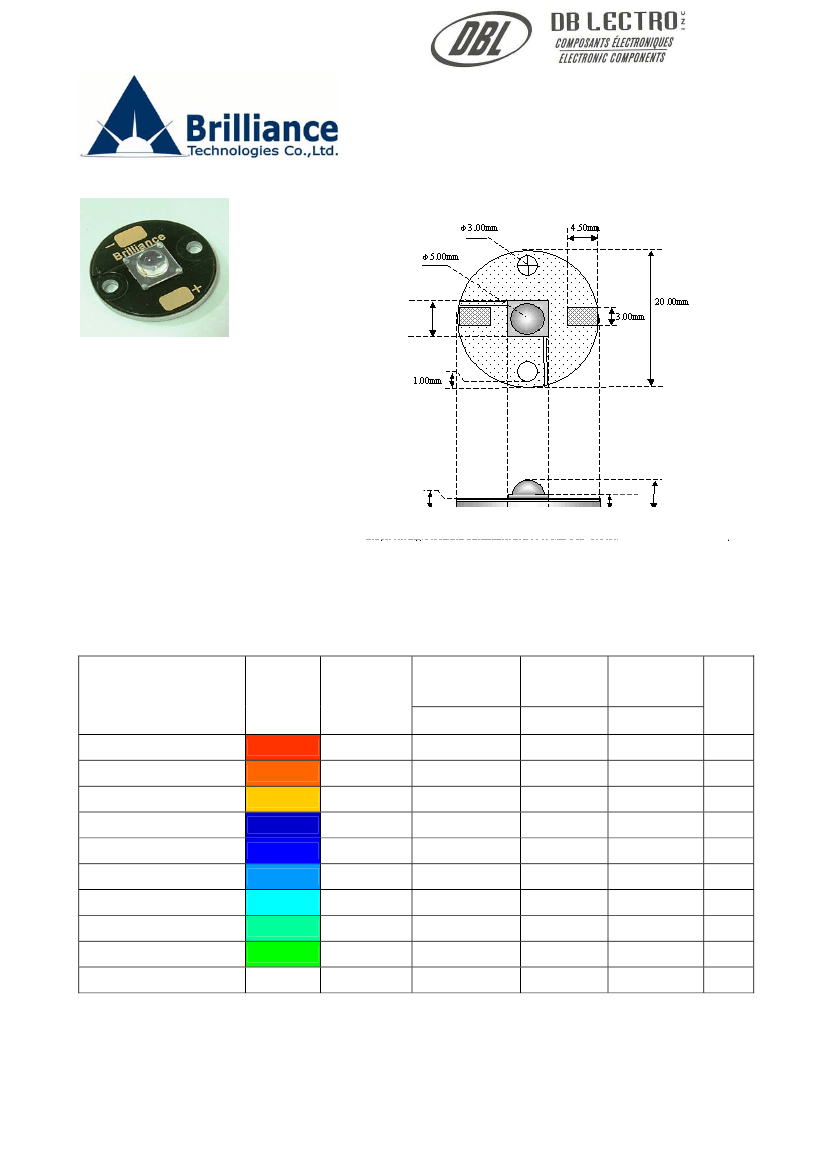

Package Dimension
5.30mm
Features
Highest Lumen Per Watt
Long Operational Life
More Energy Efficient
IC Compatible
Low DC Voltage
Superior ESD Protection
Smallest Footprint
Applications
Accent Lighting
Automotive Exterior/Interior Light
High Power Back Light
Reading Light
Marine/Miner’s Lighting
Portable Lighting
1.50mm
2.4mm
4.00mm
Optical Characteristics at T
j
=25ºC
PART NUMBER
LED CHIP
MATERIAL
Lens
Color
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Wavelength/CCT
Range (nm/K)
Drive
Voltage
Luminous
VIEW
ANGLE
Flux
@350mA(lm)
2θ
1/2
Typ.
15 lm
15 lm
15 lm
5 lm
6 lm
8 lm
15 lm
20 lm
25 lm
20 lm
(deg)
Min/Max
620~635
600~620
585~595
450~460
460~475
475~485
495~510
510~520
520~525
5000K~8000K
Typ.
2.85V
2.85V
2.85V
3.50V
3.50V
3.50V
3.50V
3.50V
3.50V
3.60V
BTP-53NRCR-XX-15
BTP-53AMCR-XX-15
BTP-53YECR-XX-15
BTP-53DBCR-XX-05
BTP-53BLCR-XX-06
BTP-53GBCR-XX-08
BTP-53BGCR-XX-15
BTP-53GMCR-XX-20
BTP-53PGCR-XX-25
BTP-53WHCR-XX-20
AlInGaP
AlInGaP
AlInGaP
AlInGaN
AlInGaN
AlInGaN
AlInGaN
AlInGaN
AlInGaN
AlInGaN
60
60
60
60
60
60
60
60
60
60
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
BriLux
1W Light Source
BTP-53XXCR-XX-XX
Absolute Maximum Ratings at T
j
=25ºC
Parameter
White/Green/Cyan/Blue
Red/Amber/Yellow
DC Forward Current (mA)
[1]
Peak Pulsed Forward Current (mA)
Average Forward Current (mA)
Reverse Voltage (V)
Reverse Current (uA)
LED Junction Temperature (°C)
Al-PCB Temperature (°C)
[3]
Storage Temperature (°C)
Soldering Temperature (°C)
[4]
350
500
350
5
10
120
100
-40 to +100
260 for 5 seconds max
350
500
350
5
10
120
100
-40 to +100
260 for 5 seconds max
Application Notes:
1.
Proper forward current must be observed to maintain the junction temperature below maximum
rating
2.
Although all products listed are class one ESD protection (+/- 1KV by HBM mode), care must be
fully taken when handling products
3.
Measured at back of aluminium PCB without additional heat sink. We recommend mounting
BriLux light source directly to heat sink with fasteners for best performance.
4.
5.
Measured at contact terminals.
Specification is subjected to change without notice.
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
BriLux
1W Light Source
BTP-53XXCR-XX-XX

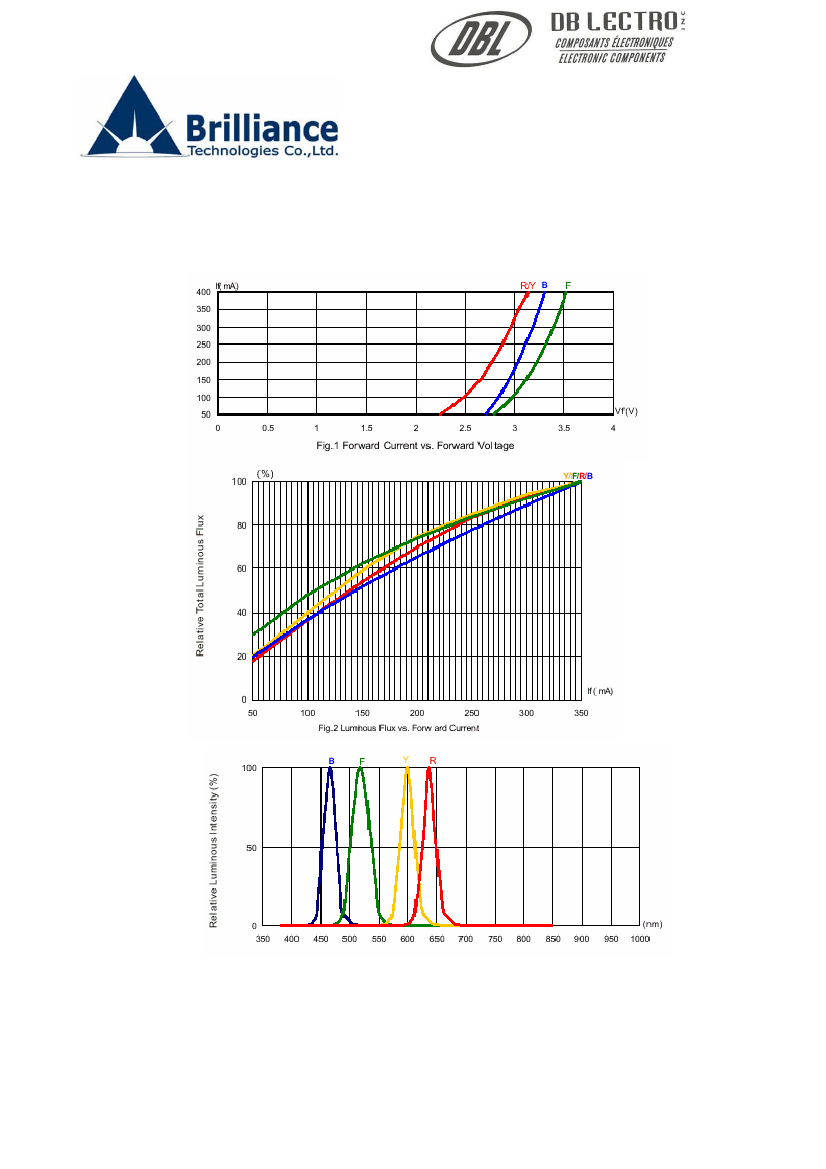

Typical Electro-Optical Characteristics Curves at T
j
=25ºC
(Red/Yellow/Blue/Green)
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
BriLux
1W Light Source
BTP-53XXCR-XX-XX

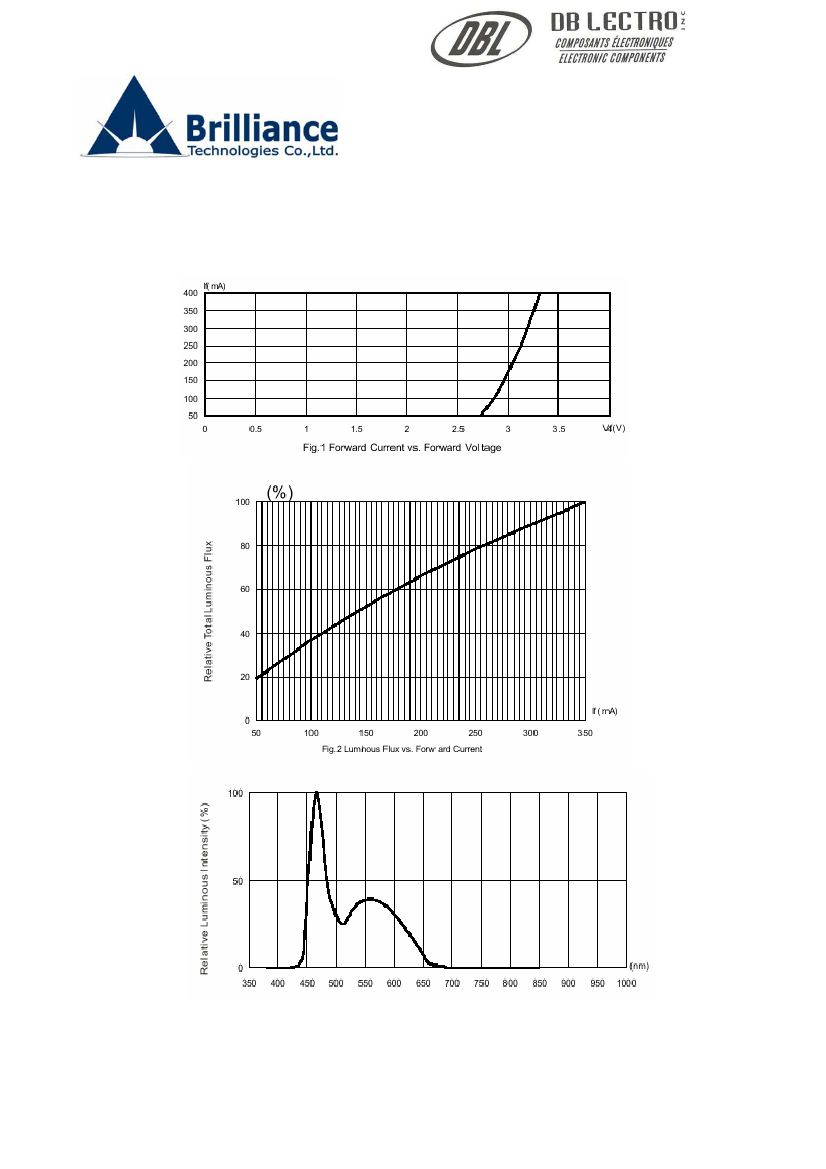

Typical Electro-Optical Characteristics Curves at T
j
=25ºC (White)
White BriLux
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
