MEGA BRIGHT LED
BTL-51WHC-XX-X

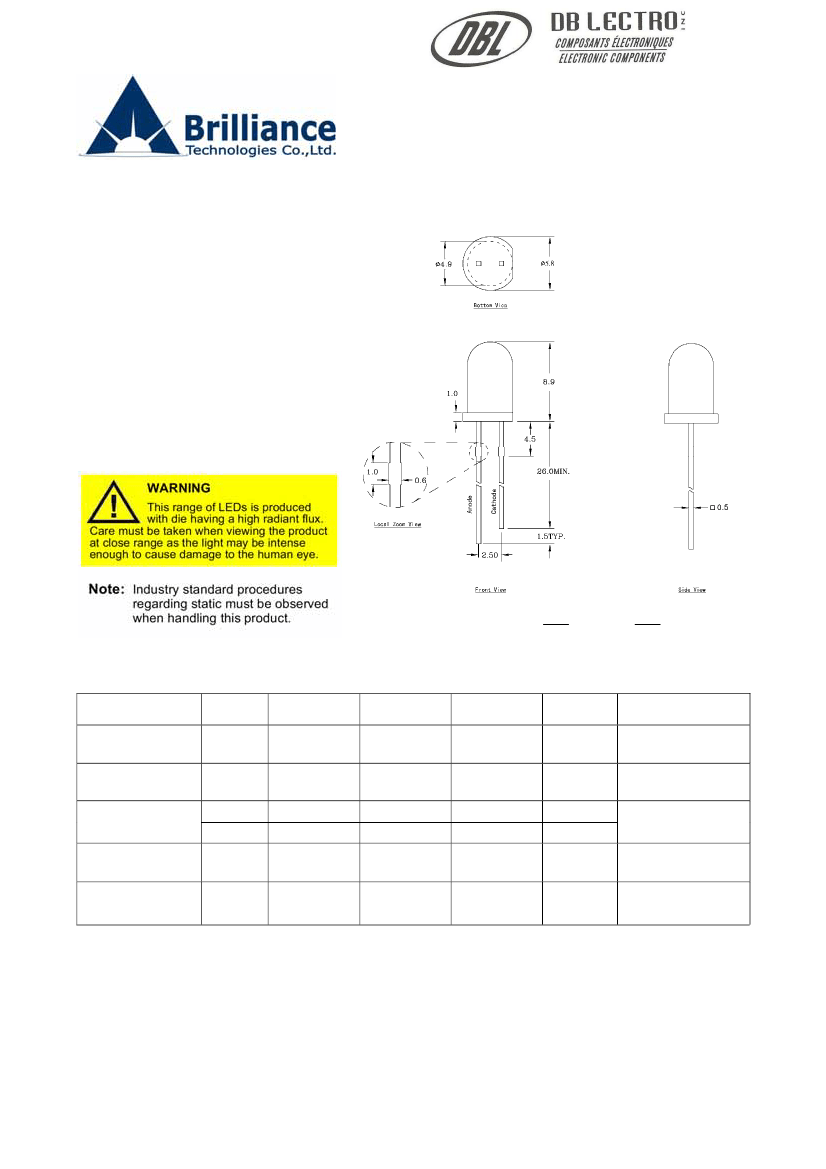

Product Features
Ultra Bright White Color
High Light Output
Package Dimension
5mm Diameter Circular Package
Water Clear Lens
Highly Reliable
IC Compatible
Leads without Stand Off
Applications
Automotive
Front Panel Indicator
Special Lighting
General Purpose LEDs
inch
Tolerance:
0.01
Unit:
±
mm
±
0.25
Optical and Electrical Characteristics at T
a
=25℃
Parameter
Luminous
Intensity
Viewing Angle
Color
Coordinates
DC Forward
Voltage
DC Reverse
Current
Symbol
I
v
2θ½
X
Y
V
F
I
R
Minimum
－
－
－
－
－
0
Typical
8000
15
0.27
0.28
3.5
－
Maximum
－
－
－
－
4.0
10
Units
mcd
deg
n/a
n/a
V
µA
Conditions
I
F
= 20mA
(Note 1)
I
F
= 20mA
I
F
= 20mA
(Note 2)
I
F
= 20mA
V
R
=5V
Notes:
1.
Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE
eye-response curve set by International Lighting committee.
Tolerance of minimum and maximum
intensity = ± 15%
2. Color coordinates range can be selected from the bin selection table. The parameters used
fulfilled the 1932 2 standard
3.
These products are sensitive to static electricity and care must be fully taken when handling
products
Page 1 of 3
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
MEGA BRIGHT LED
BTL-51WHC-XX-X
Absolute Maximum Ratings at T
a
=25℃
Symbol
P
D
V
R
I
F
I
FP
T
opr
T
stg
Power Rating
Reverse Voltage (I
R
=10µA)
Continuous Forward Current
Peak Forward Current (0.1 duty cycle @ 1kHz)
Operating Temperature Range
Storage Temperature Range
Parameter
Max.
100
5
30
100
–35 ~ + 80
–40 ~ + 100
Unit
mW
V
mA
mA
℃
℃
Lead Soldering Temperature [1.6mm (0.063inch) from body]
260℃ - max 5 seconds
Color and Brightness Selection
BTL-51WHC-XX-X
Color Bin Selection
Brightness Bin Selection
Bin
BW
(Bluish
White)
White
X
0.20
0.27
0.31
0.31
0.24
Y
0.20
0.28
0.27
0.20
0.28
0.36
0.36
0.28
0.36
0.45
0.45
0.36
Bin
T
U
V
W
X
Range(mcd)
4245~5515
5515~7170
7170~9320
9320~12000
12000~15600
PW
(Pure
White)
0.32
0.36
0.36
0.29
YW
(Yellowish
White)
0.38
0.42
0.42
XX
All Range
Page 2 of 3
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
MEGA BRIGHT LED
BTL-51WHC-XX-X

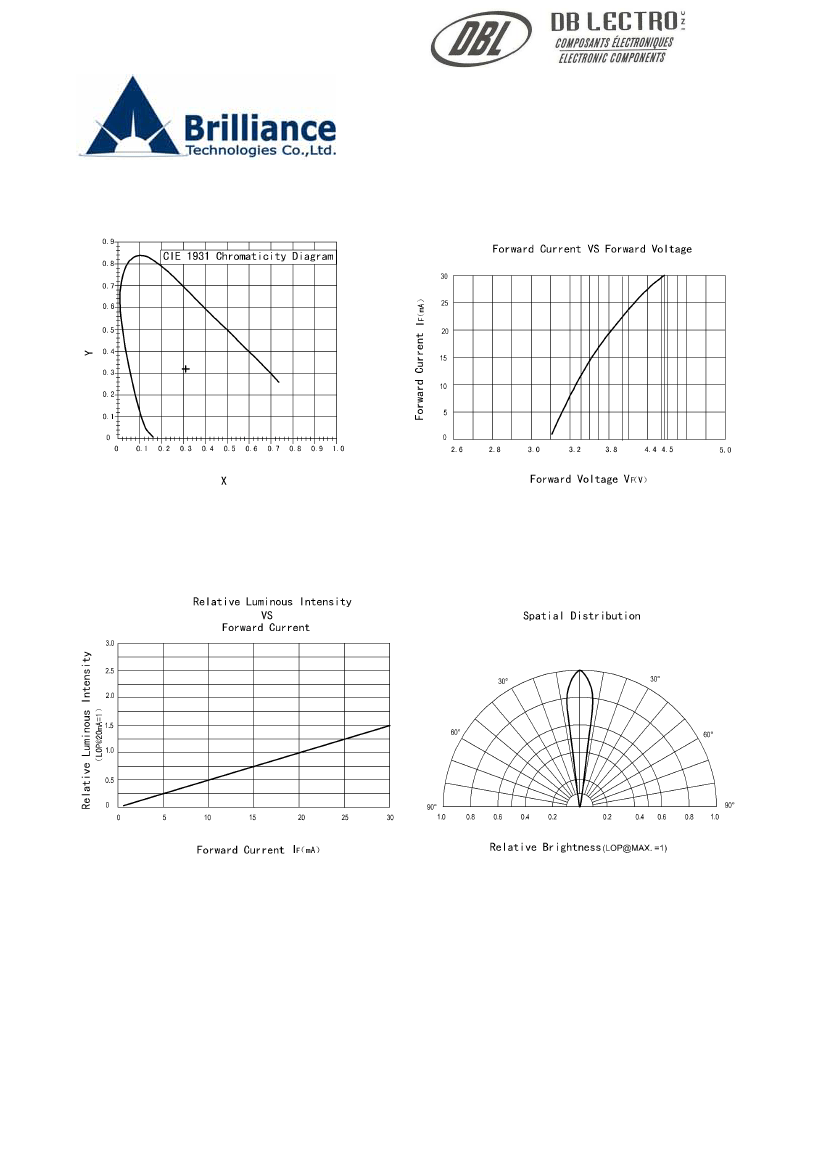

Typical Electro-Optical Characteristics Curves at T
a
=25℃
BT-Rev. 1.0a
Specifications are subject to change without notice.
Copyright © 2003 Brilliance Technologies Co., Ltd. All rights reserved.
Page 3 of 3
