BriLux
1W Light Source
BTP-187XXCQ-XX-XX

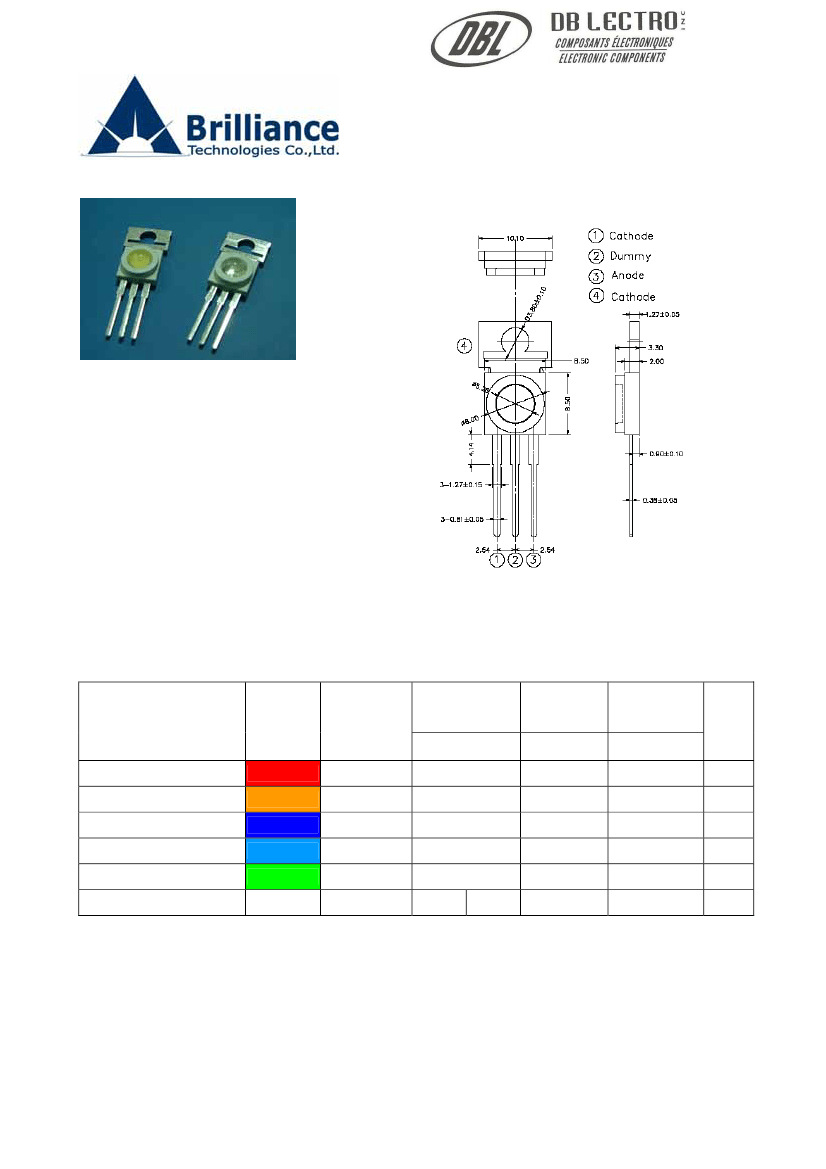

Package Dimension
[Note 1]
Features
Highest Lumen Per Watt
Long Operational Life
More Energy Efficient
IC Compatible
Low DC Voltage
Superior ESD Protection
Smallest Footprint
Applications
Accent Lighting
Automotive Exterior/Interior Light
High Power Back Light
Reading Light
Marine/Miner’s Lighting
Portable Lighting
Tolerance: ± see spec
Unit: ± mm
Optical Characteristics at T
a
=25ºC, I
F
=350mA
PART NUMBER
LED CHIP
MATERIAL
Lens
Color
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Wavelength/CCT
Range (nm/K)
Drive
Voltage
Luminous
VIEW
ANGLE
Flux
@350mA(lm)
2θ
1/2
Typ.
17 lm
[2]
17 lm
[2]
6 lm
[2]
10 lm
[2]
15lm
[2]
30 lm
[2]
(deg)
Min/Max
620~635
585~595
460~470
470~480
520~530
3000K 8000K
Typ.
2.60V
2.60V
3.60V
3.60V
3.60V
3.60V
BTP-187NRCQ-XX-17
BTP-187YECQ-XX-17
BTP-187BLCQ-XX-08
BTP-187GBCQ-XX-10
BTP-187PGCQ-XX-15
BTP-187WHCQ-XX-30
Note:
1) Picture for illustration purpose only.
AlInGaP
AlInGaP
AlInGaN
AlInGaN
AlInGaN
AlInGaN
90
90
90
90
90
90
Please refer to outline dimension for actual package size.
2) Due to the CIE eye response curve in the wavelength range, the minimum luminous flux will vary over the wavelength range of
λ
D
. For
example, luminous flux will vary from a minimum of 4.5lm at 460 to a typical of 15 lm at 480nm nm due to this effect.
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
BriLux
1W Light Source
BTP-187XXCQ-XX-XX
Absolute Maximum Ratings at T
a
=25ºC
Parameter
Red/Yellow
White/Blue
DC Forward Current (mA)
[1]
Peak Pulsed Forward Current (mA)
Average Forward Current (mA)
Reverse Voltage (V)
LED Junction Temperature (°C)
[3]
Thermal Resistance without heatsink (°C/W)
Storage Temperature (°C)
Operating Temperature (°C)
300
350
300
5
120
80
-20 to +80
-10 to +70
350
500
300
5
120
80
-20 to +80
-10 to +70
Application Notes:
1.
2.
3.
Proper forward current must be observed to maintain the junction temperature below maximum
rating
Although all products listed are class one ESD protection (+/- 1KV by HBM mode), care must be
fully taken when handling products
Specification is subjected to change for improvements without notice.
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
BriLux
1W Light Source
BTP-187XXCQ-XX-XX

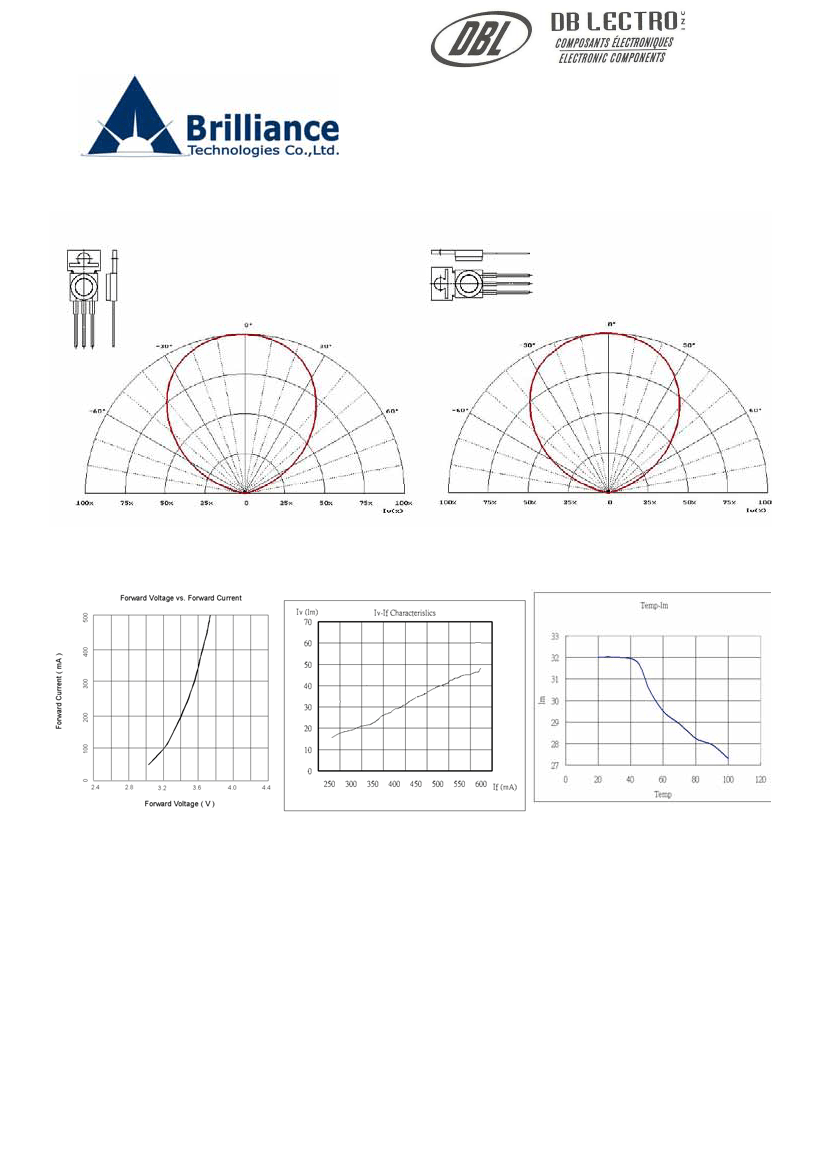

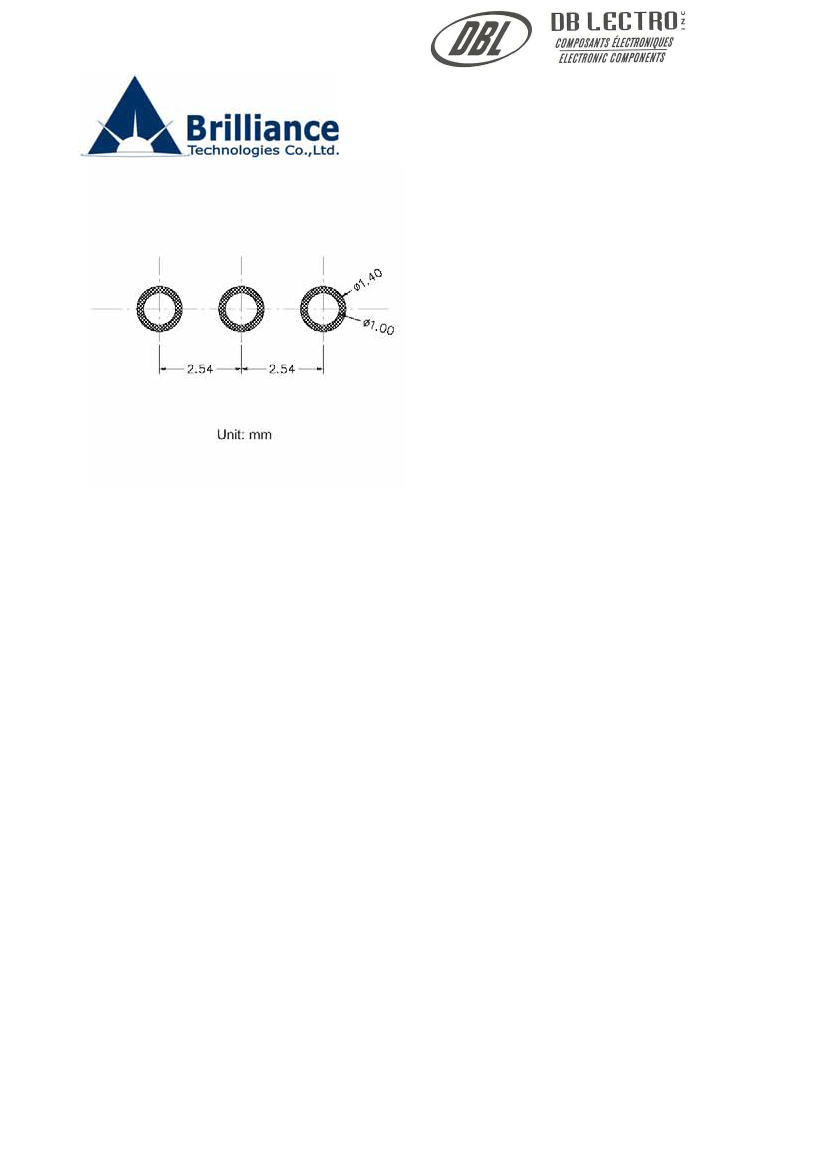

Recommended Soldering Pattern
Important Notes:
The information contained herein is presented only as a Guide for the application of our
products. Brilliance Technologies assumes no responsibility for any infringement of intellectual
property or other rights of the third parties which may result from its use.
Brilliance Technologies continually improves the quality of our products. Nevertheless,
semiconductor devices in general can malfunction or fail due to their inherent electrical
sensitivity and vulnerability to physical stress. It is the responsible of the customer, when
using Brilliance Technologies products, to comply with the standard of safety in making a safe
design for the entire system, and to avoid situations in which a malfunction or failure of such
Brilliance Technologies products cause loss of human life, bodily injury or damage to property.
Brilliance Technologies products listed in this data sheet are intended for usage in general
electronics and/or non-commercial or industrial lighting products. These products are neither
intended nor warranted for usage in equipment that requires extraordinarily high quality and/or
reliability or a malfunction or failure of which may cause loss of human life or bodily injury.
In developing your design, please ensure that Brilliance Technologies products are used within
specified operating ranges as set forth in the most recent Brilliance Technologies data sheets.
BT-Rev. 1.0B20040917
Specifications are subject to change for improvement without notice.
Copyright © 2003 Brilliance Technologies Co., Ltd. All rights reserved.
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
