BSFZ68G67: DescriptionVideo Tuner,; CategoryOther integrated circuit (IC) Consumption circuit; File Size68KB，2 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

BSFZ68G67 Overview

Video Tuner,

BSFZ68G67 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ALSO OPERATES ON 29V
Built-in IF amplifier	NO
Commercial integrated circuit types	VIDEO TUNER
Maximum input frequency (RF)	2050 MHz
Minimum input frequency (RF)	950 MHz
JESD-30 code	R-XXMA-X
Nominal noise index	8 dB
Number of functions	1
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5 V
Minimum supply voltage (Vsup)	5 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

RODUCT

NFORMATION

APPLICATIONS:

•

Satellite receiver

•

Data receiver

RF Components

Group

BSFZ-Series

I/Q Output

Satellite Tuners

FEATURES

•

First LO PLL tuning

Low noise figure, 8 dB typical (model dependent)

65 dB typical AGC range

Conversion gain range 45 dB typical

Low phase noise

Input range: 950 - 2,050 MHz

Maximum input level: -25 dBm

Input and output impedance: 75

Ω

30 MHz I/Q output low pass filter, typical

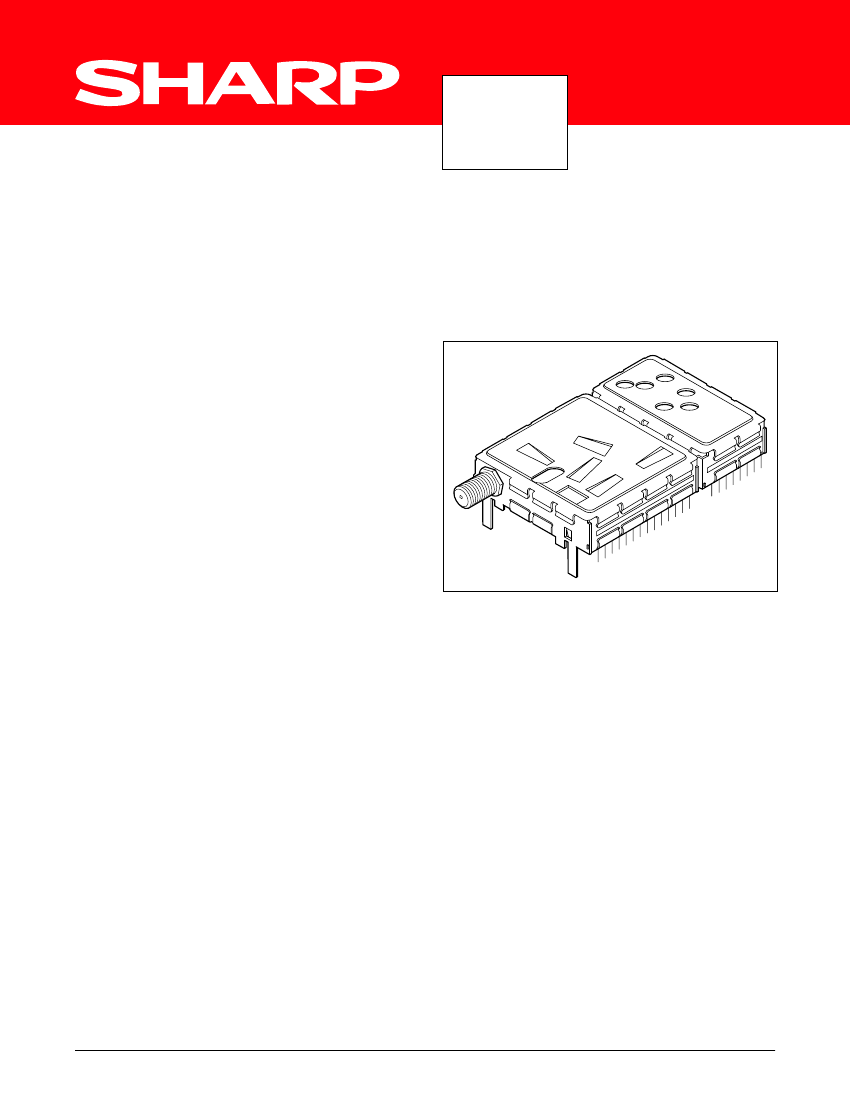

STANDARD BSFZ PACKAGE

RF13-1

DESCRIPTION

The BSFZ-series tuners are designed for reception of modulated

digital data streams. These tuners can be used for reception of

digital video and data streams.

The first Local Oscillator is Phase-Locked Loop tuned using a

3-wire or I

C-bus serial data bus. The second Local Oscillator in

the I/Q Demodulator is controlled by a SAW resonator or an analog

voltage depending on model. A prescaler is provided on the I/Q

conversion oscillator output in some models for complete control

of the conversion process.

The power supply is 5 V and 29 V.
