TQQ1231
LTE
Applications
LTE Band 1 Band Uplink Diplexer Infrastructure
Base Station
General Purpose Wireless
BAW
6 Pin 3 x 3 mm leadless SMT Package
Product Features
60 MHz Bandwidth – Band 1
MHz Bandwidth – Band 3
High Attenuation
Low Loss
No External Matching Required
Single Input, Dual Output Operation
Small Size: 3.00 x 3.00 x 1.02 mm
Surface Mount Device
RoHS Compliant, Pb-Free
Functional Block Diagram
GND
ANT In
2
3
1
6
5
4
B3 Out
GND
B1 Out
GND
Top View
General Description
The TQQ1231 is an exceptionally high performance BAW
Diplexer
This filter is
x 3 mm package for base station
applications.
Low insertion loss, coupled with high attenuation makes
this filter an ideal choice for uplink RF filtering needs.
The TQQ1231 is part of TriQuint’s extensive portfolio of
RF BAW and SAW filters.
Pin Configuration
Pin No.
2
4
6
3,
Label
ANT In
B1 Out
B3 Out
GND
Ordering Information
Part No.
TQQ1231
TQQ1231-EVB
Description
BAW Diplexer
Evaluation Board
2500 pieces on a 7" reel
Datasheet: Rev E 09-25-14
-
1 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
TQQ1231
LTE
Absolute Maximum Ratings
Parameter
Storage Temperature
RF Input Power
(CW, +55 C for 10,000 hours)
BAW
Recommended Operating Conditions
Parameter
T
CASE
Rating
to +105
+30 dBm
+33 dBm
+30 dBm
+27 dBm
Min
40
Typ
Max Units
+105
C
Electrical specifications are measured at specified test
conditions.
Operation of this device outside the parameter ranges
given above may cause permanent damage.
Operation
is possible but with lower MTTF.
Electrical Specifications – Band 3
(1,2,3)
Operating Temperature Range:
0 to +
Parameter
Passband
Insertion Loss
Amplitude Ripple
(5)
Group Delay Variation
(5)
VSWR
Conditions
–
–
(+25 )
–
(
5 )
1710 – 1785 MHz
Any 5 MHz window in passband
Input
Output
0.9 – 720 MHz
720 – 1670 MHz
1670 – 1690 MHz ( 0 to +25 C)
1670 – 1690 MHz (+25 to +95 C)
1805 –
C)
1805 –
C)
1825 – 1880 MHz
1880 – 1920 MHz
1920 – 1980 MHz
1980 – 2110 MHz
2110 – 2170 MHz
2170 – 2660 MHz
2660 – 2690 MHz
2690 – 3600 MHz
3600 – 5000 MHz
(7)
Min
1710
-
-
-
-
-
-
-
30
27
12
10
40
35
45
38
38
33
32
20
24
10
10
-
Typ
(4)
Max
1785
3.8
1.6
2.2
40
20
2.8:1
2.8:1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB
dB
ns
ns
-
-
Attenuation
(6)
-
3.1
1.2
1.2
25
9
2.4:1
2.4:1
44
37
39
39
55
55
55
45
42
36
39
22
28
24
25
50
dB
Ohms
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design.
2. Production test is performed at room temperature to a guard-banded specification to ensure electrical compliance over
temperature.
3. Electrical margin has been built into the design to account for variation due to temperature drift and manufacturing tolerances.
4. Typical values are based on average measure
) unless otherwise noted.
5. This is defined as the difference between the maximum peak to adjacent valley amplitude change within the specified band.
6.
7. This is the optimum impedance in order to achieve the performance shown.
Datasheet: Rev E 09-25-14
-
2 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
TQQ1231
LTE
Electrical Specifications – Band 1
(1,2,3)
Operating Temperature Range:
to +95
BAW
Parameter
Passband
Insertion Loss
Amplitude Ripple
(5)
Group Delay Variation
(5)
VSWR
Conditions
1920 - 1980 MHz
1920 - 1980 MHz (+25 )
1920 - 1980 MHz (
5 )
1920 - 1980 MHz
window in passband
Input
Output
0.9 – 1400 MHz
1400 – 1495 MHz
1495 – 1700 MHz
1700 – 1785 MHz
1785 – 1870 MHz
1870 – 1888 MHz
1888 MHz
1900 MHz
2000 MHz
2000 – 2015 MHz
2012 – 2015 MHz
2015 – 2030 MHz
2030 – 2050 MHz
2050 – 2080 MHz
2080 – 2170 MHz
2170 – 4170 MHz
4170 – 5000 MHz
5000 – 5720 MHz
5720 – 6000 MHz
(7)
Min
1920
-
-
-
-
-
-
-
30
30
30
36
30
15
11
5
4
3.5
7.5
8
35
33
30
25
30
10
8
-
Typ
(4)
Max
1980
3.8
1.7
2.2
40
13
2.6:1
2.6:1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB
dB
ns
ns
-
-
Attenuation
(6)
-
3.0
0.7
0.7
15
7
2.1:1
2.1:1
34
34
36
40
38
41
47
48
25
20
36
38
41
39
42
32
41
36
40
50
dB
Ohms
Notes:
1.
2.
3.
4.
5.
6.
7.
All specifications are based on the TriQuint schematic for the main reference design.
Production test is performed at room temperature to a guard-banded specification to ensure electrical compliance over
temperature.
Electrical margin has been built into the design to account for variation due to temperature drift and manufacturing
tolerances.
Typical values are based on average measurements at room temperature (+25 ) unless otherwise noted.
This is defined as the difference between the maximum peak to adjacent valley amplitude change within the specified
band.
Referenced to 0dB.
This is the optimum impedance in order to achieve the performance shown.
Datasheet: Rev E 09-25-14
-
3 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
TQQ1231
LTE
Performance Plots
Test conditions unless otherwise noted:

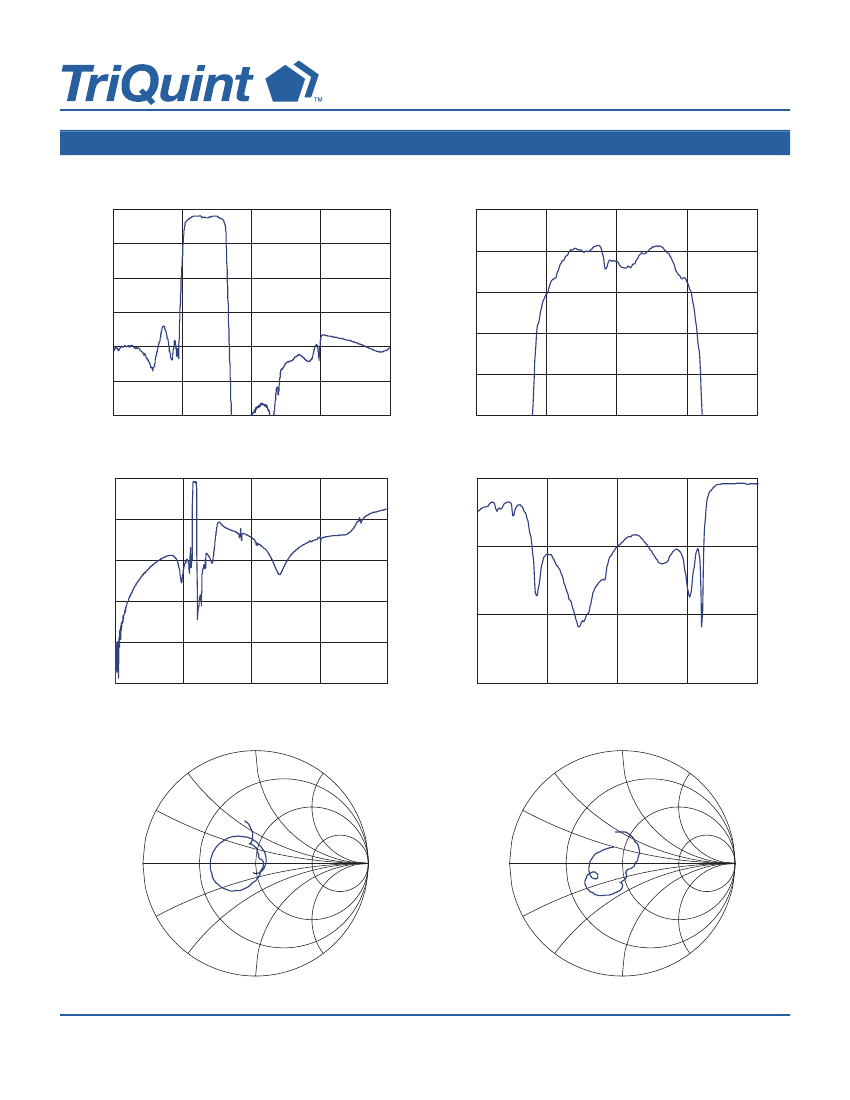

B3 Uplink Frequency Response
0
-1
BAW
B3 Uplink Passband Response
-10
-2
-20
-3
d
B
-30
d
B
-4
-40
-5
-50
-60
1548.75
1698.75
1848.75
1998.75
2148.75
-6
1672.5
1710
1747.5
1785
1822.5
Frequency (MHz)
B3 Uplink Wideband Response
0
0
Frequency (MHz)
B3 Uplink Return Loss
-20
-10
-40
d
B
-60
d
B
-20
-80
-100
0
1500.075
3000.1499
4500.2249
6000.2998
-30
1672.5
1710
1747.5
1785
1822.5
Frequency (MHz)
B3 Uplink Path - Ant Port Impedance
1
Frequency (MHz)
B3 Uplink Port Impedance
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0
-1
-0 .5
0
0.5
1
-1
-0 .5
0
0
0.5
1
-0 .2
-0 .2
-0 .4
-0 .4
-0 .6
-0 .6
-0 .8
-0 .8
-1
-1
Datasheet: Rev E 09-25-14
-
4 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
TQQ1231
LTE
Performance Plots (cont’d.)
Test conditions unless otherwise noted:

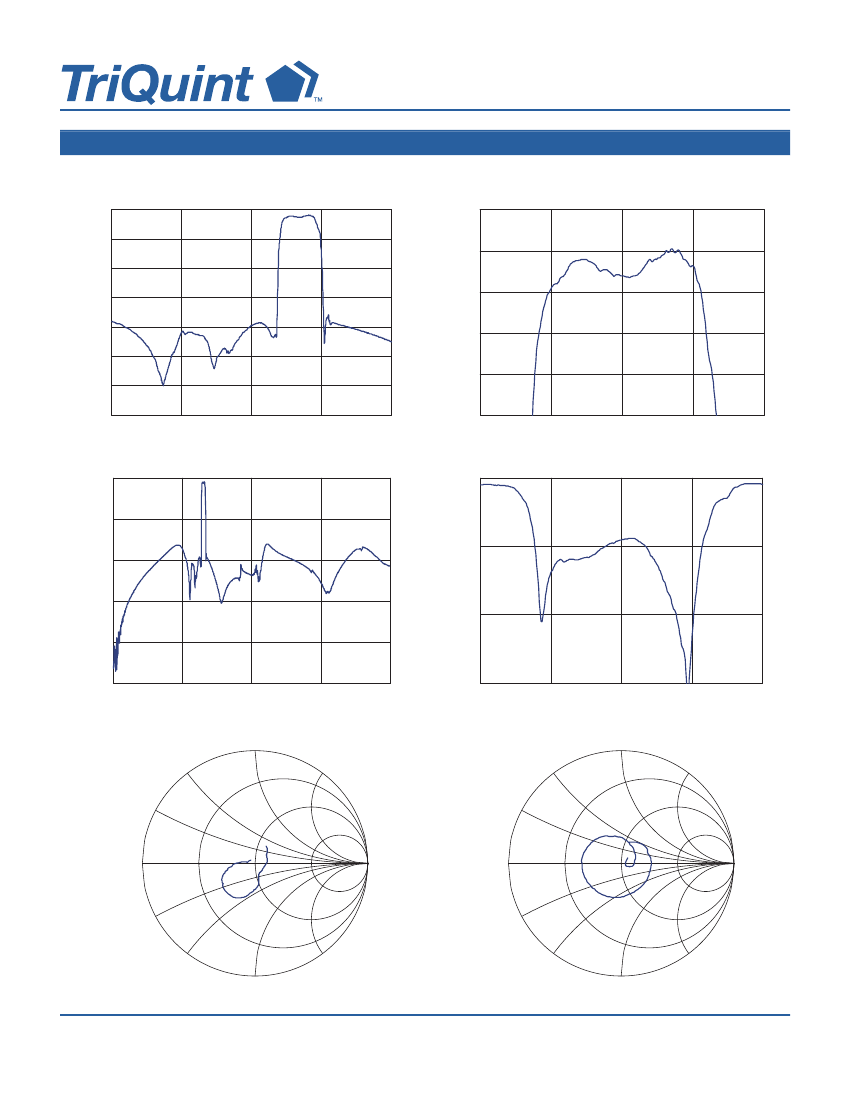

B1 Uplink Frequency Response
0
-1
BAW
B1 Uplink Passband Response
-10
-2
-20
-3
d
-30
B
-40
d
B
-4
-50
-5
-60
-70
1548.75
1698.75
1848.75
1998.75
2148.75
-6
1890
1920
1950
1980
2010
Frequency (MHz)
B1 Uplink Wideband Response
0
0
Frequency (MHz)
B1 Uplink Return Loss
-20
-10
-40
d
B
-60
d
B
-20
-80
-100
0
1500.075
3000.1499
4500.2249
6000.2998
-30
1890
1920
1950
1980
2010
Frequency (MHz)
B1 Uplink Path - Ant Port Impedance
1
Frequency (MHz)
B1 Uplink Port Impedance
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0
-1
-0 .5
0
0.5
1
-1
-0 .5
0
0
0.5
1
-0 .2
-0 .2
-0 .4
-0 .4
-0 .6
-0 .6
-0 .8
-0 .8
-1
-1
Datasheet: Rev E 09-25-14
-
5 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
