BSM30GP60-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BSM30GP60-A

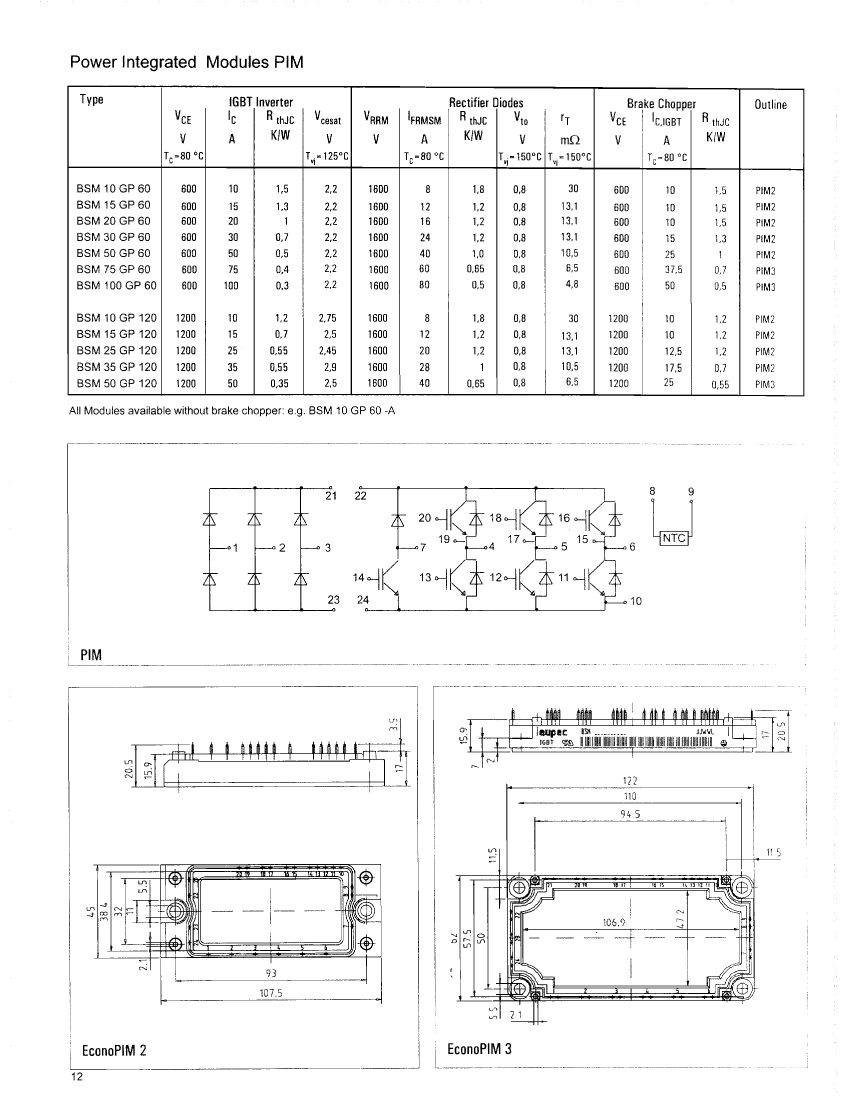

BSM30GP60-A: DescriptionInsulated Gate Bipolar Transistor, 30A I(C), 600V V(BR)CES, N-Channel,; CategoryDiscrete semiconductor The transistor; File Size49KB，1 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric Compare View All

BSM30GP60-A Overview

Insulated Gate Bipolar Transistor, 30A I(C), 600V V(BR)CES, N-Channel,

BSM30GP60-A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum collector current (IC)	30 A
Collector-emitter maximum voltage	600 V
Configuration	COMPLEX
JESD-30 code	R-XUFM-X24
Number of components	7
Number of terminals	24
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

BSM30GP60-A Related Products

	BSM30GP60-A	BSM35GP120-A	0436500614_18	BSM75GP60-A	BSM10GP60-A	BSM20GP60-A	BSM50GP120-A	BSM15GP60-A	BSM15GP120-A	BSM10GP120-A
Description	Insulated Gate Bipolar Transistor, 30A I(C), 600V V(BR)CES, N-Channel,	Insulated Gate Bipolar Transistor, 35A I(C), 1200V V(BR)CES, N-Channel,	Micro-Fit 3.0 Right Angle Header, 3.00mm Pitch, Single Row, 6 Circuits	Insulated Gate Bipolar Transistor, 75A I(C), 600V V(BR)CES, N-Channel,	Insulated Gate Bipolar Transistor, 10A I(C), 600V V(BR)CES, N-Channel,	Insulated Gate Bipolar Transistor, 20A I(C), 600V V(BR)CES, N-Channel,	Insulated Gate Bipolar Transistor, 50A I(C), 1200V V(BR)CES, N-Channel,	Insulated Gate Bipolar Transistor, 15A I(C), 600V V(BR)CES, N-Channel,	Insulated Gate Bipolar Transistor, 15A I(C), 1200V V(BR)CES, N-Channel,	Insulated Gate Bipolar Transistor, 10A I(C), 1200V V(BR)CES, N-Channel,
Reach Compliance Code	unknown	unknown	-	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	30 A	35 A	-	75 A	10 A	20 A	50 A	15 A	15 A	10 A
Collector-emitter maximum voltage	600 V	1200 V	-	600 V	600 V	600 V	1200 V	600 V	1200 V	1200 V
Configuration	COMPLEX	COMPLEX	-	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX
JESD-30 code	R-XUFM-X24	R-XUFM-X24	-	R-XUFM-X24	R-XUFM-X24	R-XUFM-X24	R-XUFM-X24	R-XUFM-X24	R-XUFM-X24	R-XUFM-X24
Number of components	7	7	-	7	7	7	7	7	7	7
Number of terminals	24	24	-	24	24	24	24	24	24	24
Package body material	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL	-	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	-	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	-	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Transistor component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	-	EUPEC [eupec GmbH]	-	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]
