BTX18-300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BTX18-300

BTX18-300: DescriptionSilicon Controlled Rectifier, 1.6A I(T)RMS, 350V V(DRM), 350V V(RRM), 1 Element, TO-39, METAL PACKAGE-3; CategoryAnalog mixed-signal IC Trigger device; File Size394KB，7 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

BTX18-300 Overview

Silicon Controlled Rectifier, 1.6A I(T)RMS, 350V V(DRM), 350V V(RRM), 1 Element, TO-39, METAL PACKAGE-3

BTX18-300 Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown
Shell connection	ANODE
Configuration	SINGLE
JEDEC-95 code	TO-39
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Maximum rms on-state current	1.6 A
Off-state repetitive peak voltage	350 V
Repeated peak reverse voltage	350 V
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Trigger device type	SCR
Base Number Matches	1

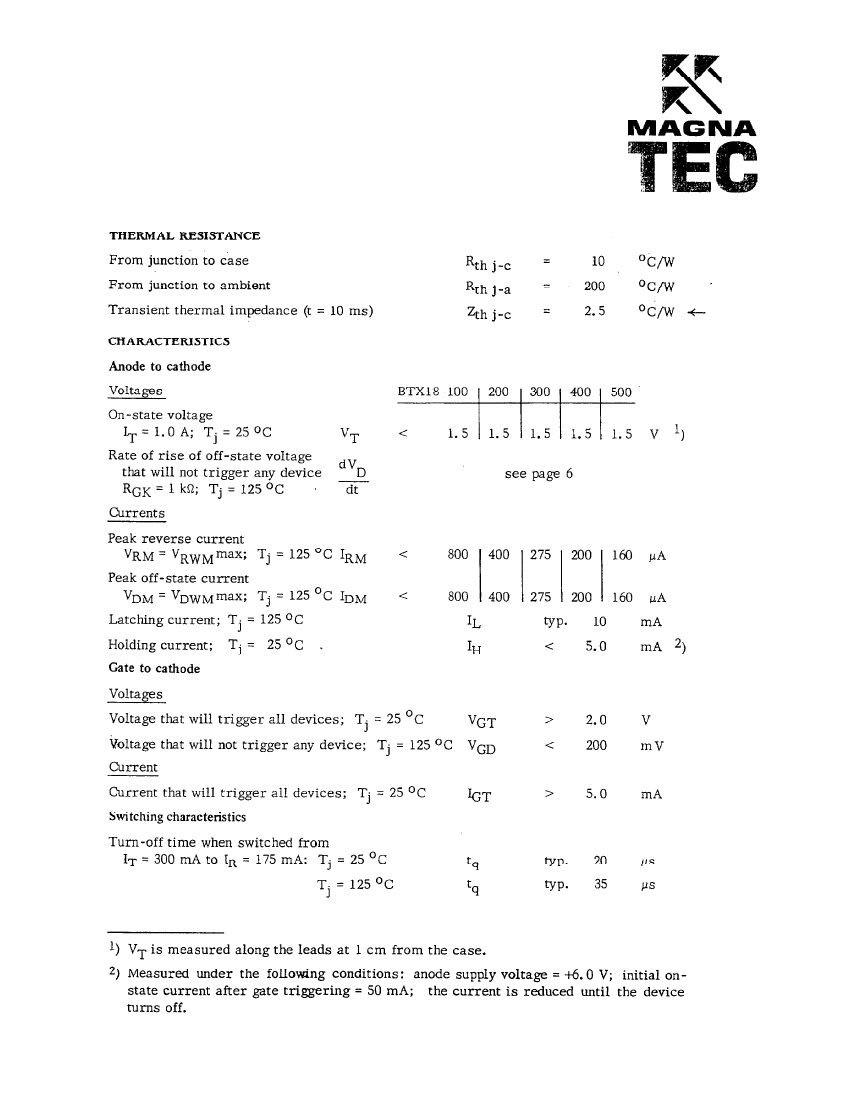

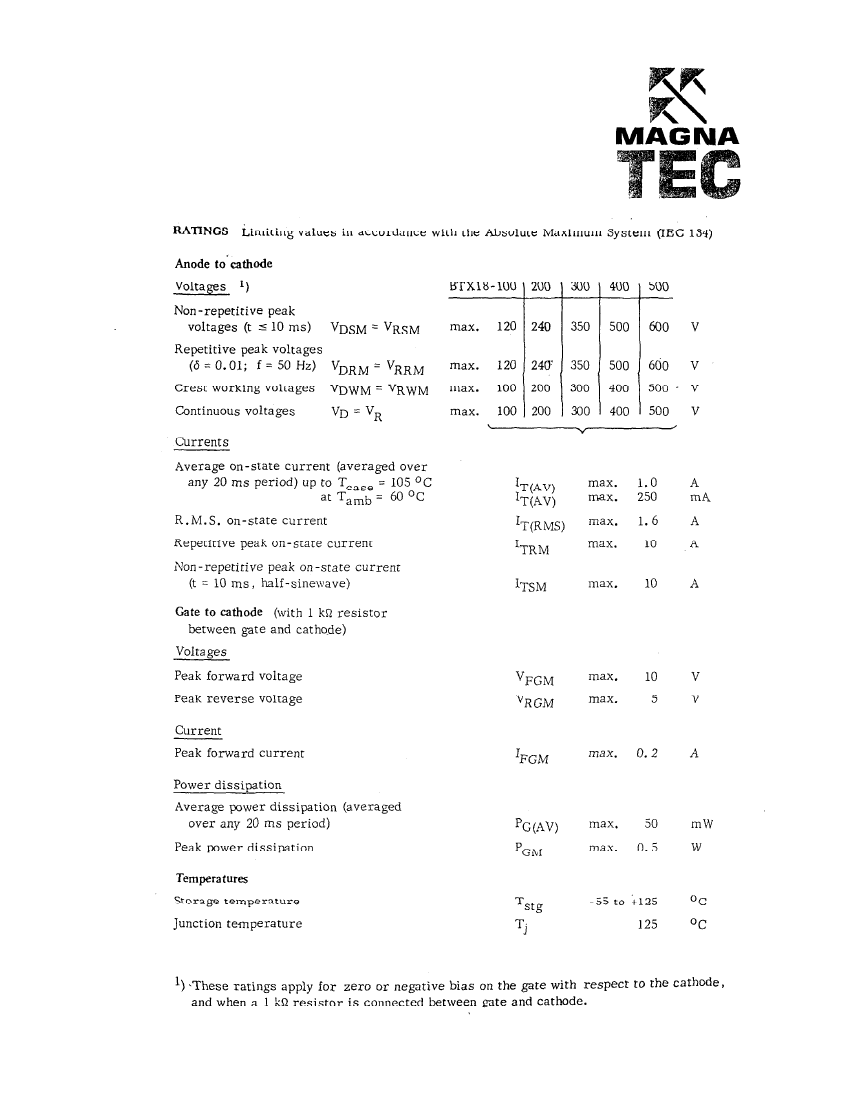

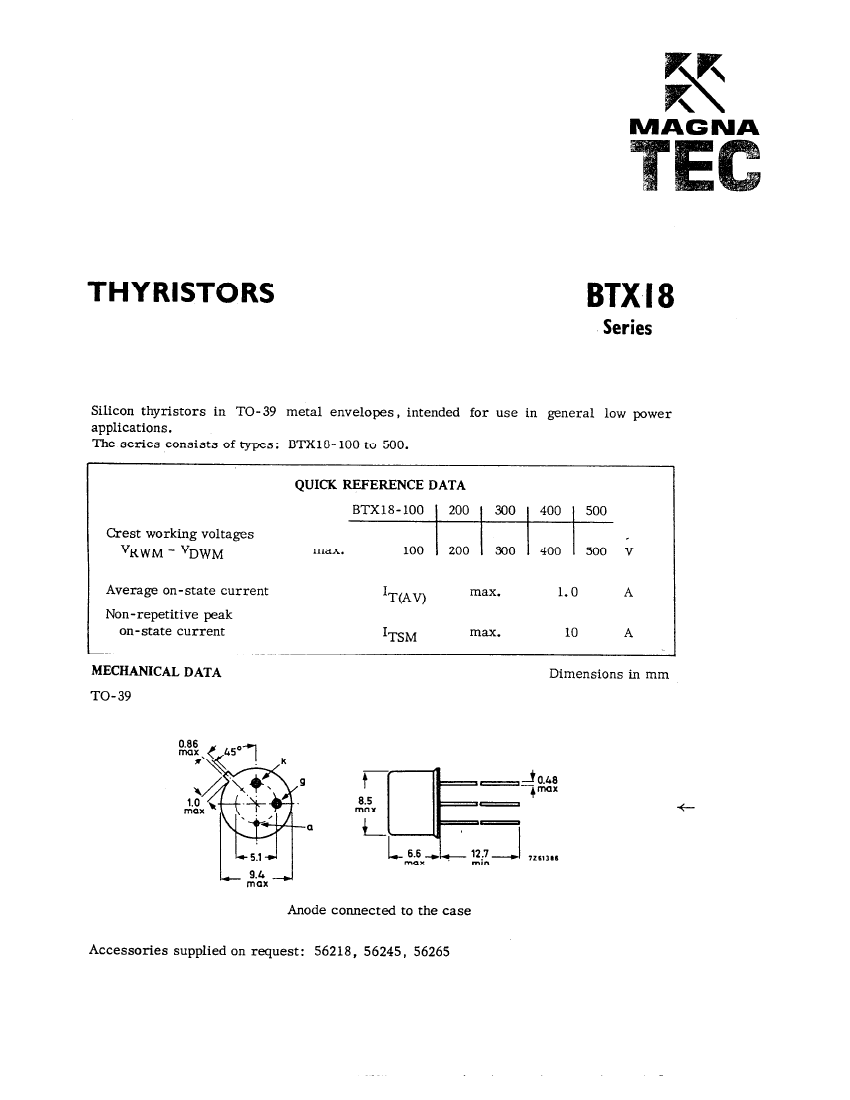

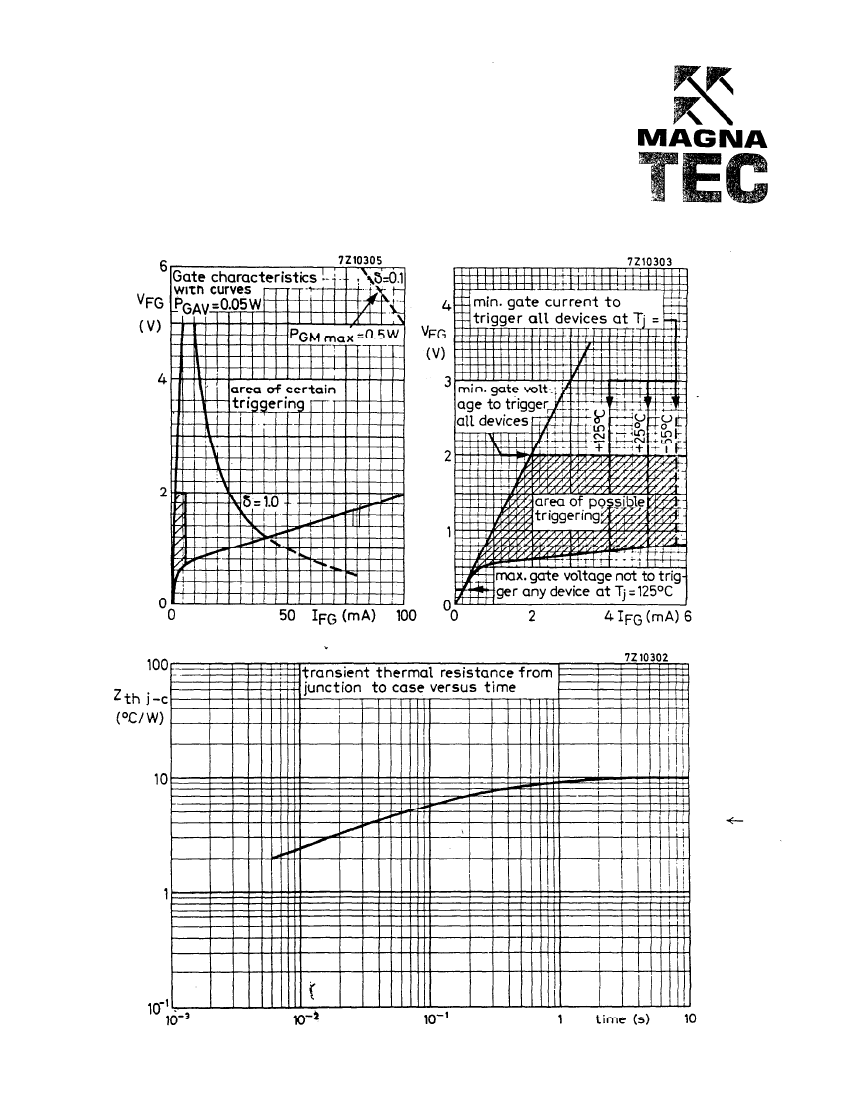

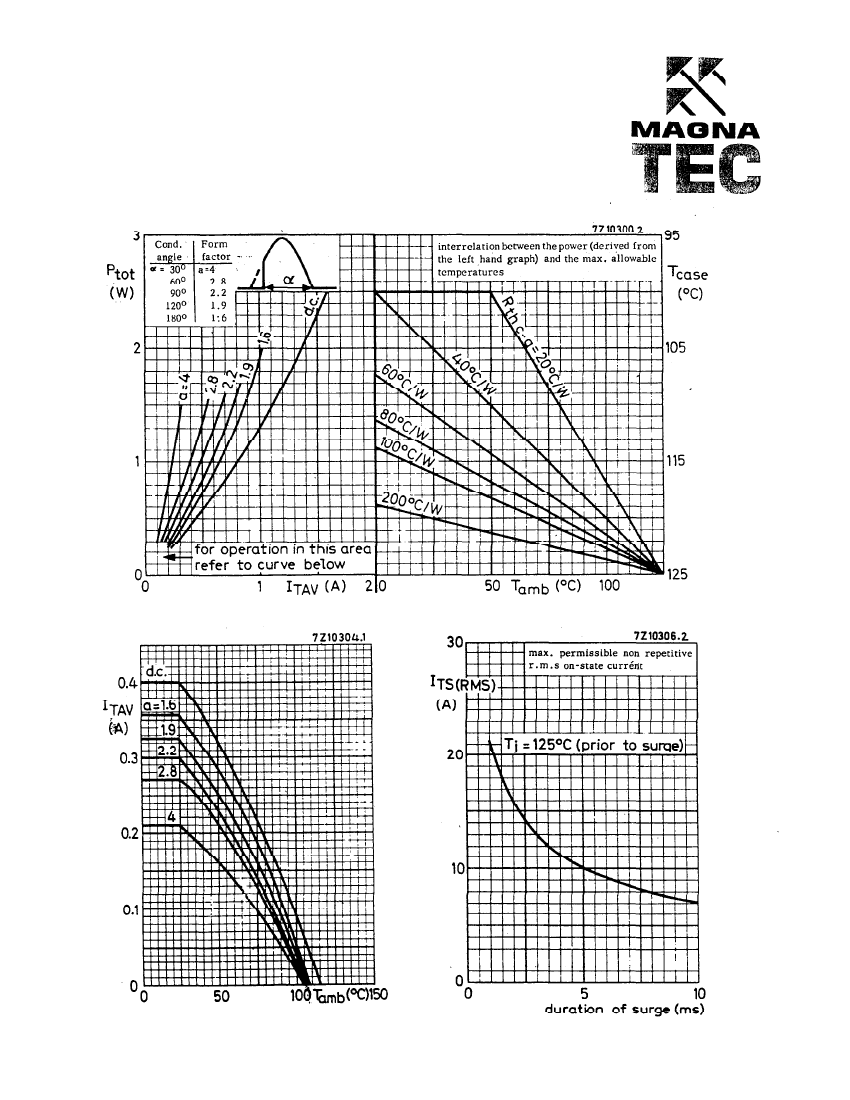

Preview

Download Datasheet

View All

BTX18-300 Related Products

	BTX18-300	BTX18-100	BTX18-200	BTX18-400	BTX18-500
Description	Silicon Controlled Rectifier, 1.6A I(T)RMS, 350V V(DRM), 350V V(RRM), 1 Element, TO-39, METAL PACKAGE-3	Silicon Controlled Rectifier, 1.6A I(T)RMS, 120V V(DRM), 120V V(RRM), 1 Element, TO-39, METAL PACKAGE-3	Silicon Controlled Rectifier, 1.6A I(T)RMS, 240V V(DRM), 240V V(RRM), 1 Element, TO-39, METAL PACKAGE-3	Silicon Controlled Rectifier, 1.6A I(T)RMS, 500V V(DRM), 500V V(RRM), 1 Element, TO-39, METAL PACKAGE-3	Silicon Controlled Rectifier, 1.6A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, TO-39, METAL PACKAGE-3
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-39	TO-39	TO-39	TO-39	TO-39
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Maximum rms on-state current	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A
Off-state repetitive peak voltage	350 V	120 V	240 V	500 V	600 V
Repeated peak reverse voltage	350 V	120 V	240 V	500 V	600 V
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Trigger device type	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1
