B81133-C1225-M026 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B81133-C1225-M026

B81133-C1225-M026: DescriptionCAPACITOR, METALLIZED FILM, 2.2uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size512KB，5 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B81133-C1225-M026 Overview

CAPACITOR, METALLIZED FILM, 2.2uF, THROUGH HOLE MOUNT, RADIAL LEADED

B81133-C1225-M026 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE(V): 275, SAFETY CLASS X2
capacitance	2.2 µF
Capacitor type	FILM CAPACITOR
JESD-609 code	e3
Manufacturer's serial number	B81133
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	20%
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

EMI Suppression Capacitors

Construction

Plastic case (UL 94 V-0)

Epoxy resin sealing, flame-retardant

Axial leads, insulating sleeve (type B81191)

Features

Self-healing

Smallest possible dimensions

Terminals

Parallel wire leads, tinned

Two standard lead lengths

available: 6 mm und 26 mm

Other lead lengths available upon request.

Central axial wire leads, tinned (type B 81 191)

Delivery mode

Bulk (untaped) and/or

taped (Ammo pack or reel)

Marking

Manufacturer’s logo, lot number, date code,

rated capacitance (coded),cap. tolerance (code letter),

rated ac voltage, type number, interference suppression

sub-class, style (MKP or MKT), self-healing (SH), climatic

category, awarded marks of conformity.

Example for marking:

Marks of conformity

AAAAA C1104

XX-µ1 M 275V~

B81130 X2 MKP/SH

40/100/21/C

D E

250V~

KMK0374-E

IEC 384 14(2) 250V~

EN 132 400,

IEC 384-14, 2nd edition

CSA C22.2 No. 0; 1 or

CSA C22.2 No. 0; 8

UL 1414

EN 132 400,

IEC 384-14, 2nd edition

Approved by UL acc. to

CSA C22.2 No. 0; 1

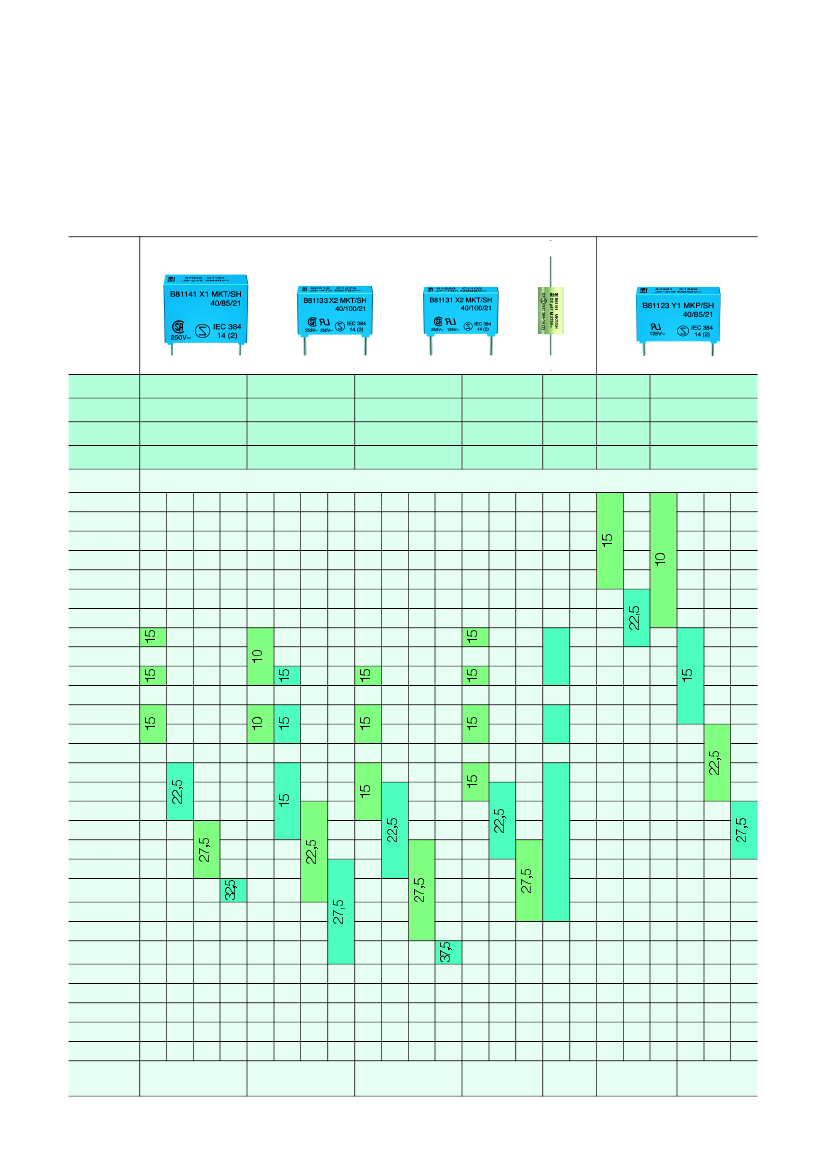

Sub-class

Style

Type

MKT

B 81 141

MKP

B 81 130

MKT

B 81 133

B 81 131 (SAFE-X)

B 81 191 (axial)

275 ... 300 Vac

40/100/21

S+M

MKP

B 81 123

MKT

B 81 122-C

Lead spacing

=10 mm

250 Vac

40/100/21

MKP

B 81 122-A

Lead spacing

≥

15 mm

250 Vac

40/085/21

Rated voltage

(50/60 Hz)

IEC climatic

B81133-C1225-M026 Related Products

	B81133-C1225-M026	B81133-C1225-M000	B81141-C1684-M026
Description	CAPACITOR, METALLIZED FILM, 2.2uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, 2.2uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, 0.68uF, THROUGH HOLE MOUNT, RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	RATED AC VOLTAGE(V): 275, SAFETY CLASS X2	RATED AC VOLTAGE(V): 275, SAFETY CLASS X2	SAFETY CLASS X1
capacitance	2.2 µF	2.2 µF	0.68 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
JESD-609 code	e3	e3	e3
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%
Number of terminals	2	2	2
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	BULK	BULK
positive tolerance	20%	20%	20%
surface mount	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	WIRE	WIRE	WIRE
Manufacturer's serial number	B81133	B81133	-
Base Number Matches	1	1	-
