DESCRIPTION
RELEASED FOR PRODUCTION
2
REVISIONS
1
DATE
11/02/01
08/28/03
2/8/08
CHANGED BY
MCCORMICK
MCCORMICK
D.GRIFFIN
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
REVISED;RESISTANCE,INSULATOR MATERIAL & HEAD DIAMETER (ECN 1474)
ECN 3194: UPDATE DWG FORMAT
D
.97 [24.64]

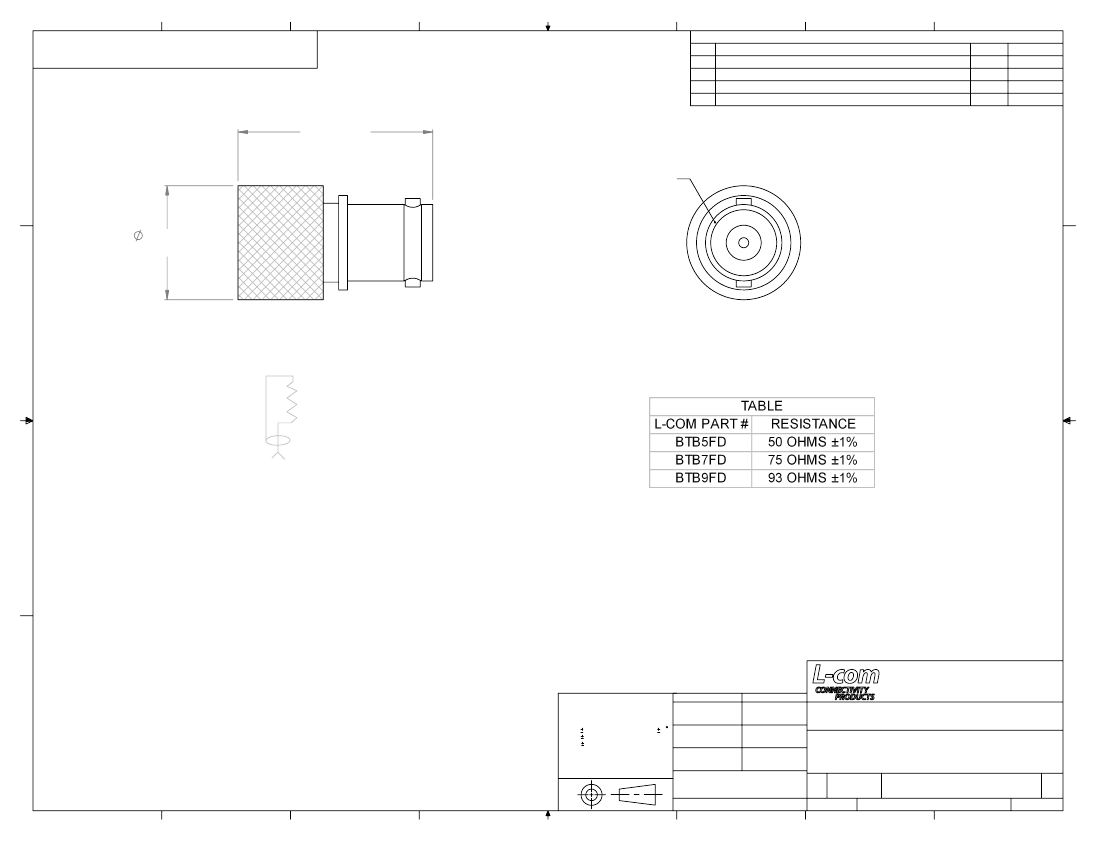

BNC JACK
D
.57 [14.48]
C
C
CIRCUIT DIAGRAM
B
B
NOTES:
MATERIAL:
BODY: NICKEL PLATED BRASS
CONTACTS: BRASS, GOLD FLASHED
INSULATOR: ACETAL
RESISTOR: 1/4 WATT CARBON FILM TYPE
A
PACKAGING:
INDIVIDUALLY PACKAGE IN A POLYBAG
RoHS Compliant
APPROVALS
UNLESS OTHERWISE SPECIFIED,
DRAWN BY
DIMENSIONS ARE IN INCHES [mm]
CMCCORMICK
TOLERANCES TO BE:
.X .1 [2.5]
ANGLES 2 CHECKED BY
.XX .01 [.25]
ENF
.XXX .005 [.13]
OVERALL CABLE LENGTH TOL:
≤
60 [1524] +3 [76.2] / - 0
> 60 [1524] +5% / -0%
PROJ
APPROVED BY
D.PARHAM
DATE
CATEGORY
11/01/01
11/01/01
11/01/01
SIZE
PRODUCT DESCRIPTION
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
COAXIAL
A
TERMINATOR BNC F RG58 50 OHM
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
SCALE: NONE CAD FILE:
A
43321
FSCM NO.
DWG. NO.
BTB5FD
1
BTB5FD.SLDDRW
SHEET 1 OF 1
C
REV.
8
7
6
5
4
3
2
