BG205-19-A-1050-N-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG205-19-A-1050-N-A

BG205-19-A-1050-N-A: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG205-19-A-1050-N-A Overview

Board Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BG205-19-A-1050-N-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.154 inch
subject depth	0.319 inch
body length	1.9 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
maximum insertion force	3.0024 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BG205
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	8.89 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

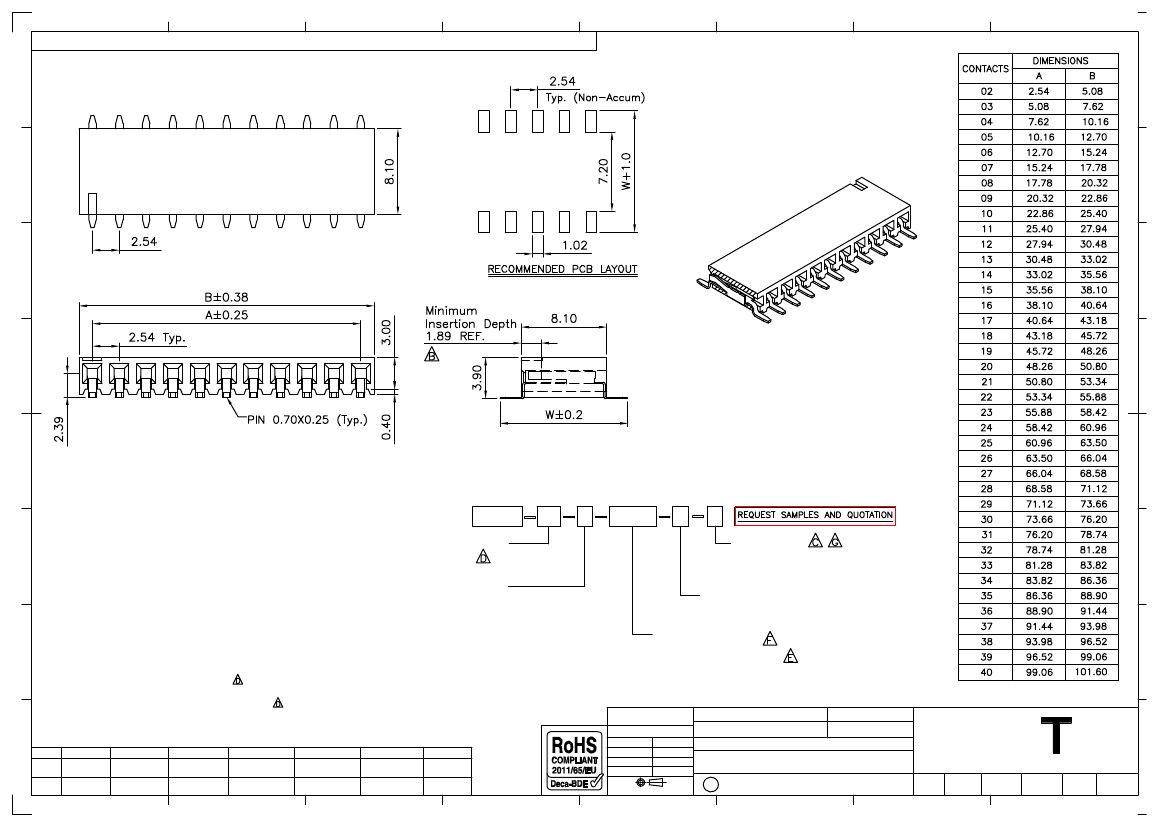

Global Connector Technology Ltd. - BG205: 2.54mm PITCH SOCKET, SINGLE ROW, SURFACE MOUNT, HORIZONTAL

SPECIFICATIONS

规格

CURRENT RATING

电流额定值：

3 AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 600 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

CONTACT PLATING: GOLD/TIN OVER NICKEL

INSULATOR MATERIAL

绝缘½物料：

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG020

BG030

BG035

BG055

BG060

BG075

BG080

Ordering Grid

BG205

No. of Contacts

02 to 40

XXXX

Packing Options

A = Tape and Reel (Standard)

D = Tube

(4 - 40 contacts only)

G = Box

(2 or 3 contacts only)

Insulator Material

N = Nylon 6T (Standard)

L = LCP

Contact Plating

A = Gold Flash All Over (Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Dimension W (1/100mm)

(Footprint Width)

Standard - 10.50mm = 1050

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

BG205

Description:-

30 OCT 06

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

30/10/06

DIMENSION

AMENDMENT

09/03/09

CHANGE TO

DIMENSION

W STANDARD = 1050

AJO

PACKING OPTIONS CHANGE TO SOLDER

TEMP. INFORMATION

CHANGED

& NO. OF CONTACTS

BOX PACKING

AMENDED

SELECTABLE WIDTH OPTION ADDED

X.X ± 0.20

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±2°

.XX°±1°

.XXX°±0.5°

2.54mm PITCH SOCKET, SINGLE ROW, SURFACE MOUNT,

HORIZONTAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

27/04/09

05/08/09

20/08/09

16/07/12

01/02/13

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1
