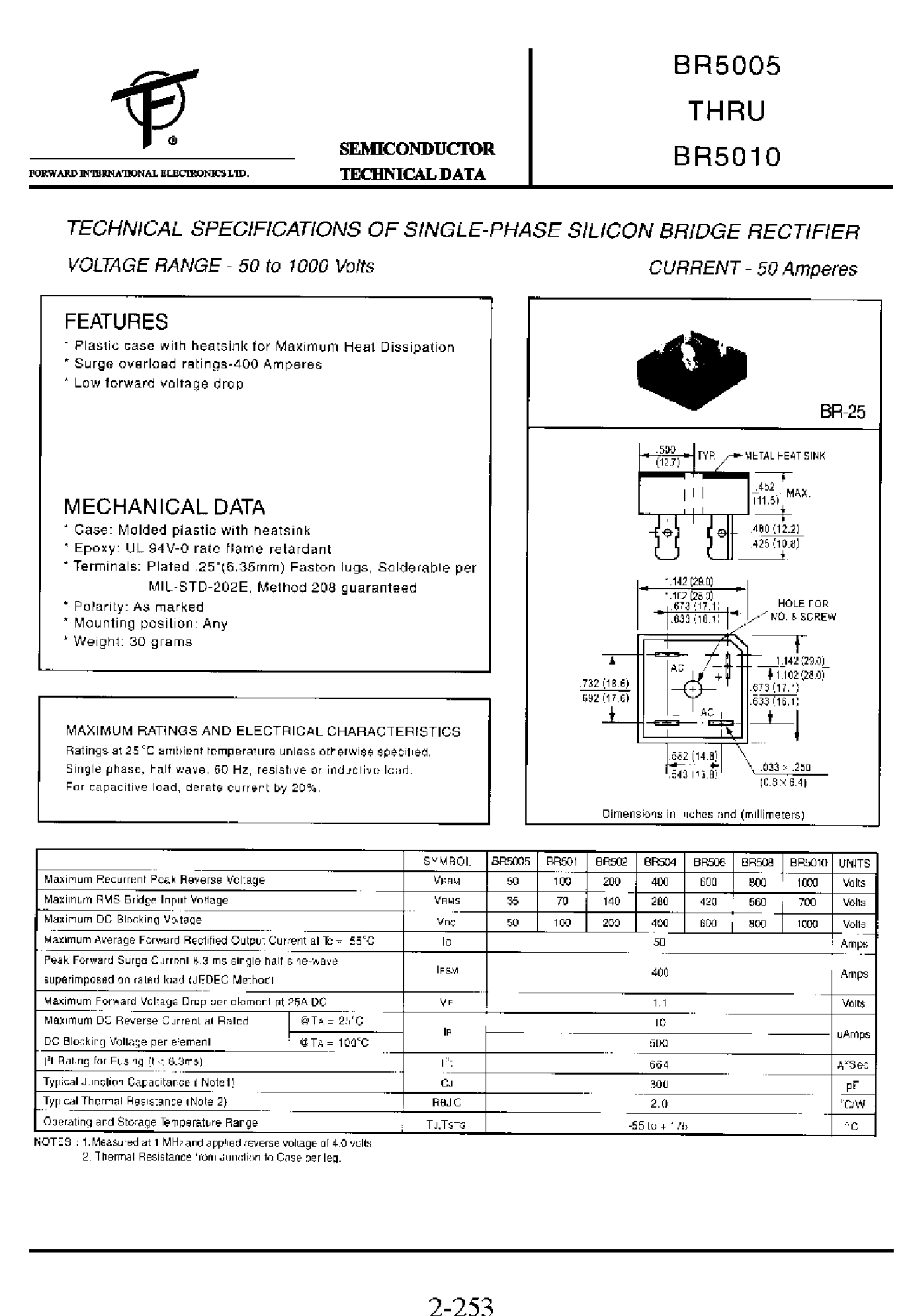

BR5005 datasheet, PDF - EEWORLD Datasheet

BR5005: DescriptionBridge Rectifier Diode, 50A, 50V V(RRM),; CategoryDiscrete semiconductor diode; File Size63KB，2 Pages; ManufacturerKuwait Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

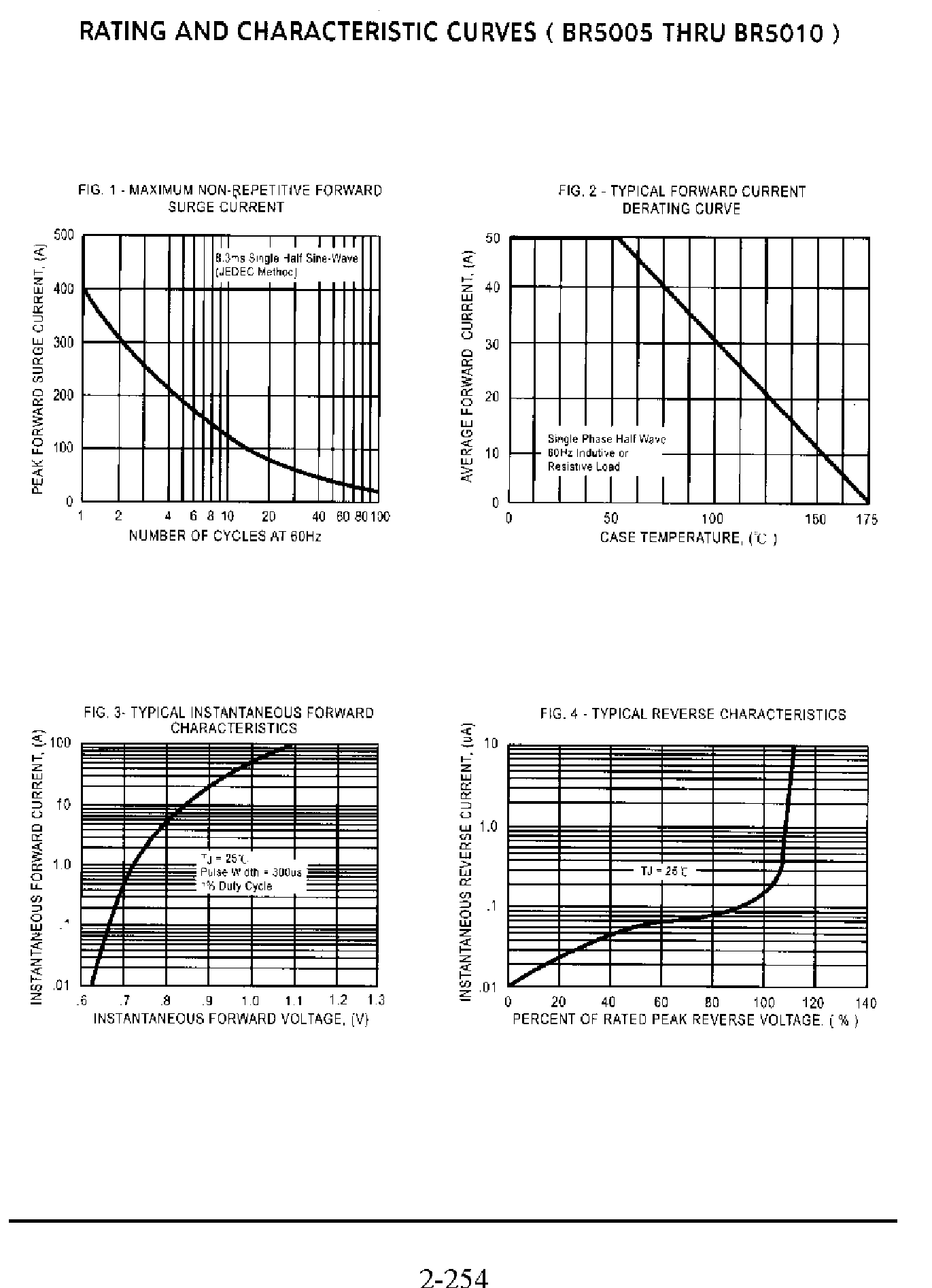

BR5005 Overview

Bridge Rectifier Diode, 50A, 50V V(RRM),

Parameter Name	Attribute value
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	400 A
Number of components	4
Maximum operating temperature	175 °C
Maximum output current	50 A
Maximum repetitive peak reverse voltage	50 V
surface mount	NO
Base Number Matches	1

	BR5005	BR5010	BR502
Description	Bridge Rectifier Diode, 50A, 50V V(RRM),	Bridge Rectifier Diode, 50A, 1000V V(RRM),	Bridge Rectifier Diode, 50A, 200V V(RRM),
Reach Compliance Code	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	400 A	400 A	400 A
Number of components	4	4	4
Maximum operating temperature	175 °C	175 °C	175 °C
Maximum output current	50 A	50 A	50 A
Maximum repetitive peak reverse voltage	50 V	1000 V	200 V
surface mount	NO	NO	NO
Base Number Matches	1	1	-
Maker	-	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.
