BT-A55DRD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BT-A55DRD

BT-A55DRD: DescriptionSmart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, TD-10, 28 PIN; CategoryLED optoelectronic/LED photoelectric; File Size102KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BT-A55DRD Overview

Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, TD-10, 28 PIN

BT-A55DRD Parametric

Parameter Name	Attribute value
package instruction	TD-10, 28 PIN
Reach Compliance Code	unknown
color	SUPER RED
Configuration	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT
Display height	14.224 mm
Maximum forward current	0.03 A
Number of functions	3
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

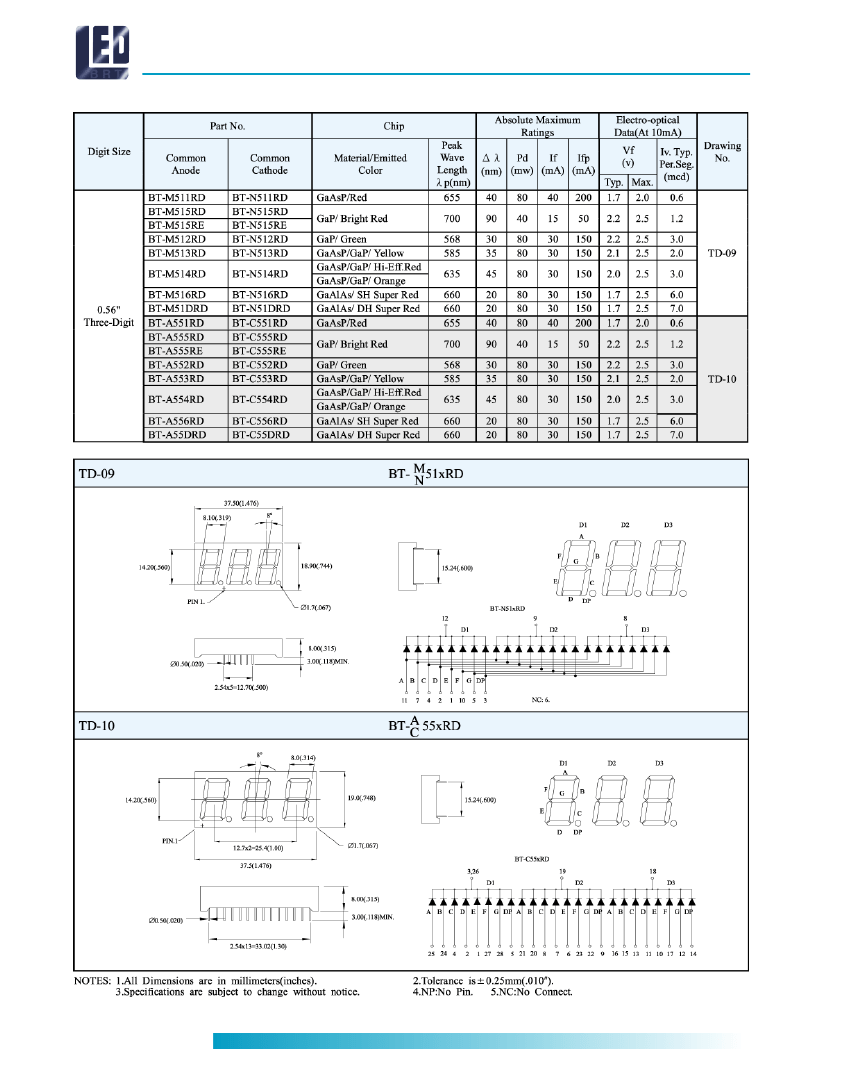

Three Digit LED Displays

B T-A/C, BT-M/N Series

7-segment

AMERICAN BRIGHT

154

w w w. a m e r i c a n b r i g h t l e d . c o m

BT-A55DRD Related Products

	BT-A55DRD	BT-N514RD	BT-C555RD	BT-C551RD	BT-M512RD	BT-A556RD	BT-A551RD	BT-A555RD	BT-C553RD
Description	Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, TD-10, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 14.224mm, TD-09, 12 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, TD-10, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 14.224mm, TD-10, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Green, 14.224mm, TD-09, 12 PIN	Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, TD-10, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 14.224mm, TD-10, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, TD-10, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 14.224mm, TD-10, 28 PIN
package instruction	TD-10, 28 PIN	TD-09, 12 PIN	TD-10, 28 PIN	TD-10, 28 PIN	TD-09, 12 PIN	TD-10, 28 PIN	TD-10, 28 PIN	TD-10, 28 PIN	TD-10, 28 PIN
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	SUPER RED	HIGH EFFICIENCY RED/ORANGE	BRIGHT RED	RED	GREEN	SUPER RED	RED	BRIGHT RED	YELLOW
Configuration	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height	14.224 mm	14.224 mm	14.224 mm	14.224 mm	14.224 mm	14.224 mm	14.224 mm	14.224 mm	14.224 mm
Maximum forward current	0.03 A	0.03 A	0.015 A	0.04 A	0.03 A	0.03 A	0.04 A	0.015 A	0.03 A
Number of functions	3	3	3	3	3	3	3	3	3
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maker	-	-	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT
