BK/S-8202-11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> BK/S-8202-11

BK/S-8202-11: DescriptionBARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size78KB，1 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

BK/S-8202-11 Overview

BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

BK/S-8202-11 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	THERMOPLASTIC
Fastening method	SCREW
Manufacturer's serial number	8200
Installation type	DIN RAIL
Number of layers	1
Rows	1
Number of channels	11
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

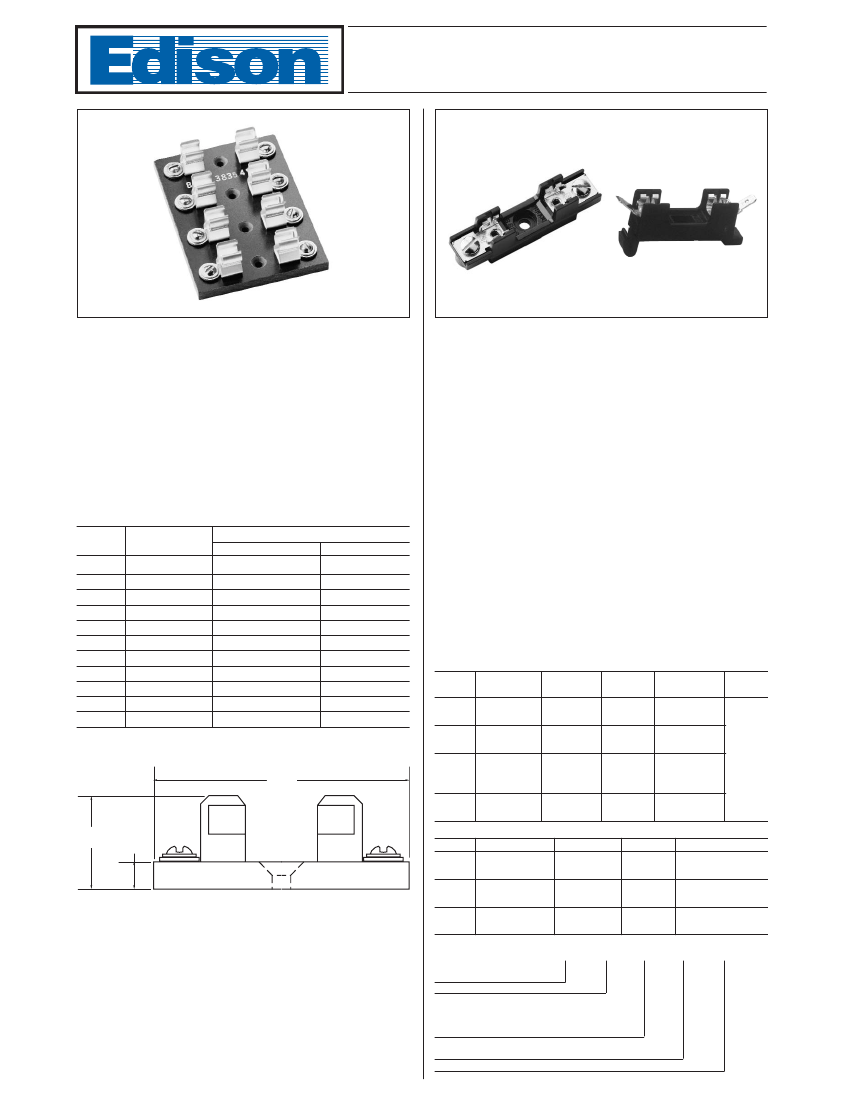

FUSE BLOCKS FOR MIDGET

AND ELECTRONIC FUSES

Catalog Number 3835 Series

MULTIPLE POLE FUSEBLOCKS:

3835 Series:

For 13/32" x 1-1/2" (10.3mm x 28.1mm) fuses.

Ampere Rating:

30 Amps

Voltage Rating:

250 volts

Material:

Silver-plated, beryllium copper clips.

No side barriers. Screw terminals.

Phenolic base.

Catalog Number 8000 Series

BOLT-IN AND SNAP-IN MOUNTING FUSEBLOCKS:

For 1/4" x 1-1/4" fuses.

Blocks are molded flame retarded

thermopastic. Clips are spring-bronze.

Voltage Rating:

300V

Agency Approvals:

UL Recognized under Components Program; File E14853A,

Guide IZLT2

CSA Certified Class 6225-01, File 47235

Anti-Rotation Pin:

Single-pole blocks may be ordered

without the antirotational pin simply

by adding an “X” to the number of

poles (Example: BK/S-8001-1X).

Carton Quantity:

10; shelf package: 100.

Bulk Carton:

Single-pole and 2-pole fuse blocks

— 1,000; Multiple-pole fuse blocks

— 3-8 pole: 200; 9-12 pole: 50.

When ordering bulk quantities, prefix “BK/” to catalog

number: (Example: BK/S-8001-1SNP).

Bolt-in Mounting

Series

8000

8100

Terminal

Solder

3/16" Quick

Connect

1/4" Quick

Connect

Screw

Amperes

UL 25A

CSA 21A

UL 20A

CSA 16A

UL 20A

CSA 16A

UL 30A

CSA 10A

Amperes

UL 25A

CSA 21A

UL 20A

CSA 16A

UL 20A

CSA 16A

Angle

0°

40°

0°

40°

0°

40°

Side

—

*Basic

Cat. No.

S-8001-

S-8002-

S-8101-

S-8102-

S-8201-

S-8202-

S-8203-

S-8301-

Poles

(Suffix)

Construction:

Catalog Data

Catalog

Number

3835-1

3835-2

3835-3

3835-4

3835-5

3835-6

3835-7

3835-8

3835-9

3835-10

3835-12

No. of

Poles

Base Length

Inches

27/32

1-13/16

2-25/32

3-3/4

4-23/32

5-11/16

6-21/32

7-5/8

8-19/32

9-9/16

11-1/2

21.4

46.0

70.6

95.2

119.9

144.5

169.0

193.7

218.8

242.9

292.1

*Base width — 2-3/4" (69.9mm)

1 - 12

2.75"

(69.9mm)

8200

8301

1.0"

(25.4mm)

Snap-in Mounting

(Poles available in single-pole only)

0.25"

(6.4mm)

Series

8000

8100

Terminal

Solder

3/16" Quick

Connect

1/4" Quick

Connect

Angle

0°

40°

0°

40°

0°

Side

Cat. No.

S-8001-1-SNP

S-8002-1-SNP

S-8101-1-SNP

S-8102-1-SNP

S-8201-1-SNP

S-8203-1-SNP

NOTE:

Mounting screw hole diameter is 0.148" (3.7mm).

Countersink, 0.313" (7.9mm). Max. Mounting scrw No. 6.

8200

Catalog Code

BK/

Prefix for Bulk Packing

Series 8000 Produce Line

Type Terminal

“0”-Solder; “1”-3/16"

Quick Connect; “2”-1/4"

Quick Connect; “3”-Screw

Terminal Angle

“01”-straight (0‚); “02”-40°; “03”-side*

Number of Poles (01-12)

S-8

-00

155
