BL-BEG2B1K datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-BEG2B1K

Preview

BL-BEG2B1K: DescriptionDual Color LED, High Efficiency Red/green, Diffused White, T-1, 3mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size200KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric View All

BL-BEG2B1K Overview

Dual Color LED, High Efficiency Red/green, Diffused White, T-1, 3mm, ROHS COMPLIANT PACKAGE-2

BL-BEG2B1K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
color	HIGH EFFICIENCY RED/GREEN
Configuration	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED WHITE
Nominal luminous intensity	50.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	4.3 mm
method of packing	BULK
peak wavelength	640/568 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	55 deg
Base Number Matches	1

Preview

Download Datasheet

View All

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BL-BEG2B1K

●

Features:

1. Chip material: GaAsP/GaP(Red)

and GaP/GaP (Green)

2. Emitted color :Hi-Eff Red and Green

3. Lens Appearance : White Diffused

4. Low power consumption.

5. High efficiency.

6. Versatile mounting on P.C. Board or panel.

7. Low current requirement.

8. 3mm diameter package.

9. This product don’t contained restriction

substance, compliance ROHS standard.

●

Package dimensions:

Notes:

●

Applications:

1. TV set

2. Monitor

3. Telephone

4. Computer

5. Circuit board

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.

3. Lead spacing is measured where the leads emerge from

the package.

4. Specifications are subject to change without notice.

●

Absolute Maximum Ratings(Ta=25℃)

Parameter

Power Dissipation

Forward Current

Peak Forward Current*

1

Reverse

Voltage

Operating Temperature

Storage Temperature

Soldering Temperature

Symbol

Pd

I

F

I

FP

V

R

Topr

Tstg

Tsol

Hi-Eff Red

80

30

150

5

-40

℃

~80

℃

-40

℃

~85

℃

260

℃

(for 5 seconds)

Green

80

30

150

Unit

mW

mA

V

*

1

Condition for I

FP

is pulse of 1/10 duty and 0.1msec width.

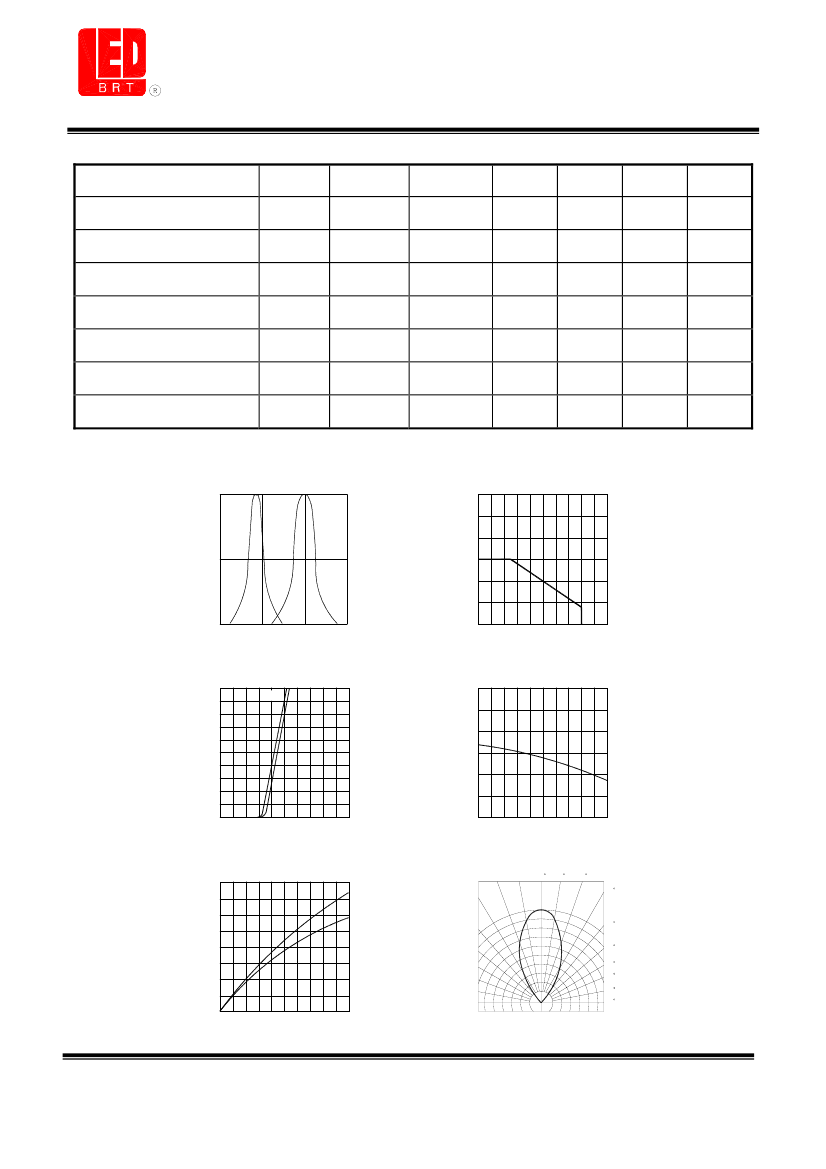

Ver.2.0 Page: 1 of 2
