Part Number

Search

BTH16244ADGG

Description
IC ABT SERIES, QUAD 4-BIT DRIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver
Categorylogic    logic
File Size172KB,10 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

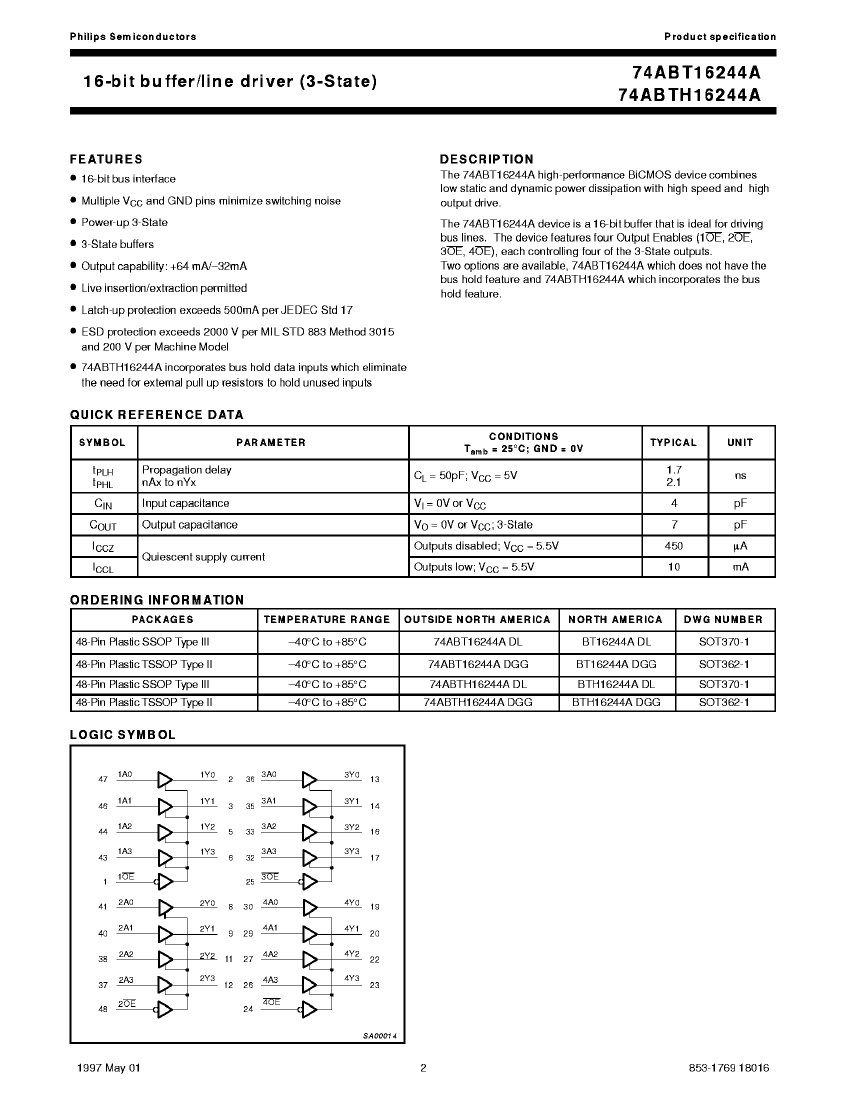

BTH16244ADGG Overview

IC ABT SERIES, QUAD 4-BIT DRIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver

BTH16244ADGG Parametric

Parameter NameAttribute value
package instructionTSSOP,
Reach Compliance Codeunknown
seriesABT
JESD-30 codeR-PDSO-G48
length12.5 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
Number of digits4
Number of functions4
Number of ports2

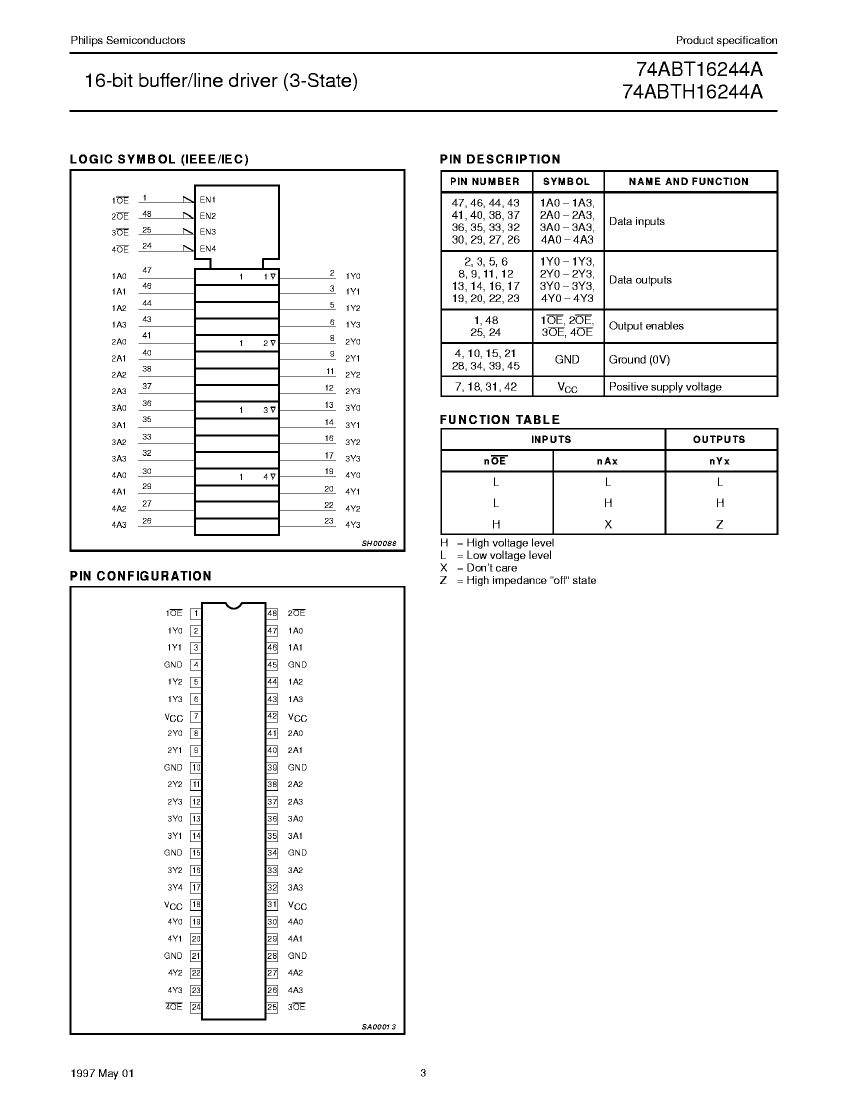

Number of terminals48

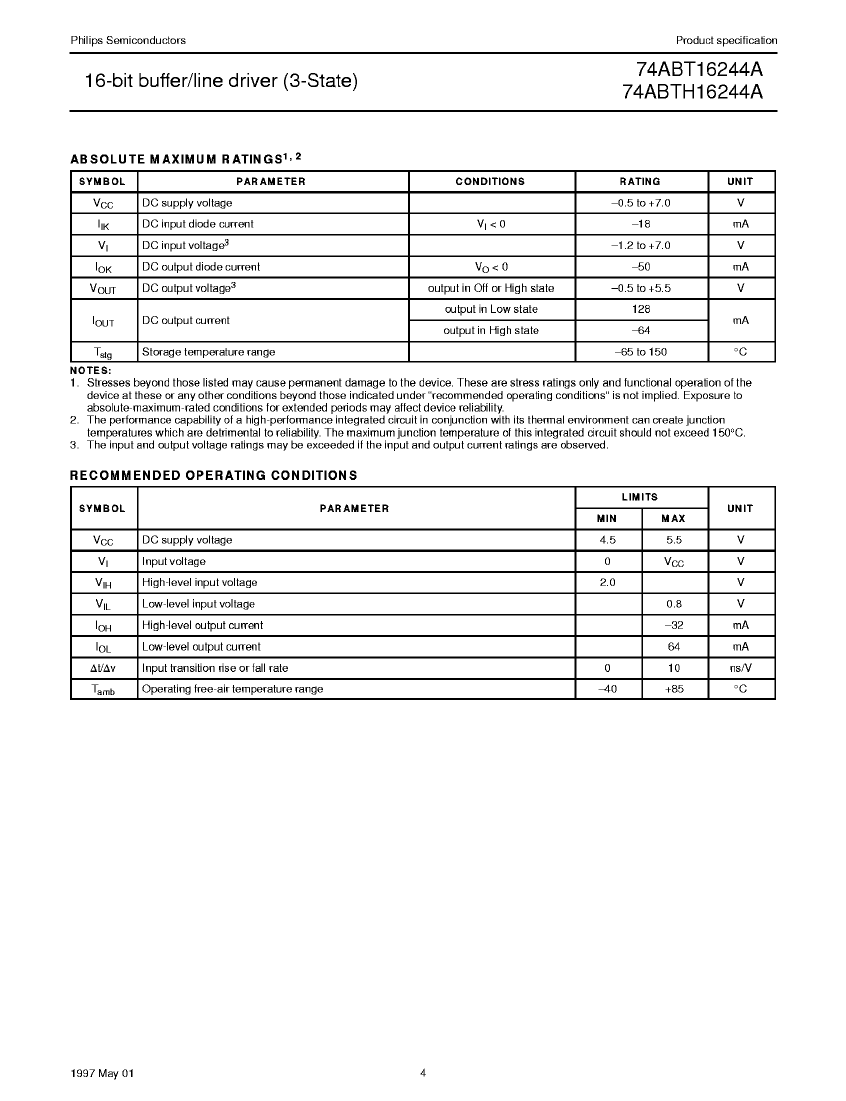

Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH

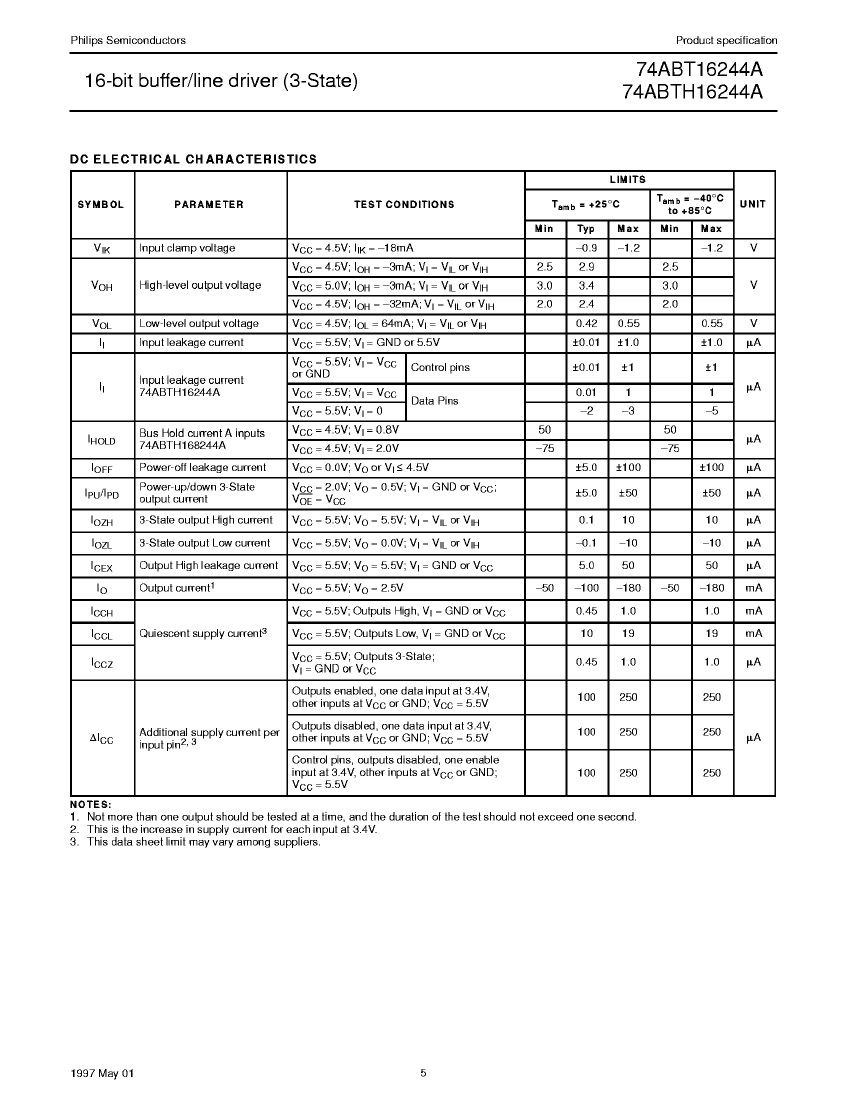

Maximum supply current (ICC)19 mA
propagation delay (tpd)3.4 ns
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyBICMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
width6.1 mm
Base Number Matches1
