BU-61590D5-10: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.800 INCH, 0.210 INCH HEIGHT, DIP-78; CategoryThe embedded processor and controller Microcontrollers and processors; File Size215KB，5 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BU-61590D5-10 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.800 INCH, 0.210 INCH HEIGHT, DIP-78

BU-61590D5-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	QIP
package instruction	QIP,
Contacts	78
Reach Compliance Code	compliant
Address bus width	16
boundary scan	NO
letter of agreement	MIL STD 1553A; MIL STD 1553B; McAir A3818; A5232; 16PP303; SPG151A; A5232; A5690
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	R-CQIP-P78
JESD-609 code	e0
low power mode	NO
Number of serial I/Os	2
Number of terminals	78
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.334 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	41.91 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

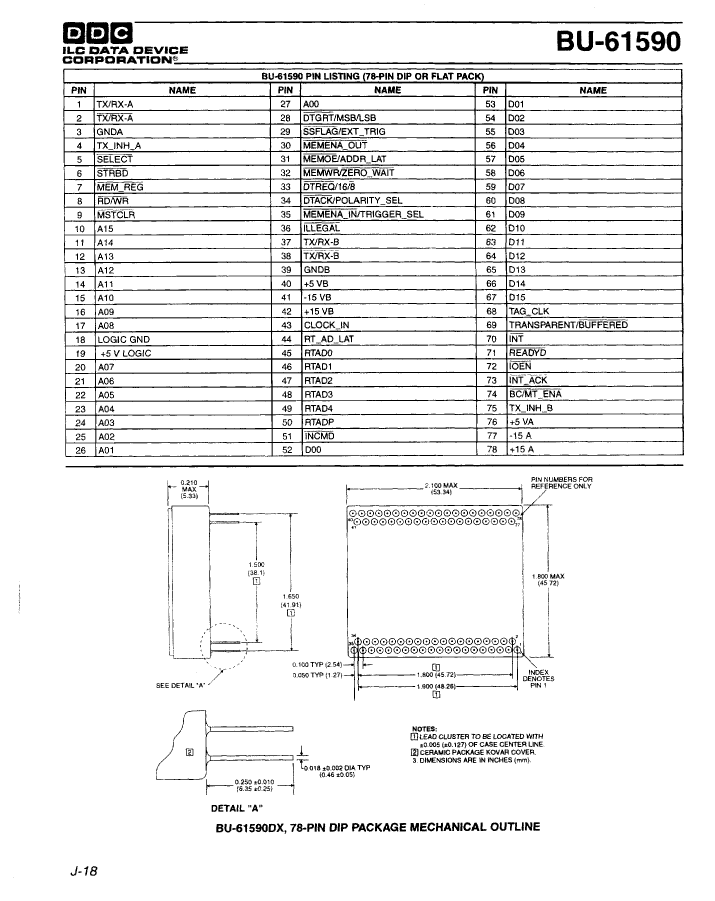

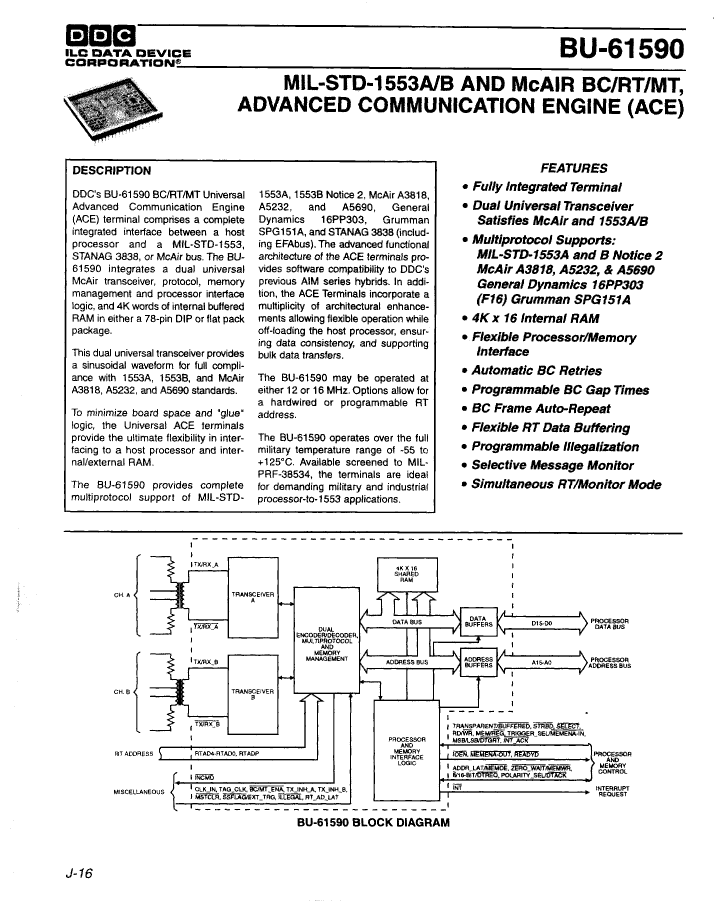

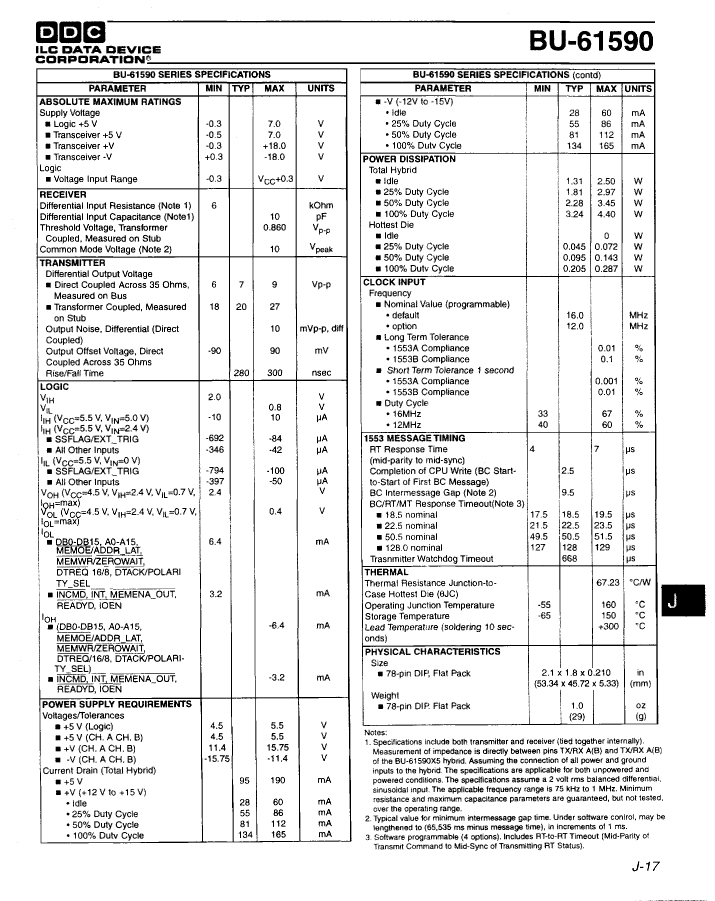

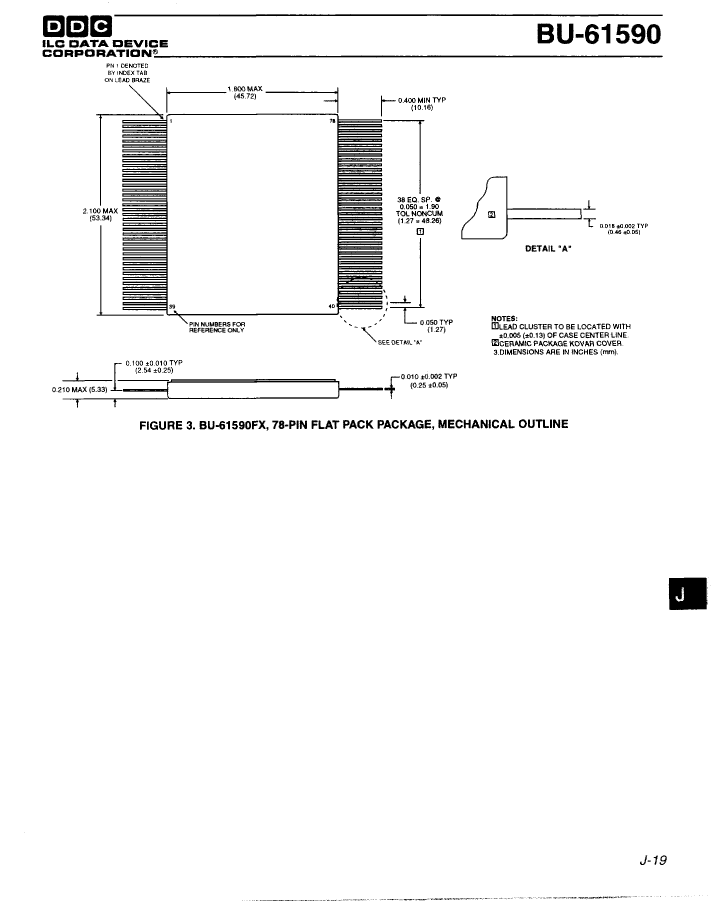

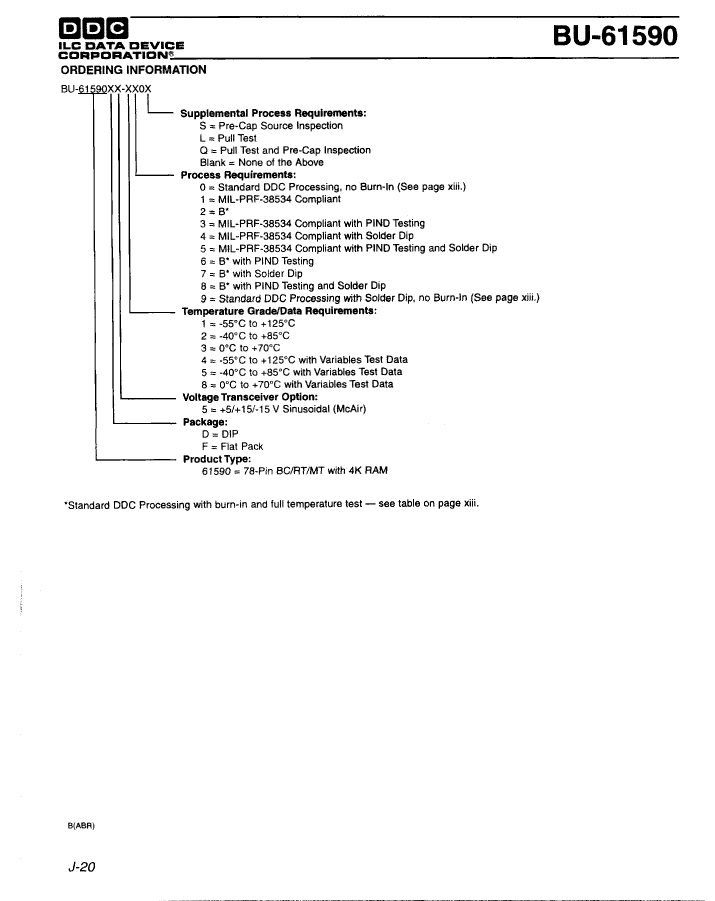

Preview

Download Datasheet

View All

BU-61590D5-10 Related Products

	BU-61590D5-10	BU-61590D5-11	BU-61590F5-30	BU-61590D5-12
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.800 INCH, 0.210 INCH HEIGHT, DIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.800 INCH, 0.210 INCH HEIGHT, DIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDFP78, 2.100 X 1.800 INCH, 0.210 INCH HEIGHT, FP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.800 INCH, 0.210 INCH HEIGHT, DIP-78
Parts packaging code	QIP	QIP	DFP	QIP
package instruction	QIP,	2.100 X 1.800 INCH, 0.210 INCH HEIGHT, DIP-78	DFP,	QIP,
Contacts	78	78	78	78
Reach Compliance Code	compliant	compliant	unknown	compliant
Address bus width	16	16	16	16
boundary scan	NO	NO	NO	NO
letter of agreement	MIL STD 1553A; MIL STD 1553B; McAir A3818; A5232; 16PP303; SPG151A; A5232; A5690	MIL STD 1553A; MIL STD 1553B; McAir A3818; A5232; 16PP303; SPG151A; A5232; A5690	MIL STD 1553A; MIL STD 1553B; McAir A3818; A5232; 16PP303; SPG151A; A5232; A5690	MIL STD 1553A; MIL STD 1553B; McAir A3818; A5232; 16PP303; SPG151A; A5232; A5690
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	16	16	16	16
JESD-30 code	R-CQIP-P78	R-CQIP-P78	R-CDFP-F78	R-CQIP-P78
low power mode	NO	NO	NO	NO
Number of serial I/Os	2	2	2	2
Number of terminals	78	78	78	78
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP	QIP	DFP	QIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.334 mm	5.334 mm	5.334 mm	5.334 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal form	PIN/PEG	PIN/PEG	FLAT	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Is it lead-free?	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	incompatible	-	incompatible
JESD-609 code	e0	e0	-	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Terminal surface	TIN LEAD	TIN LEAD	-	TIN LEAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
width	41.91 mm	41.91 mm	-	41.91 mm
Base Number Matches	1	1	1	-
