BR9302 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR9302

BR9302: Description1700 MHz - 2300 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size201KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR9302 Overview

1700 MHz - 2300 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, H2, TO-8B

BR9302 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	8.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	2300 MHz
Minimum operating frequency	1700 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

BR9302 / SBR9302*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

1700.0 - 2300.0 MHz

10.5 dB Typical

8.5 dB Min

5.0 dB Typical

6.5 dB Max

11.0 dBm Typical

9.0 dBm Min

23.0 dBm Typical

40.0 dBm Typical

1.8/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-13.0 dB Typical

-12.0 dB Min

15.0 Volts

18.0 mA

-55.0 - 85.0 °C

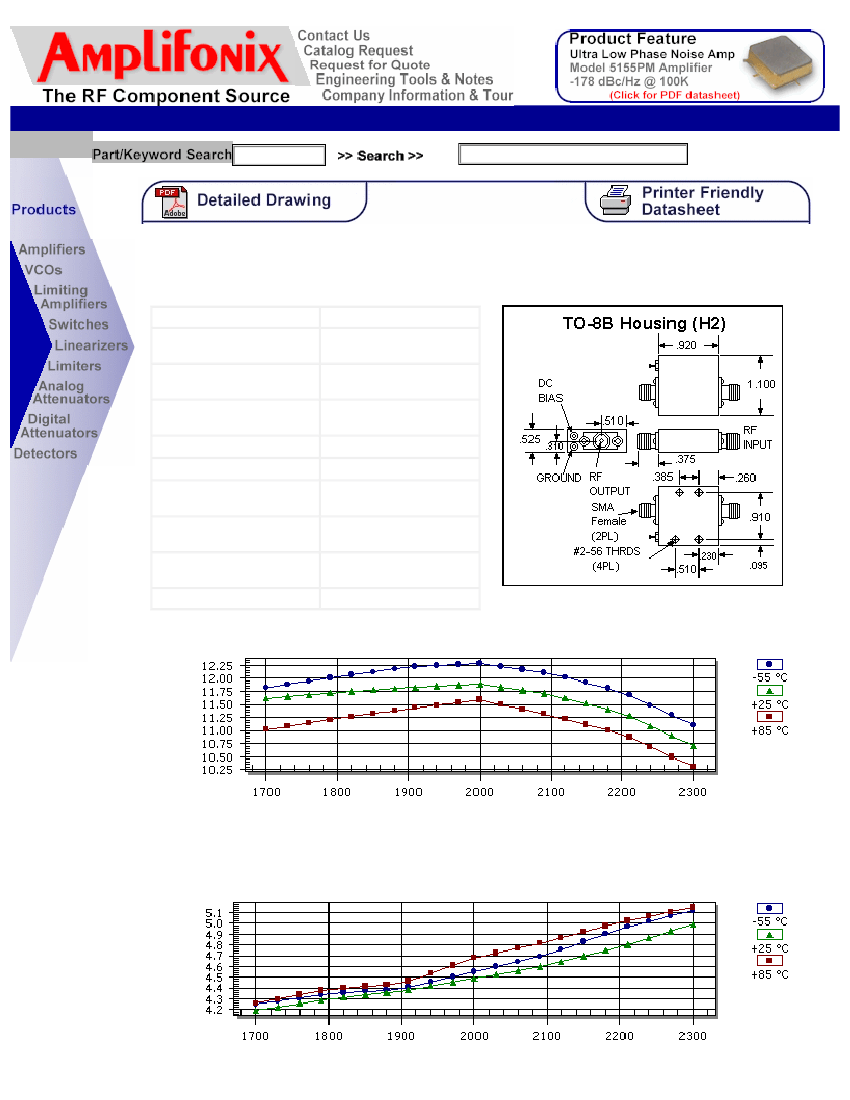

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR9302 Related Products

	BR9302	SBR9302
Description	1700 MHz - 2300 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, H2, TO-8B	1700 MHz - 2300 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, H2, TO-8B
Reach Compliance Code	unknown	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	8.5 dB	8.5 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	2300 MHz	2300 MHz
Minimum operating frequency	1700 MHz	1700 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
