BR7217 datasheet, PDF - EEWORLD Datasheet

BR7217: Description10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size632KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR7217 Overview

10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	24 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

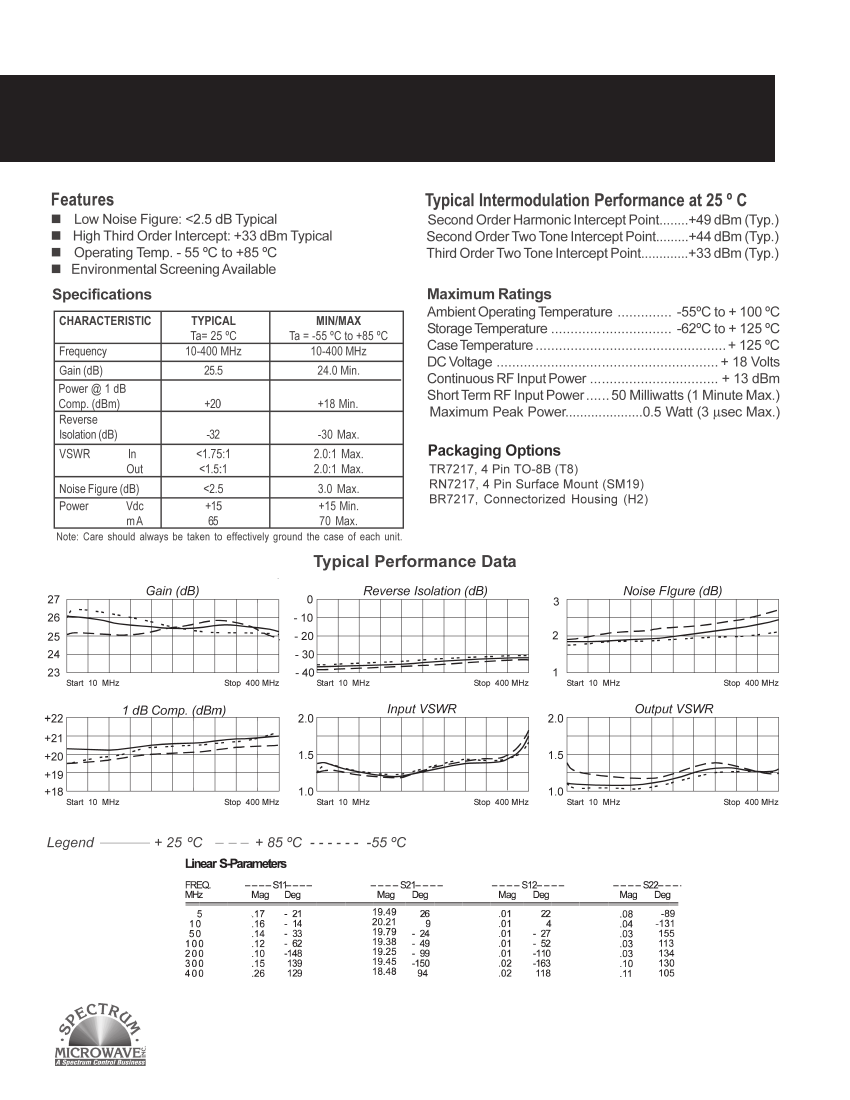

RF Amplifier

Low Noise: <2.5 dB

Model TR7217

10 to 400 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

362

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

	BR7217	TR7217	RN7217
Description	10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B	10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN	10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN
Reach Compliance Code	unknown	unknown	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT
Gain	24 dB	24 dB	24 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2
Maker	-	Spectrum Microwave	Spectrum Microwave
