B4QF-1019 Overview

Phase Shifter, 1MHz Min, 500MHz Max, 93deg Max

B4QF-1019 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum insertion loss	4.5 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	1 MHz
maximum phase shift	93 deg
RF/Microwave Device Types	PHASE SHIFTER
Maximum voltage standing wave ratio	1.26
Base Number Matches	1

Preview

Download Datasheet

View All

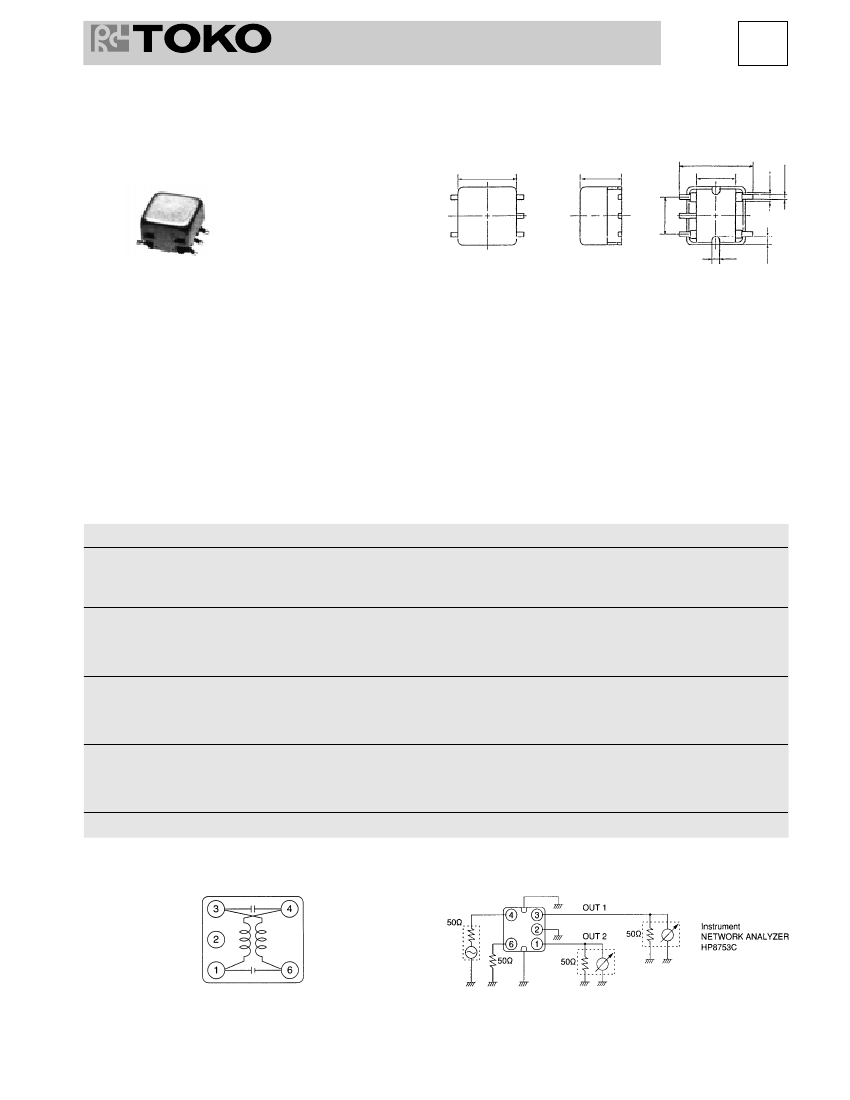

90° Phase Shifter

Meeting Your Needs

TYPE

B4QF

157

TYPE B4QF

Frequency Range:

1-500MHz

0.4

-0

4.8

3.5

6.0

3.5

3.2

0.8

Features

• Phase 90°±1~5°

• Insertion Loss: 4 ~ 4.5dB

• Amplitude Unbalance: 1 ~ 1.2 dB

• Impedance: 50Ω

Unit: mm

Tolerance:

±0.3

Applications

• Antenna networks

• Image rejection mixer systems

• I and Q networks

STANDARD PARTS SELECTION GUIDE

TYPE B4QF

TOKO

Part

Number

B4QF-1024

B4QF-1001

B4QF-1004

B4QF-1023

B4QF-1022

B4QF-1009

B4QF-1006

B4QF-1008

B4QF-1016

B4QF-1007

B4QF-1010

B4QF-1020

B4QF-1005

B4QF-1019

B4QF-1018

B4QF-1021

Center

Frequency

(Fo) MHz

1.14

10.7

28.35

36

71

90

98

110

118

140

150

215

240

403

430

455

Impedance

(Ω)

50

Phase

Max. Deg.

at Fo

90±4.0

90±2.0

90±3.0

Insertion

Loss Max.

dB at Fo

4.0

4.5

Amplitude

Unbalance

Max.

dB at Fo

1.0

1.5

Isolation

Typ.

(dB)

45

39

36

32

30

25

26

28

25

23

20

16

15

VSWR

Typ.

1.03

1.01

1.05

1.06

1.07

1.13

1.11

1.08

1.10

1.08

1.10

1.15

1.17

1.26

1.20

1.26

Pin Connections

Test circuit

1.847.297.0070

www.tokoam.com

1.800.PIK.TOKO

0.7
