Bias Tees
RLC Electronics’ Bias Tees offer excellent performance over the
frequency range of .1 to 18 GHz. These units are used to inject
a DC current or voltage into an RF circuit without affecting the
flow of RF through the main transmission path. Typical applica-
tions include biasing amplifiers, DC return, DC blocking, as well
as other various digital and analog uses.
Specifications
BT
-1-2
Model
Number
Frequency
Range (GHz)
Connectors
(as req’d)
BT-0115
BT-1025
BT-2050
BT-40124
BT-70180
1 -1.5
1 - 2.5
2 - 5.0
4 - 12.4
7 -18.0
IN/OUT
IN/OUT
IN/OUT
IN/OUT
IN/OUT
Impedance:
50 ohms
RF Power:
25 watts average
DC Current:
750 ma maximum
VSWR:
1.3:1 maximum
Insertion Loss:
.4dB maximum
Environment:
MIL-E-5400, Class 1A except
operating temperature -55°C to +85°C
To designate the bias tee desired use:
(1) 0115, 1025, etc. for model number
(2) (SMA) for connectors – add MM (male/male),
FF (female/female), MF (male/female), FM
(female/male)
Example: BT-0115-FF is a .1 – 1.5 GHz with female/female connectors Bias Tee

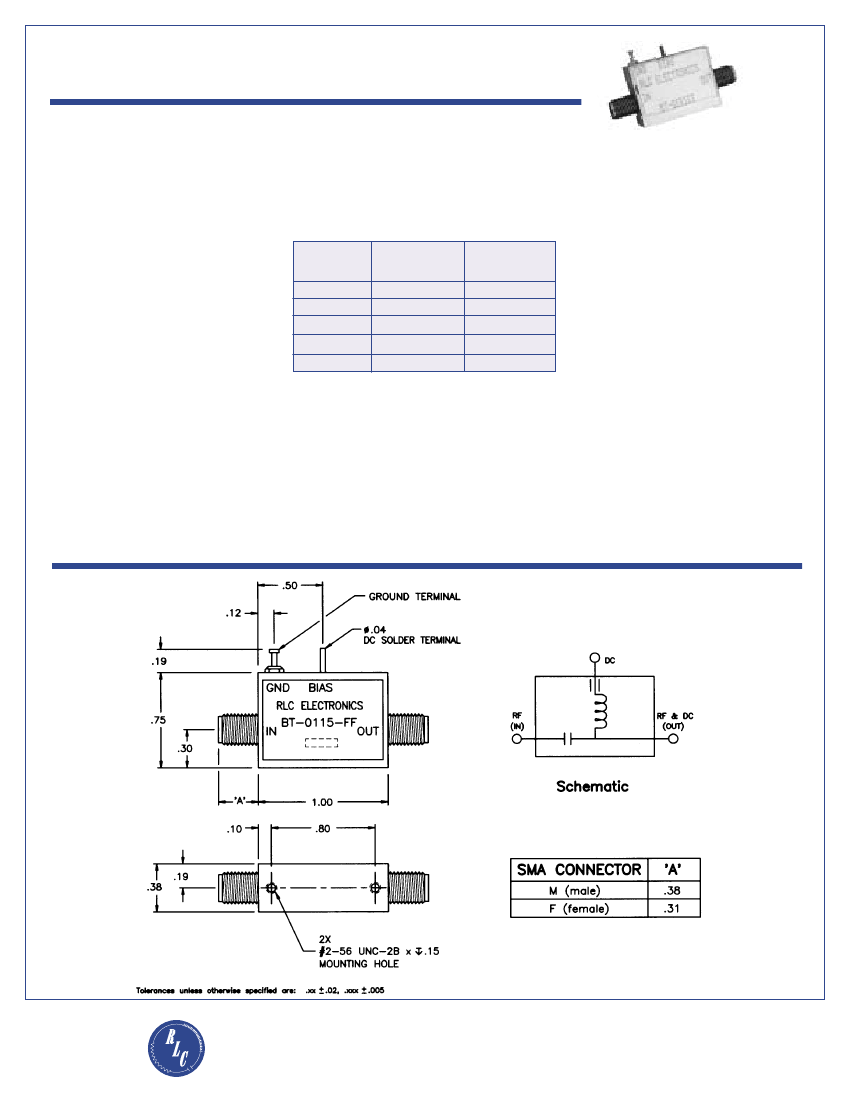

Outline Drawing
