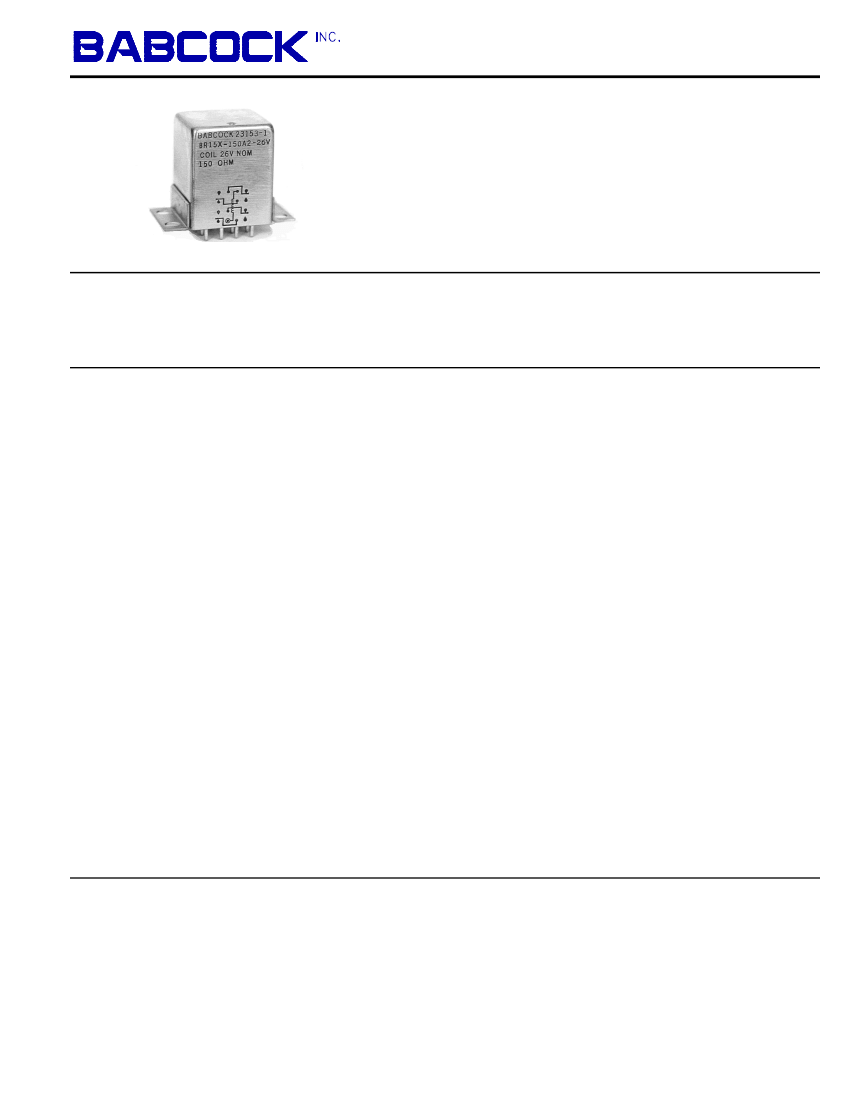

BR15
Crystal Can
Welded • 4PDT
Dry Circuit to 5 Amps,
7.5 Amps & 10 Amps
•
AVAILABLE WITH ARC SHIELDS…
for grounded case operation on 115 VAC loads, to 10 Amps
•
AVAILABLE WITH BIFILAR WOUND COIL…
for inductive spike suppression
•
SPACE ENVIRONMENT VERSIONS…
can be manufactured under extreme high-reliability controls
SPECIFICATIONS
GENERAL
Contact Arrangement
.......................... 4PDT (4 Form C)
Weight.........................................................
3.0 oz approx.
Designed to meet the requirements of MIL-PRF-39016.
PERFORMANCE
Contact Rating
(Note 1)
Resistive:
BR15X ...........10 Amps @ 28 VDC or 115V 400 Hz
(Case Ungrounded)
BR15W.........7.5 Amps @ 28 VDC or 115V 400 Hz
(Case Ungrounded)
BR15Y .............5 Amps @ 28 VDC or 115V 400 Hz
(Case Ungrounded)
Inductive:
BR15X .....................................3.5 Amps @ 28 VDC
BR15W....................................2.5 Amps @ 28 VDC
BR15Y .................................. 1.75 Amps @ 28 VDC
Life
...................................100,000 operations minimum
o
@ rated load, 125 C
Pull In Power:
BR15X ......................................................... 1 w approx.
BR15W .................................................500 mw approx.
BR15Y ..................................................400 mw approx.
Operate/Release Time
...............DC
Coil
AC Coil
BR15X ...................................7.5 ms max 20 ms max
BR15W ..................................8.5 ms max 20 ms max
BR15Y ...................................8.5 ms max 20 ms max
excluding bounce time at nominal coil voltage
Notes:
1.
For case grounded loads and other ratings, consult
the factory.
2.
For applications requiring other shock and vibration
levels, consult the factory.
Contact Bounce Time.......................................
2 ms max
@ rated contact load, 28 VDC
Contact Voltage Drop:
Before Life....................... 100 mv max @ rated current
6 or 28 VDC
After Life .......................... 200 mv max @ rated current
6 or 28 VDC
ENVIRONMENTAL
o
o
Temperature Range
............................... -65 C to +125 C
Vibration
(Note 2)............................... 0.4" DA 10 - 38 Hz,
20 G's 38 - 2,000 Hz
Shock (Operating)
(Note 2) ........................ 50 G's 11 ms
ELECTRICAL CHARACTERISTICS
Duty Cycle........................................................Continuous
o
Insulation Resistance..
10,000 megohms @ 500V 25 C
o
1,000 megohms @ 500V 125 C
Dielectric Strength:
Sea Level:
Contact to Case ................................... 1,250 VRMS
Contact to Coil ..................................... 1,250 VRMS
Coil to Case ......................................... 1,250 VRMS
Across Open Contacts:
BR15X............................................... 1,250 VRMS
BR15Y and W ................................... 1,000 VRMS
70,000 Feet
All points.................................................. 500 VRMS
3.
4.
For other ratings consult the factory.
Relay contacts which have switched high level
currents are no longer suitable for switching low
level loads.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W: 2000 Rev. 2
BR15

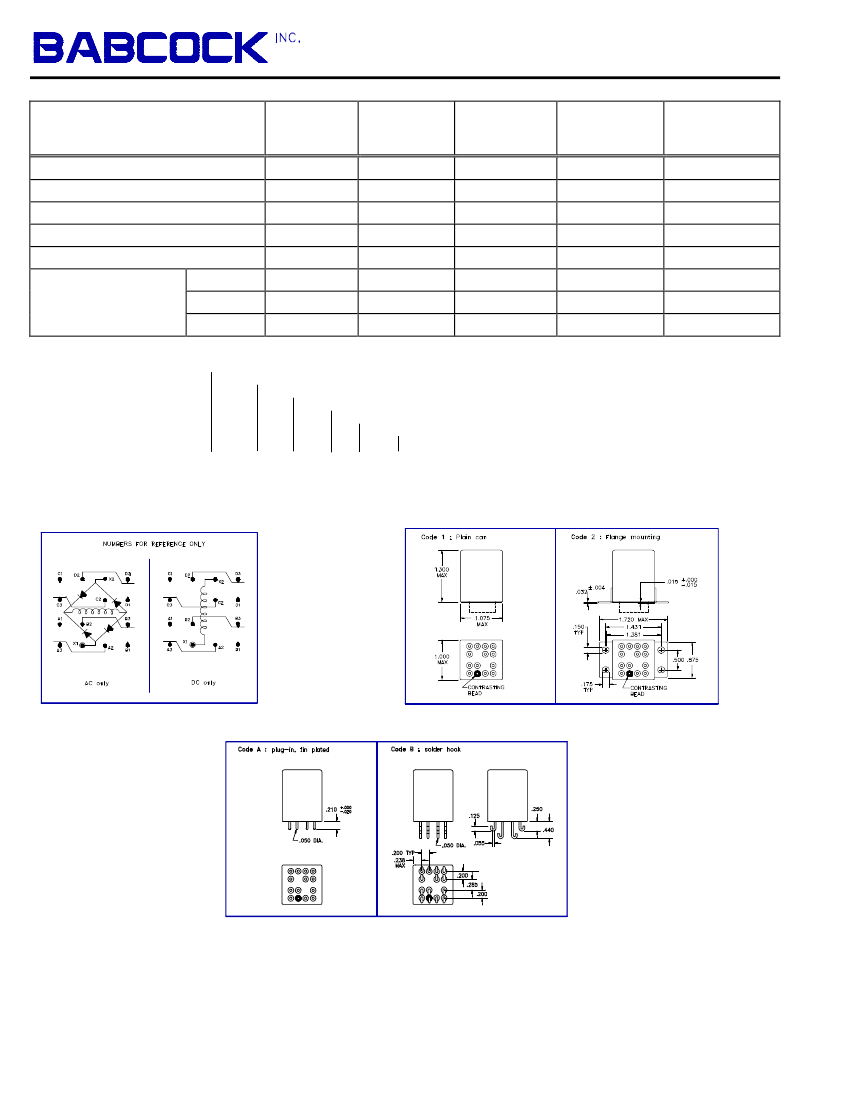

COIL DATA:
PART NUMBER
MODEL BR15W — 7.5 Amps (500 MW)
MODEL BR15X — 10 Amps (1 W)
MODEL BR15Y — 5 Amps (400 MW)
BR15W-16()()-6V
BR15X-8()()-6V
BR15Y-22()()-6V
BR15W-65()()-12V
BR15X-32()()-12V
BR15Y-85()()-12V
BR15W-300()()-26V
BR15X-150()()-26V
BR15Y-400()()-26V
BR15W-5.5K()()-115V
BR15X-2750()()-115V
BR15Y-7K()()-115V
BR15W-AC()()-115V
BR15X-AC()()-115V
BR15Y-AC()()-115V
NOMINAL COIL VOLTAGE
MAXIMUM COIL VOLTAGE
PULL IN VOLTAGE (MAX at +125 C)
PULL IN VOLTAGE (MAX)
DROP OUT VOLTAGE (MIN)
BR15W
COIL RESISTANCE
o
± 10% at 25 C
BR15X
BR15Y
o
6 VDC
7.3 VDC
4.4 VDC
3 VDC
0.3 VDC
16 OHMS
8 OHMS
22 OHMS
12 VDC
14.8 VDC
8.4 VDC
6 VDC
0.6 VDC
65 OHMS
32 OHMS
85 OHMS
26 VDC
32 VDC
18 VDC
13 VDC
1.3 VDC
300 OHMS
150 OHMS
400 OHMS
115 VDC
127 VDC
79 VDC
57.5 VDC
5.7 VDC
5.5K OHMS
2750 OHMS
7K OHMS
115 VAC
127 VAC
79 VAC
57.5 VAC
5.7 VAC
AC
AC
AC
-------------------------------------------------------------------------- Relay Type
------------------------------------------------------------- Contact Rating
--------------------------------------------------- Nominal coil resistance
---------------------------------------- Terminal style
-------------------------------- Mounting Type
--------------------- Nominal coil voltage
BR15
SCHEMATIC
TERMINAL VIEW
X - 150
A
1 - 26V
MOUNTING CODE
TERMINAL STYLES
GENERAL NOTES
• Unless otherwise specified, all tests made at nominal coil
o
voltages, @ 25 C.
• For special coil variations, switching configurations, ter-
minals styles and mounting types, consult the factory.
• Unless otherwise specified, tolerances on decimal
dimensions are ± .010".
• Specifications contained herein are subject to change
without notice.
W: 2000 Rev. 2
