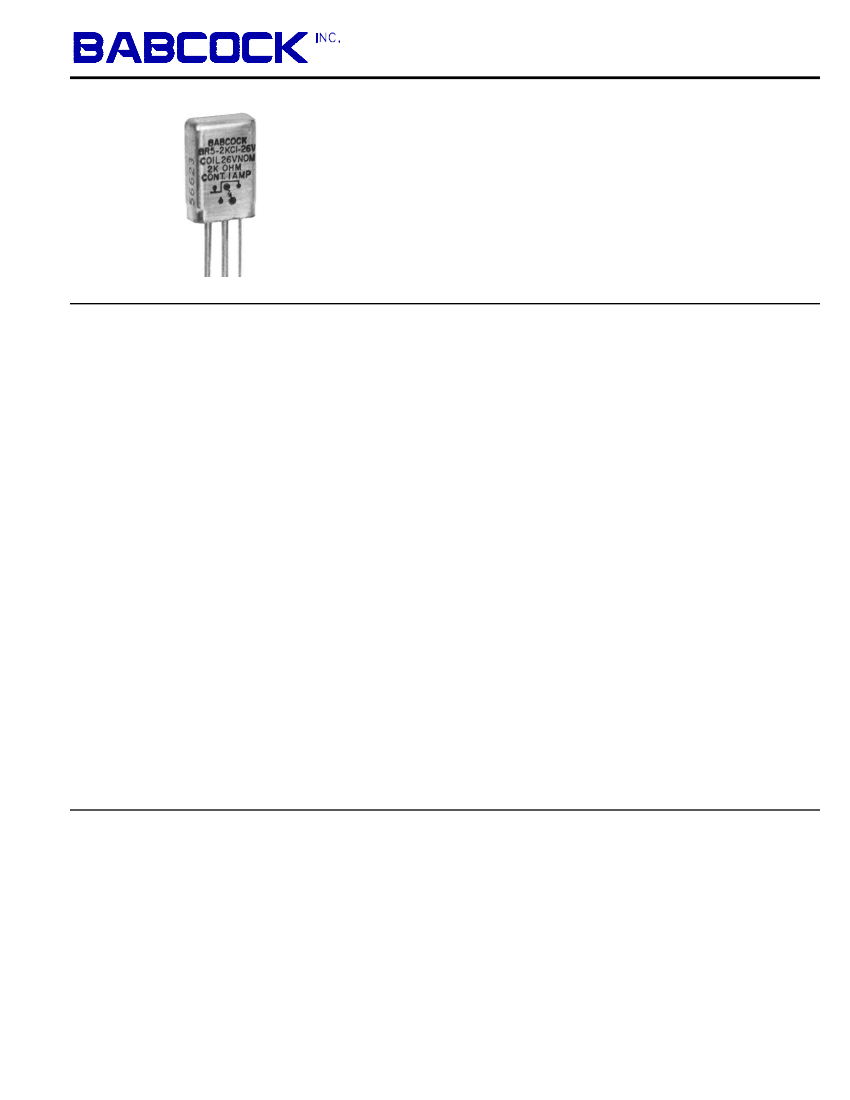

BR5
Transistor Can
SPDT
Dry Circuit to 1 Amp
SPECIFICATIONS
GENERAL
Contact Arrangement
.......................... SPDT (1 Form C)
Weight.........................................................
0.1 oz approx.
Designed to meet the requirements of MIL-PRF-39016.
PERFORMANCE
Contact Rating
(Note 1)
Resistive .......................................... 1 Amp @ 28 VDC
Low Level ............................ 10-50 µA @ 10-50 mv DC
or peak AC (Note 4)
Life
...................................100,000 operations minimum
o
@ 1 amp load, 125 C
Pull In Power
............................................100 mw approx.
Operate/Release Time
.................... 4 ms max, excluding
bounce time at nominal coil voltage
Contact Bounce Time......................
2 ms max @ 1 Amp
28 VDC contact load
Contact Resistance
Before Life......................... 0.050 Ohms max @ 1 Amp
and 6 VDC
After Life ............................ 0.100 Ohms max @ 1 Amp
and 6 VDC
ENVIRONMENTAL
o
o
Temperature Range
............................... -65 C to +125 C
Vibration
(Note 2)............................... 0.4" DA 10 - 38 Hz,
20 G's 38 - 2,000 Hz
Shock (Operating)
(Note 2) ........................ 50 G's 11 ms
ELECTRICAL CHARACTERISTICS
Duty Cycle........................................................Continuous
Insulation Resistance
o
10,000 megohms @ 500V 25 C
o
1,000 megohms @ 500V 125 C
Dielectric Strength:
Sea Level:
Contact to Case ...................................... 500 VRMS
Contact to Coil ........................................ 500 VRMS
Coil to Case ............................................ 500 VRMS
Across Open Contacts ........................... 300 VRMS
70,000 Feet
All points.................................................. 250 VRMS
Notes:
1. For case grounded loads and other ratings, consult the
factory.
2.
For applications requiring other shock and vibration
levels, consult the factory.
3.
4.
For other ratings consult the factory.
Relay contacts which have switched high level currents
are no longer suitable for switching low level loads.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W:2000, Rev. 2
BR5
COIL DATA:
MODEL BR5 PART NUMBER
NOMINAL COIL VOLTAGE
MAXIMUM COIL VOLTAGE
PULL IN VOLTAGE (MAX @ +125 C)
PULL IN VOLTAGE (MAX)
DROP OUT VOLTAGE (MIN)
COIL RESISTANCE ± 10% @ 25 C
o
o
BR5-500()()-12V
12 VDC
14.8 VDC
9.5 VDC
6.7 VDC
0.67 VDC
500 OHMS
BR5-1K()()-18V
18 VDC
22 VDC
14 VDC
9.5 VDC
0.95 VDC
1K OHMS
BR5-2K()()-26V
26 VDC
32 VDC
18 VDC
13 VDC
1.3 VDC
2K OHMS
-------------------------------------------------------------------- Relay Type
------------------------------------------------- Nominal coil resistance
-------------------------------------- Terminal style
------------------------------- Mounting Type
-------------------- Nominal coil voltage
BR5

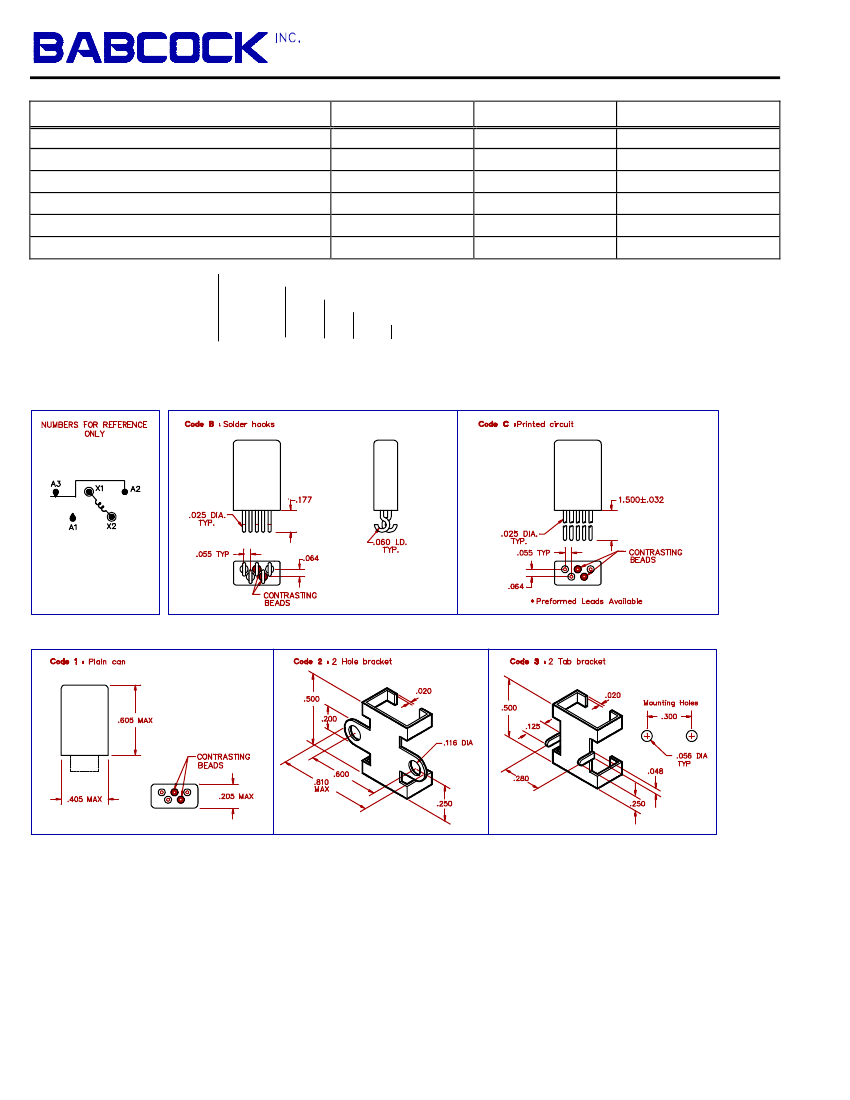

SCHEMATIC
TERMINAL VIEW
-
2K
B
1 - 26V
TERMINAL STYLES
MOUNTING CODES
GENERAL NOTES
• Unless otherwise specified, all tests made at nominal
o
coil voltages, @ 25 C.
• For special coil variations, switching configurations,
terminals styles and mounting types, consult the factory.
• Unless otherwise specified, tolerances on decimal
dimensions are ± .010".
• Specifications contained herein are subject to change
without notice.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W:2000, Rev. 2
