BR25S256NUX-WTR: DescriptionEEPROM, 8KX8, Serial, CMOS, PDSO8, 2 X 3 MM, ROHS COMPLAINT, VSON-8; Categorystorage storage; File Size609KB，19 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BR25S256NUX-WTR Overview

EEPROM, 8KX8, Serial, CMOS, PDSO8, 2 X 3 MM, ROHS COMPLAINT, VSON-8

BR25S256NUX-WTR Parametric

Parameter Name	Attribute value
Parts packaging code	SON
package instruction	2 X 3 MM, ROHS COMPLAINT, VSON-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum clock frequency (fCLK)	10 MHz
JESD-30 code	R-PDSO-G8
length	3 mm
memory density	65536 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	VSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	0.6 mm
Serial bus type	SPI
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.7 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	2 mm
Base Number Matches	1

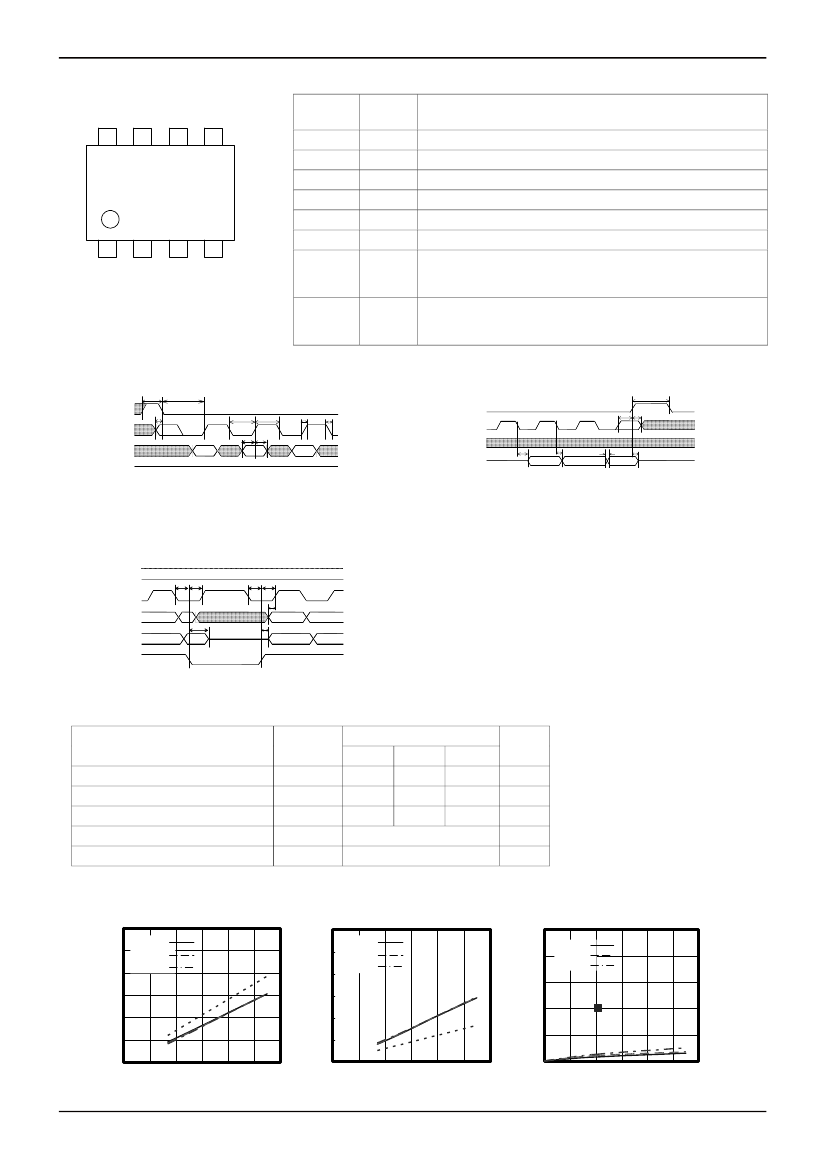

Preview

Download Datasheet

View All

High Reliability Series Serial EEPROMs

SPI BUS

BR25□□□□family

BR25S

□□□

Series

●Description

BR25S

□□□

series is a serial EEPROM of SPI BUS interface method.

●Features

1) High speed clock action up to 20MHz (Max.)

2) Wait function by HOLDB terminal

3) Part or whole of memory arrays settable as read only memory area by program

4) 1.7½5.5V single power source action most suitable for battery use

5) Page write mode useful for initial value write at factory shipment

6) Highly reliable connection by Au pad and Au wire

7) For SPI bus interface (CPOL, CPHA) = (0, 0), (1, 1)

8) Auto erase and auto end function at data rewrite

9) Low current consumption

At write action (5V)

: 1.5mA (Typ.)

At read action (5V)

: 1.0mA (Typ.)

At standby action (5V)

: 0.1μA (Typ.)

10) Address auto increment function at read action

11) Write mistake prevention function

Write prohibition at power on

Write prohibition by command code (WRDI)

Write prohibition by WPB pin

Write prohibition block setting by status registers (BP1, BP0)

Write mistake prevention function at low voltage

12) SOP8/SOP-J8/SSOP-B8/TSSOP-B8/MSOP8/TSSOP-B8J/VSON008X2030 Package

13) Data at shipment Memory array: FFh, status register WPEN, BP1, BP0 : 0

14) Data kept for 40 years

15) Data rewrite up to 1,000,000 times

No.10001EBT08

●Page

Write

Page

Part Number

32Byte

BR25S320-W

BR25S640-W

64Byte

BR25S128-W

BR25S256-W

●BR25S

□□□

series

Capacity Bit format

32Kbit

64Kbit

128Kbit

256Kbit

4K×8

8K×8

16K×8

32K×8

Power source

voltage

1.7V½5.5V

SOP8

●

SOP-J8

●

SSOP-B8 TSSOP-B8 MSOP8

●

TSSOP-B8J

●

VSON008

X2030

●

www.rohm.com

1/18

2010.12 - Rev.B
