BR6212 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR6212

BR6212: Description10 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size200KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR6212 Overview

10 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B

BR6212 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	8.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

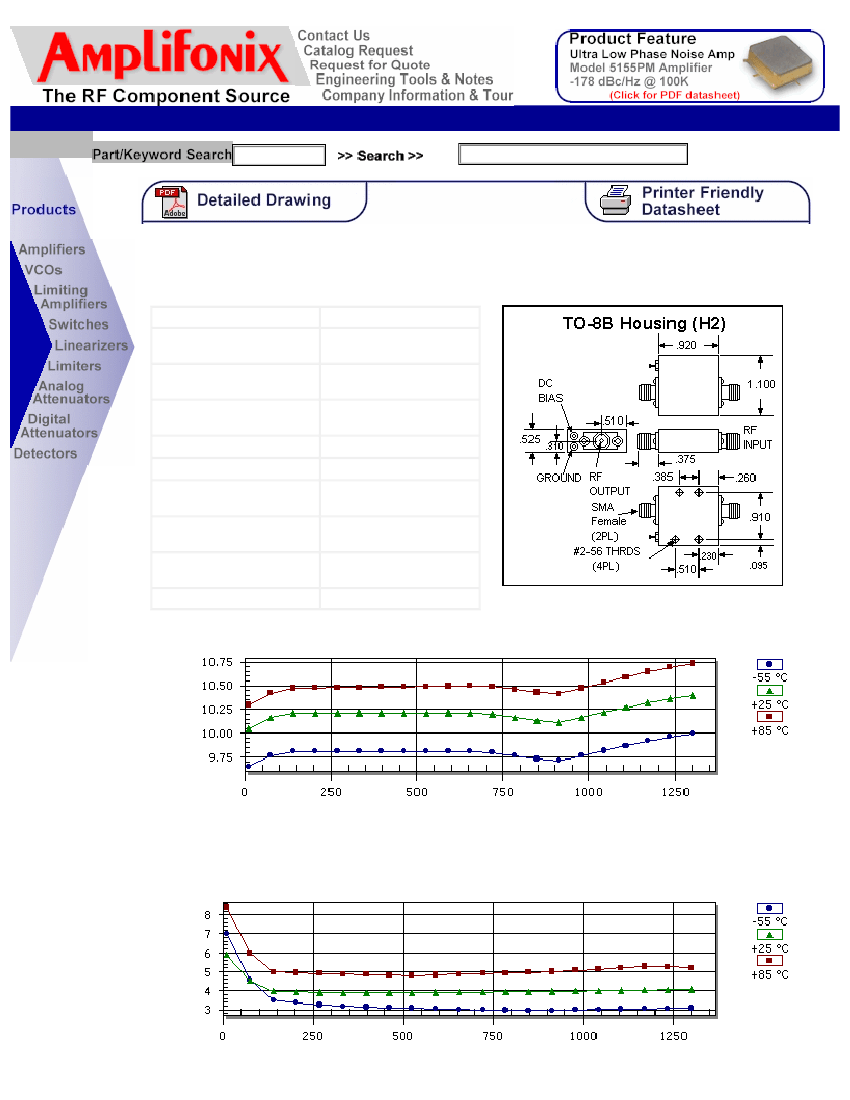

Preview

Download Datasheet

View All

Cross Reference Guide

BR6212 / SBR6212*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 1300.0 MHz

10.0 dB Typical

8.5 dB Min

6.0 dB Typical

8.5 dB Max

22.5 dBm Typical

19.5 dBm Min

34.0 dBm Typical

42.0 dBm Typical

1.6/2.0 Input Typ/Max

1.4/2.0 Output Typ/Max

-16.0 dB Typical

-15.0 dB Min

15.0 Volts

92.0 mA

-55.0 - 85.0 °C

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR6212 Related Products

	BR6212	SBR6212
Description	10 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B	10 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B
Reach Compliance Code	unknown	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	8.5 dB	8.5 dB
Maximum input power (CW)	18 dBm	18 dBm
Maximum operating frequency	1300 MHz	1300 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
